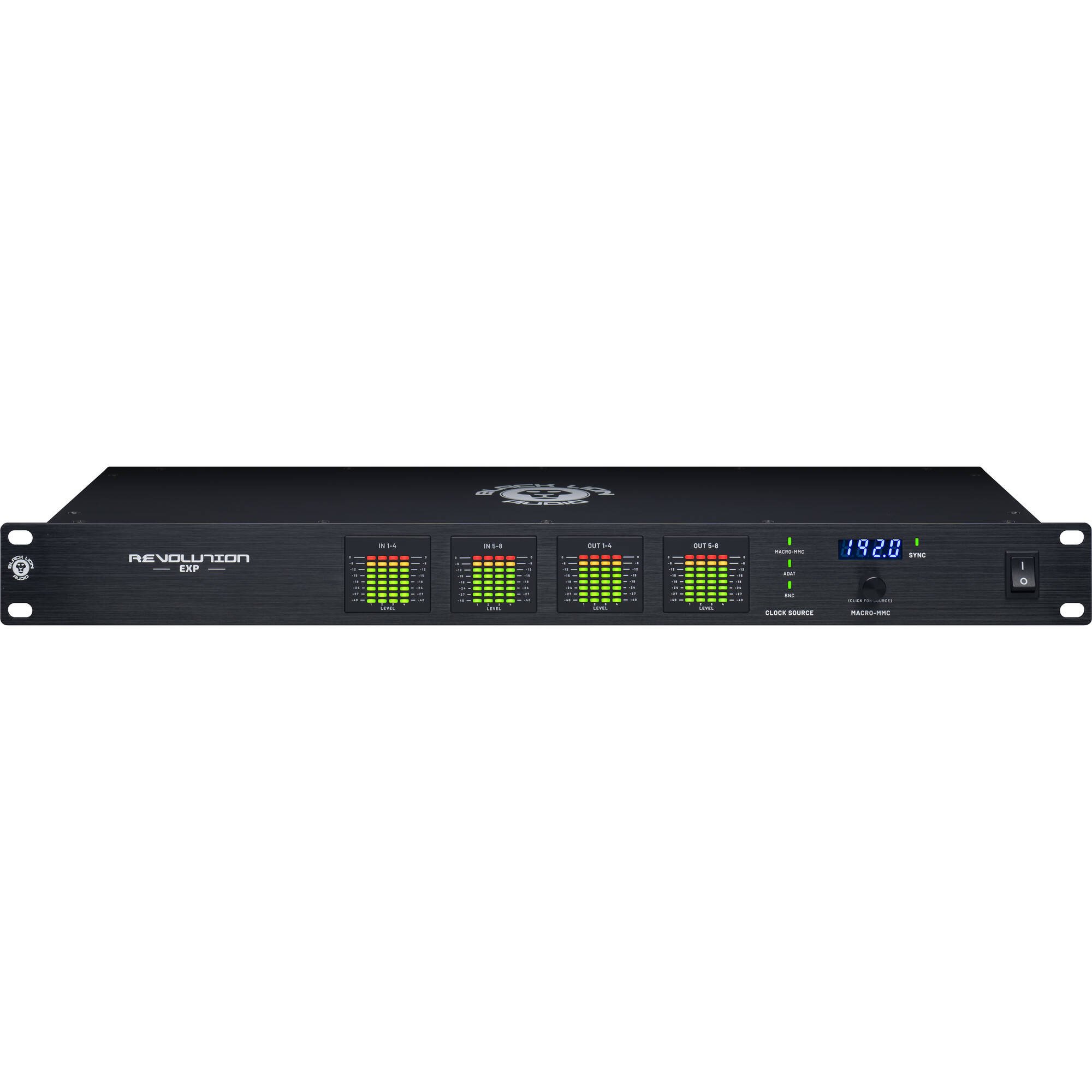

Black Lion Audio Revolution EXP 8x8 AD/DA Converter with Wordclock and ADAT

21.600.000,00 ₫

SKU

REVOLUTION-EXP

Designed to expand both your audio interface channel count and studio creativity, the Revolution EXP from Black Lion Audio is a rack-mountable 8x8 AD/DA converter that adds up to eight channels to your interface I/O. With support for sample rates from 44.1 to 192 kHz, native sample rate conversion for all digital I/O, and three clock source options (internal, ADAT, and BNC), the Revolution EXP is an ideal add-on to any studio seeking greater control over digital signal flow and sample rates.

TỔNG QUAN

TÍNH NĂNG

THÔNG SỐ KỸ THUẬT

KHÁCH HÀNG NHẬN XÉT

The Revolution EXP includes eight analog 1/4" TRS inputs and outputs, with a selectable pad on each input that toggles between +4 dB (pro-level devices) and -10 dBV (consumer-level devices). You also get BNC wordclock input and output for syncing your devices to the Revolution EXP or vice-versa. Four multi-segment LED meters let you keep an eye on your analog signal levels, while a single LCD screen keeps you informed of your current sample rate. The Revolution EXP includes a DC power cord.

Typical Usage Scenarios

The Revolution EXP can be used for various applications in the studio. You can set up four sets of stereo sends and returns for external reverbs EQs, and other processors, or create four sets of stereo headphone sends for monitoring applications.

You can route four mono stems and two stereo stems to an analog summing mixer via your Revolution EXP analog outputs, and use two stereo inputs to return from the summing mixer. You can even add eight mono speakers via the Revolution EXP outputs and create a 5.1.2 spatial audio mix environment. These examples just scratch the surface.

Black Lion Audio Mixer

With driver 5.70, Revolution interfaces now benefit from the addition of the Black Lion Audio Mixer, which offers low-latency routing with no CPU-eating DSP—ideal for direct monitoring applications. The Black Lion Audio Mixer features Simple and Advanced modes, giving you quick and easy access to your levels or complex routing options. The Mixer also lets you tap into the Revolution interfaces' powerful loopback feature, letting you route audio from one app to another. Thanks to the BLA mixer, you'll be able to:

Send DAW audio and talkback mic to Discord for a remote session
Live stream a digital DJ set from your DAW
Sample audio from your browser to your DAW
Record or stream a song to your phone with a backing track that is playing on your computer (Revolution 6x6 only)
Live streaming a guitar performance from your phone (Revolution 6x6 only)

Multiple ADAT Ports

The number of digital audio channels that can be transmitted or received by the ADAT I/O is dependent upon the selected sampling rate. Higher sampling rates consume more bandwidth, reducing channel count.

When using one ADAT port:

44.1 kHz: 8 inputs and 8 outputs
48 kHz: 8 inputs and 8 outputs
88.2 kHz: 4 inputs and 4 outputs
96 kHz: 4 inputs and 4 outputs
176.4 kHz: 2 inputs and 2 outputs
192 kHz: 2 inputs and 2 outputs

When using two ADAT ports:

44.1 kHz: 8 inputs and 8 outputs
48 kHz: 8 inputs and 8 outputs
88.2 kHz: 8 inputs and 8 outputs
96 kHz: 8 inputs and 8 outputs
176.4 kHz: 4 inputs and 4 outputs
192 kHz: 4 inputs and 4 outputs

Expansion Module for Audio Interfaces
44.1 to 192 kHz, 8 to 2 Channels
Dual TOSLINK ADAT Inputs and Outputs
BNC Wordclock I/O
Sample Rate Conversion
Eight 1/4" TRS Inputs and Outputs
Selectable -10 dBV Pad on Analog Inputs
Four Multi-Segment LED Meters
Clock Source Selection
Includes Power Cable

Key Specs

Form Factor	Rackmount
Converter Type	AD/DA Converter
Number of Channels	8x A/D (at 48 kHz) 4x A/D (at 96 kHz) 4x A/D (at 192 kHz) 8x D/A (at 48 kHz) 4x D/A (at 96 kHz) 4x D/A (at 192 kHz)
Number of Microphone Inputs	No
Analog Audio I/O	8x 1/4" TRS Line Input 8x 1/4" TRS Line Output
Digital Audio I/O	2x TOSLINK Optical ADAT Input (S/MUX Support) 2x TOSLINK Optical ADAT Output (S/MUX Support)

General

Form Factor	Rackmount
Converter Type	AD/DA Converter
Number of Channels	8x A/D (at 48 kHz) 4x A/D (at 96 kHz) 4x A/D (at 192 kHz) 8x D/A (at 48 kHz) 4x D/A (at 96 kHz) 4x D/A (at 192 kHz)
Conversion Formats	ADAT
Display	4x Multi-Segment LED Meter 1x Monochrome LCD
Number of Microphone Inputs	No

Connectivity

Analog Audio I/O	8x 1/4" TRS Line Input 8x 1/4" TRS Line Output
Phantom Power	No
Digital Audio I/O	2x TOSLINK Optical ADAT Input (S/MUX Support) 2x TOSLINK Optical ADAT Output (S/MUX Support)
Host Connection	No
USB (Non-Host)	1x USB-C (Update)
Sync I/O	1x BNC Word Clock Input 1x BNC Word Clock Output
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Wireless	No
