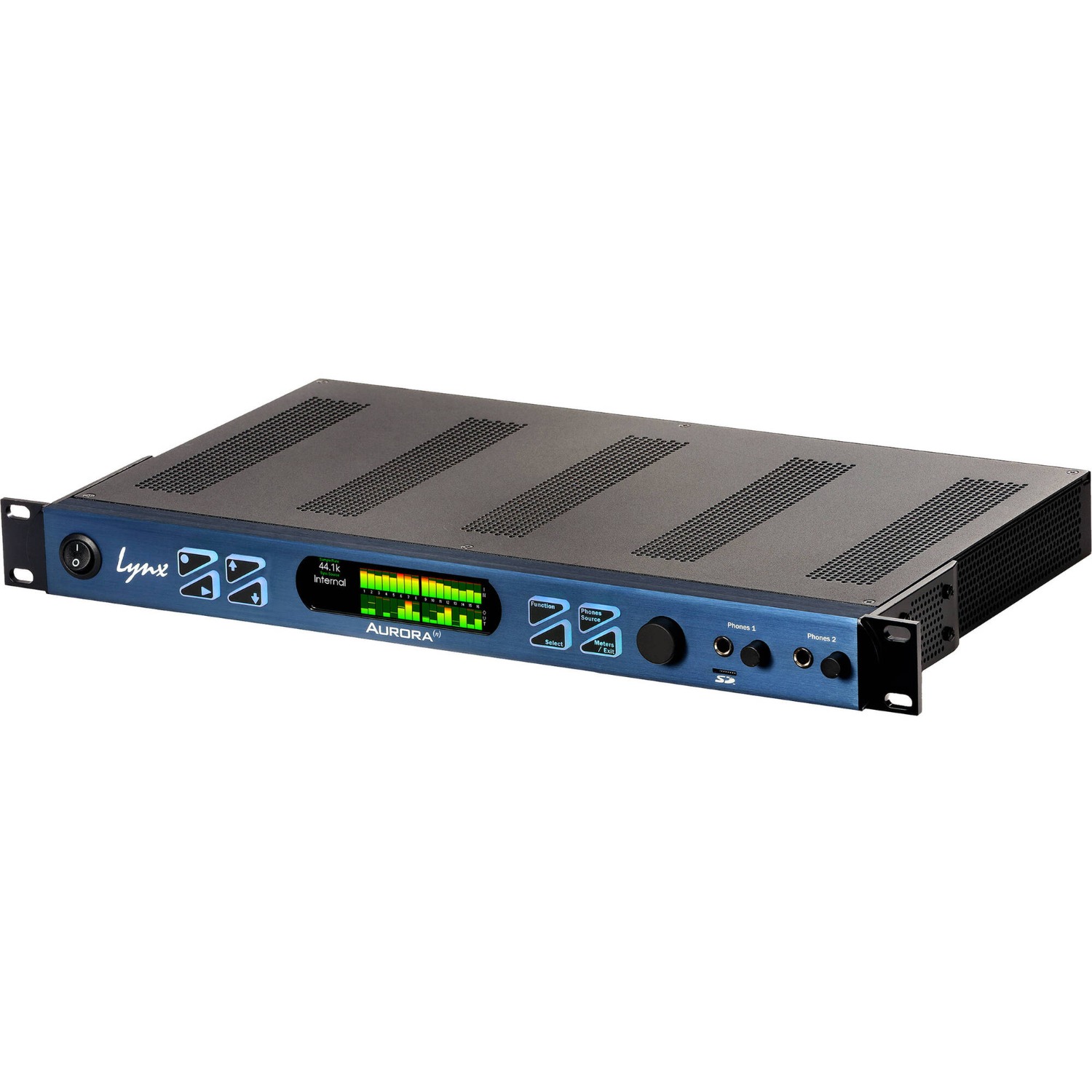

Lynx Aurora (n) 16-HD2 16-channel AD/DA Converter with HDX Interface
The Lynx Studio Technology Aurora(n) 16 HD2 is preconfigured with 16 analog ins and 16 analog outs on four DB-25 connectors. It is also equipped with a Lynx LT-HD2 Pro Tools HD & HDX interface card that emulates the interface characteristics of the Avid HD I/O converter, allowing seamless operation with Avid systems including HDX and HD Native.
The Lynx Studio Technology Aurora(n) 16 HD2 is preconfigured with 16 analog ins and 16 analog outs on four DB-25 connectors. It is also equipped with a Lynx LT-HD2 Pro Tools HD & HDX interface card that emulates the interface characteristics of the Avid HD I/O converter, allowing seamless operation with Avid systems including HDX and HD Native.
The Aurora(n) 16 HD2 is a mastering-grade 16-in / 16-out AD/DA converter which supports up to 24-bit / 192 kHz conversion. Design and technology borrowed from the development of Hilo converters is used to significantly improve specifications and transparency over previous models, while attaining stunning Hilo-like performance. Ideal for audio engineers and producers who demand the most pristine recordings and mixes, the 16 HD2 delivers coloration- and degradation-free signal for mission-critical audio applications in studios, mastering facilities, remote recordings, broadcast and live performance facilities.
The unit features an onboard microSD player/recorder capable of up to 32 channels of direct recording and playback, ideal when working in the field. Two headphone outputs with independent volume control let you monitor your sound with audiophile-grade precision, while a bright TFT LCD display gives you immediate access to all levels and functions right from the front panel.
- The LT-HD2 allows the Aurora(n) to be used in all current Pro Tools HD systems.
- Connected via mini-Digilink cables (available separately) to HD Core, Accel Core, HDX, or Native cards, Pro Tools recognizes the Aurora(n) converter and controls all input and output functions, clocking, routing, and other settings.
- The LT-HD2 features one Primary and one Expansion mini-DigiLink port. Aurora supports full channel count at sample rates up to 192 kHz.
- Pro Tools users can benefit from Lynx’s proprietary SynchroLock 2 word clock technology for very low jitter and low distortion of digital signals.
- The analog signal path for each channel has been designed as a self-contained and shielded circuit. Each channel pair has its own dedicated conversion device. This offers many sonic advantages like significantly reducing crosstalk and distortion, while increasing dynamic range and performance.
- Proprietary, SynchroLock 2 high-performance sample-clock technology provides a whopping 300,000:1 reduction in jitter, 5-second lock time, and absolute accuracy.
- Word clock I/Os provide one input and three outputs on BNC connectors.
- Start with eight, sixteen, or twenty-four channels and later add additional groups of eight channels for up to thirty two total.
Add Modules:
- Digital I/Os, mic preamps; more are being designed now for future release.
Add Connectivity Options:
- Dante, Thunderbolt 3, or USB via LSlot cards (available separately).
- Mastering-quality, 16-in / 16-out AD/DA conversion at up to 24-bit / 192 kHz.
- 16 analog ins and 16 analog outs on four DB-25 connectors.
- Preinstalled Lynx LT-HD2 Pro Tools HD & HDX interface card.
- Wordclock I/O: one input and three outputs on BNC connectors.
- Onboard microSD player/recorder capable of up to 32 channels of direct recording and playback.
- Two audiophile-grade headphone outputs with independent volume control.
- 480 X 128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle.
- Universal power supply built in, no wall warts.
- 1 RU rack-space design with no fan provides silent operation, so you can keep unit in the recording room, with no need for isolation from distracting fan noise.
- Full Windows and OSX compatibility.
- Designed and built in Southern California, USA.
- 16-In / 16-Out AD/DA, 24-Bit / 192 kHz
- Lynx LT-HD2 Pro Tools HD/HDX Interface
- 1-In / 3-Out SynchroLock 2 Word Clock
- Hilo Converter Technology (HCT)
- Onboard 32-Channel microSD Recorder
- Two Audiophile-Grade Headphone Outputs
- Future-Proof LSlot Design
- Road-Ready Rackmount Reinforced Chassis
- Full Windows and Mac Compatibility
- Channels:16
- A to D:Yes
- D to A:Yes
- Sample Rate:Up to 192kHz
- Bit Depth:24-bit
- Analog Inputs:2 x DB-25
- Analog Outputs:2 x DB-25, 2 x 1/4" (headphones)
- Data I/O:2 x DigiLink (primary, expansion)
- Clock Inputs:1 x Word Clock
- Clock Outputs:3 x Word Clock
- Other I/O:Micro SD card slot
- Rack Spaces:1U
- Power Source:Standard IEC AC cable
- Height:1.75"
- Depth:10"
- Width:19"
- Weight:8.2 lbs.
- Manufacturer Part Number:LYN-AN16-HD2
