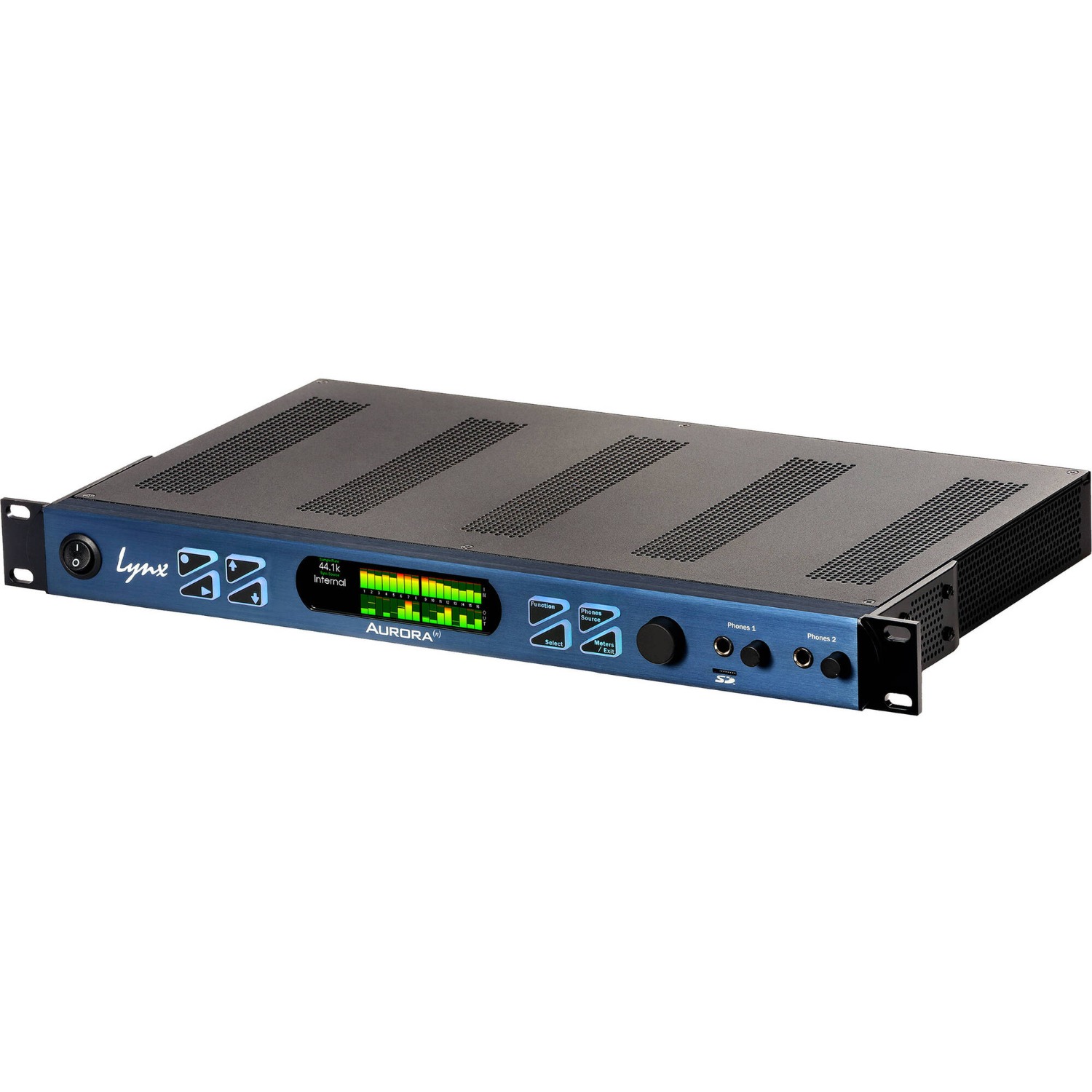

Lynx Aurora (n) 16-TB3 16-channel Thunderbolt 3 AD/DA Converter with AES

• The included LM-DIG module provides 16 channels in and 16 channels out of 24-bit AES/EBU, with bit-perfect transmission at sample rates of up to 192 kHz.
• AES/EBU is a world standard for digital interfacing, and the addition of the LM-DIG to the Aurora⁽ⁿ⁾ means that studios and engineers can quickly and easily integrate its superior audio quality and precise conversion/routing tools with almost any professional-quality recording system, control surface, or other tools that use the AES/EBU standard.

• The LT-TB3 card provides digital input and output to Windows and Mac computers using Thunderbolt 3 ports.
• The two-port card supports daisy-chaining Aurora⁽ⁿ⁾ converters (up to six total) with certified Thunderbolt devices, plus a display on both Mac and Windows computers.
• Thunderbolt 3 can support up to a 40 Gb/s bidirectional data rate and is primarily designed to handle the bandwidth demands of multichannel audio and 4K video.

• The analog signal path for each channel has been designed as a self-contained and shielded circuit. Each channel pair has its own dedicated conversion device. This offers many sonic advantages like significantly reducing crosstalk and distortion, while increasing dynamic range and performance.

• Proprietary, SynchroLock 2 high-performance sample-clock technology provides a whopping 300,000:1 reduction in jitter, 5-second lock time, and absolute accuracy.
• Wordclock I/Os provides one input and three outputs on BNC connectors.

• Start with eight, sixteen, or twenty-four channels and later add additional groups of eight channels for up to thirty two total.

Add Modules:

• Additional modules are available including the LM-PRE4 4-channel preamp and the DB-ADAT add-on, which provides 16 channels of ADAT digital I/O.

Add Connectivity Options:

• Dante, ProTools | HD, or USB via LSlot cards (available separately).

• Mastering-quality, 16-in / 16-out AD/DA conversion at up to 24-bit / 192 kHz.
• 16 analog inputs and 16 analog outputs on DB-25 connectors.
• Preinstalled LM-DIG module for 16 channels of digital I/O via AES.
• Preinstalled Lynx LT-TB3, two-port Thunderbolt 3 LSlot interface card.
• Wordclock I/O: one input and three outputs on BNC connectors.
• Onboard microSD player/recorder capable of up to 32 channels of direct recording and playback.
• Two audiophile-grade headphone outputs with independent volume control.
• 480x128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle.
• Universal power supply built in, no wall-warts.
• 1 RU rack-space design with no fan provides silent operation, so you can keep unit in the recording room, with no need for isolation from distracting fan noise.
• Full Windows and OSX compatibility.
• Designed and built in Southern California, USA.
