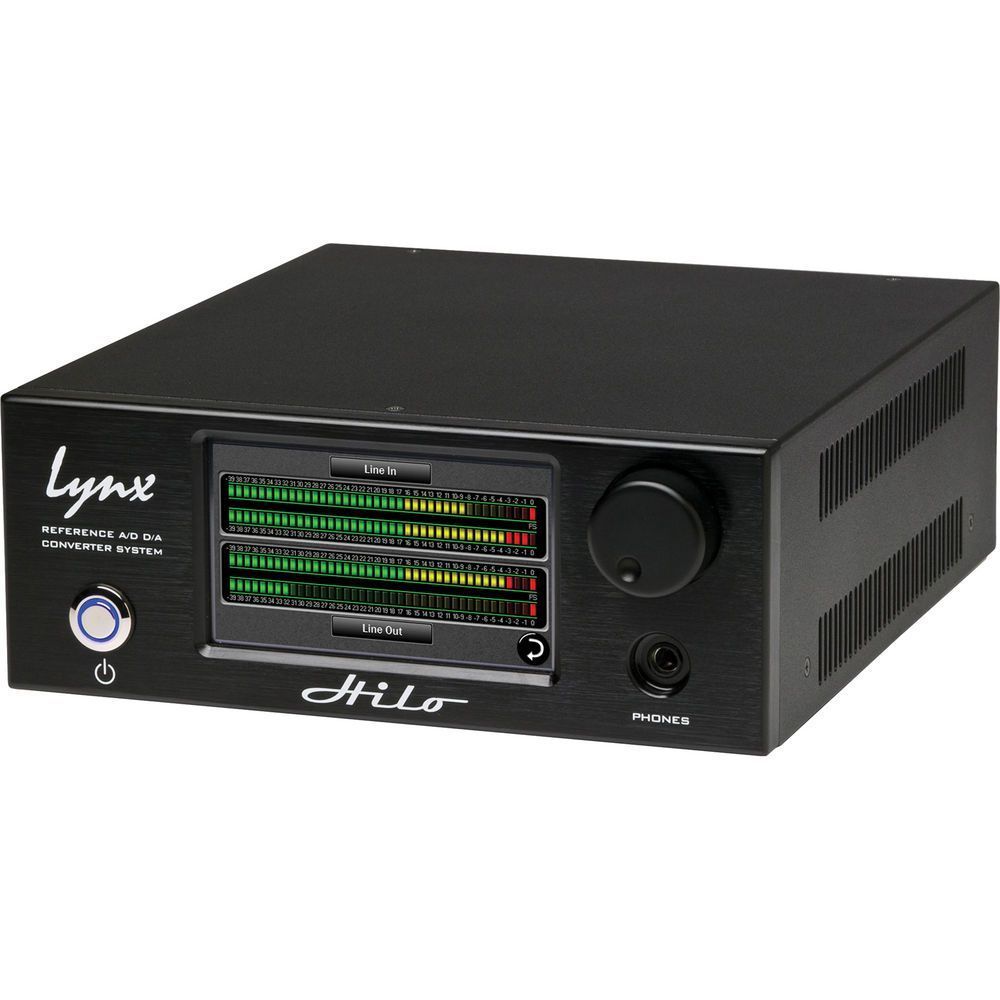

Lynx Studio Hilo Reference Converter USB - Black
Liên hệ
The Hilo Reference A/D D/A Converter System from Lynx Studio Technology offers two channels of mastering-quality 24-bit/192 kHz analog to digital conversion, up to six channels of digital to analog conversion, a secondary monitor output, and a world-class independent headphone amplifier, in a compact, half-rack size.
The Hilo Reference A/D D/A Converter System from Lynx Studio Technology offers two channels of mastering-quality 24-bit/192 kHz analog to digital conversion, up to six channels of digital to analog conversion, a secondary monitor output, and a world-class independent headphone amplifier, in a compact, half-rack size. Lightweight (at 6.75 lb) and portable, it provides audio professionals and audiophiles alike with pristine, open, and transparent audio quality, whether working in the studio, in the field, or as part of a home theater setup.
Hilo comes with a preinstalled LT-USB USB interface card and offers a multitude of flexible digital I/O options. These include stereo AES/EBU, stereo coaxial S/PDIF, stereo optical S/PDIF (switchable to 8-channel ADAT lightpipe), and 16 channels of USB 2.0 communication to a host computer. Any digital input can be routed to any analog or digital output, and all digital outputs can have unique combinations of source inputs via the onboard 32-channel digital mixer.
The unit's front panel is elegant in its simplicity and features a color LCD touchscreen display which allows you to quickly and intuitively set parameters for basic settings, routing functions, clocking, level settings, and more. It also offers a variety of accurate metering and measurement tools such as bar-graph metering of all inputs/outputs, old-style VU meters, and a 30-band Real Time Spectrum Analyzer (RTA) screen.
Hilo can operate as a standalone converter/mixer, and can be powered by standard 110-230 VAC power or remotely with 9-18 VDC, using standard video battery packs or car cigarette-lighter outlets.
Full-featured, state-of-the-art A/D D/A reference converter
Supports two channels of mastering-quality A/D conversion at up to 24-bit/192 kHz, and six channels of D/A conversion
Preinstalled LT-USB USB 2.0 interface
Redesigned analog stages and converter topology lower distortion and noise while maintaining transparency for A/D and D/A conversion
SynchroLock word clock for stable word clock and maximum jitter rejection
12 total inputs, 16 total outputs, plus 32 channels possible via LSlot port
2 x balanced analog line inputs with 8 trim level settings
Flexible digital I/O section offers stereo AES/EBU, stereo coaxial S/PDIF, stereo optical S/PDIF (switchable to 8-channel ADAT lightpipe), and 16 channels of USB 2.0 communication to a host computer
Line out, monitor out, and headphone output have their own dedicated D/A converters and independent input/routing selection
Color LCD display with backlit touchscreen, bar graph metering of all inputs/outputs, large VU-style meters – allows setting of all sample rates, sync settings, signal routing, meter options, future functions
Stereo 30-band Real Time Spectrum Analyzer (RTA) screen
Onboard, low-latency 32-channel digital mixer lets you route and combine any input to any output
Sample rate conversion
DSD playback
LSlot expansion bay allows for a wide array of current connectivity options to include USB 2.0, Thunderbolt, Dante, and future formats
Can operate with no expansion card installed, as a strictly standalone AD/DA converter / format converter / router / sample rate converter, and more
Dual power option, 110-230 VAC or 9-18 VDC via battery pack / car outlet
Updatable FPGA technology allows addition of future features
English, Spanish, French, and German menu sets
Lightweight, portable design – half-rack, 2 RU
Made in the USA
| A/D Converters | 2 x channels, 24-bit |
| D/A Converters | 6 x channels, 24-bit |
| Sample Rates | All standard rates up to 192 kHz using SynchcroLock sample clock generator |
| Line Input L/R | Connectors: 2 x XLR, female THD+N: -114 dB at 1 kHz, -1 dBFS, 20 kHz filter, +22 dBu trim Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.01 dB, 20 Hz to 20 kHz Crosstalk: 140 dB maximum at 1 kHz, -1 dBFS signal Full-Scale Trim Settings: + 0 dBV, +2 dBV, +4 dBV, +6 dBV, +18 dBu, +20 dBu, +22 dBu, +24 dBu |
| Line Output L/R | Connectors: 2 x XLR, male Volume control with 0.5 dB increments THD+N: -109 dB at 1 kHz, -1 dBFS, 20 kHz filter, +22 dbu trim Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.02 dB, 20 Hz to 20 kHz Crosstalk: -135 dB maximum at 1 kHz, -1 dBFS signal Full-Scale Trim Settings: + 0 dBV, +2 dBV, +4 dBV, +6 dBV, +18 dBu, +20 dBu, +22 dBu, +24 dBu |
| Monitor Output | Connectors: 2 x male XLR THD+N: -107 dB at 1 kHz, -1 dBFS, 20 kHz filter, volume at maximum Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.02 dB, 20 Hz to 20 kHz Crosstalk: -135 dB maximum at 1 kHz, -1 dBFS signal Output Level at Maximum Volume: +24 dBu or +10 dBu, jumper-selectable |
| Headphone Output | Connectors: 1 x 1/4" jack, front panel Volume control with 0.5 dB increments THD+N: -107 dB at 1 kHz, -1 dBFS, 20 kHz filter, volume at maximum Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.02 dB, 20 Hz to 20 kHz Crosstalk: -130 dB maximum at 1 kHz, -1 dBFS signal Output Level at Maximum Volume: +19 dBu |
| Digital I/O | AES/EBU I/O: transformer-coupled, on XLR connectors Coaxial S/PDIF I/O: transformer-coupled on RCA jacks Optical S/PDIF I/O Optical: on optical connectors ADAT I/O: 8 x channels at 48 kHz, when selected on optical connectors USB 2.0 port |
| Synchronization Options | Internal External word clock I/O, 75 Ohms TTL signal on BNC connectors AES/EBU or S/PDIF inputs |
| LCD Display | 480 x 282, touchscreen |
| Power Requirements | AC Power: 110-230 VAC, 30 W Battery Power: 9-18 VDC, on 4-pin XLRV |
| System Requirements | Windows Intel Core 2 at 1.6 GHz, or AMD equivalent PC or laptop manufactured after January 2006 1 GB RAM One functional USB 2.0 port Windows XP with SP3 (32-bit only), Vista with SP2, Windows 7, 8, 10 Windows 32-/64-bit drivers provided by Lynx
Mac OS X iOS |
| Dimensions | 8.5 x 10 x 3.25" / 216 x 254 x 83 mm Half-rack, 2 RU |
| Weight | 6.75 lb / 3.1 kg |
| Packaging Info | |
|---|---|
| Package Weight | 10.05 lb |
| Box Dimensions (LxWxH) | 15.1 x 12.3 x 6.2" |
