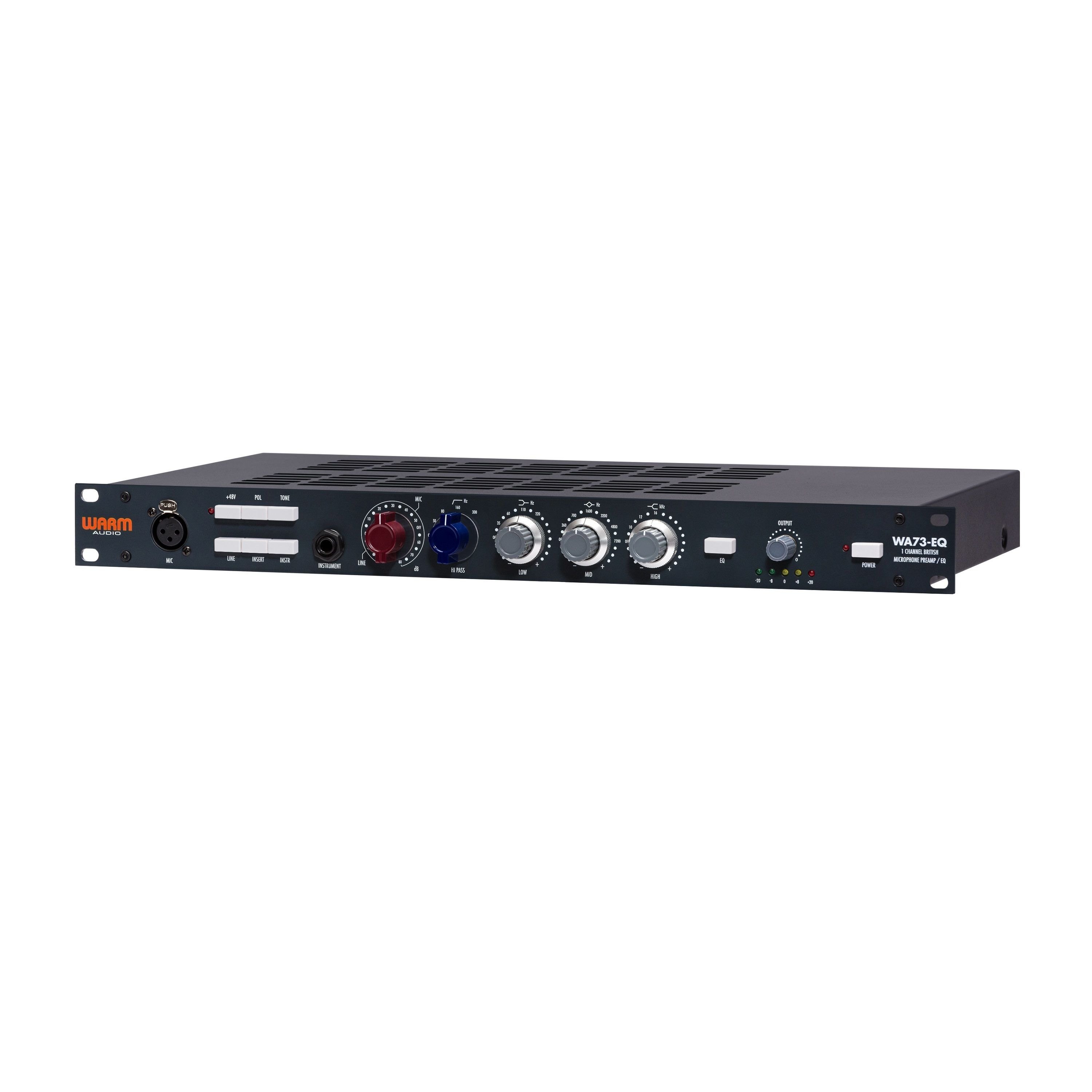

Warm Audio WA73-EQ Single-Channel British Mic Pre & EQ
🚚 Miễn phí giao hàng toàn quốc
The Warm Audio “WA73 Family” consists of single and dual channel '73-style preamps (with & w/out EQ), that each pay careful homage to British audio history.
A single channel '73 for the rest of us
When we at Warm Audio decided to release the WA73-EQ it was imperative that it met vintage expectation in both design and performance. The tone and sweet character that vintage '73-style mic preamps impart is so unique and familiar, that we had only the pure desire to release sonically accurate reproductions. After years of R&D, careful reverse-engineering, and countless hours of auditioning, the WA73-EQ was born!
The WA73-EQ is a “Desert Island” boutique preamp, but it can also be classified as a studio and live work-horse. Classic '73-style preamps are known for being versatile tools that work with all kinds of microphones from Condenser, to Dynamic, to Ribbon. The WA73-EQ equally shines on all types of microphones and sources including; vocals, acoustic/electric guitars, bass, drums, percussion, orchestras, keyboards, and even as a tone shaping tool to run partial or complete mixes through. With 80dB of gain and a fully discrete Carnhill Transformer balanced signal path, there’s no recording, mixing or engineering task that the WA73-EQ can’t handle.
UK Custom Carnhill Transformers
Enthusiasts unequivocally get excited about the components used in classic '73-style British preamps. The signal transformers are a common topic of conversation. Vintage units used various versions of transformers throughout the years, but the most coveted were the earliest versions. These are regarded as the most desirable choice due to their fluid and forgiving nature. They saturate sweetly when pushed, and have been known to make engineers cry when they hear how beautiful their mixes sound through them!
Warm Audio worked closely with Carnhill Transformers of Cambridgeshire, UK, to design faithful reproductions of these most coveted, early version transformers. We at Warm Audio have not yet heard a modern day '73-style preamp sound as sweet and musical as does our WA73-EQ with these beautiful custom Transformers.
Capacitors & Signal Path
An important part of the classic British circuits not often discussed are the different styles of capacitors and output transistor used. We found it important to maintain integrity to the original design by using tantalum and polystyrene capacitors in the signal path and an output transistor choice that is much smoother in the high gain settings than what is typically found in modern '73-style reproductions.
UK Blore Edwards Switch-Pots
A great sounding '73-style circuit should be just as reliable as it is great sounding. The complex dual concentric switch potentiometers in the EQ sections of the WA73-EQ are made in the UK by Blore Edwards who manufacture military spec switches and potentiometers. The use of Blore-Edwards components is no small inclusion for a '73-style preamp-eq in this price range.
Hand Wired & Hand Assembled
Classic '73-style preamps were often hand-wired and so is the WA73-EQ! Guru’s claim that a portion of the sought after classic British tone can be attributed to the hand-wired nature of the build. The WA73-EQ is hand-wired and hand assembled, including the pcb components that are all populated by hand.
- Handwired and hand-assembled, single-channel 1073-style preamp/EQ
- Fully discrete, Class A, transformer-balanced circuitry
- UK-made Carnhill Transformers
- 80dB of gain handles any type of microphone, including low-output ribbons
- Resistor-stepped rotary gain switch for easy recall
- Tone button changes input transformer impedance for mic optimization and tonal shaping
- Polarity switch
- 48V phantom power
- 4-position inductor-based highpass filter, selectable for Off, 50, 80, 160, or 300Hz
- Inductor-based 3-band equalization
- Low-band boost/cut at 35, 60, 110, or 220Hz
- Mid-band boost/cut at 360, 700, 1600, 3200, 4800, or 7200Hz
- High-band boost/cut at 10, 12, or 16kHz
- Additional high-band frequency EQ points added (compared to vintage 1073)
- XLR mic input
- Line-level TRS input
- TS Send/Receive insert jacks
- XLR and TRS line-level outputs
- DI instrument input
- Output level control
- LED level indication meter
- Rugged 19" rackmount chassis
- Ground lift switch
- Internal IEC 115V/230V power inlet
- Single Channel, Class A, '73-style British Microphone Preamp with EQ
- UK made Carnhill Transformers
- UK made - Blore Edwards EQ dual-concentric switch potentiometers
- Hand Wired, hand assembled
- 80dB of gain - resistor stepped gain switch
- Fully discrete
- TONE button - Changes input transformer impedance for varying tone
- Polarity switch
- 48v phantom power
- Inductor based 3 band EQ
- Low Band Boost/Cut - 35, 60, 110, 220 Hz
- Mid Band Boost/Cut - 360, 700, 1600, 3200, 4800, 7200 Hz
- High Band Boost/Cut - 10, 12, 16 kHz
- Additional high band frequency EQ points added (compared to vintage 1073)
- 4 position inductor based hipass filter - 50, 80, 160, 300 Hz
- XLR mic inputs (front & back)
- Line level TRS input
- TS Send/Receive insert jacks
- XLR & TRS line level outputs
- Direct In, instrument input
- Output control
- Led level indication
- Freq response 20Hz - 20kHz +/-.5 dB
- 19" Rack Mountable
- Internal IEC 115v/230v power inlet
