PSI Audio A14-M Studio retains the impressive qualities of its larger siblings, but in a very practical, compact package, giving away only a modest amount of low-end power and extension.
OVERVIEW
All of PSI Audio’s technology in an extremely compact cabinet
“It’s the aural equivalent of looking out of the window instead of at an HD TV screen!”
“I must admit to having become something of a fan of PSI Audio’s monitors. They are one of Switzerland’s hidden gems, and the new A14-M Studio retains the impressive qualities of its larger siblings, but in a very practical, compact package, giving away only a modest amount of low-end power and extension.”
Hugh Robjohns – Sound on Sound UK
Main Features
Power: 70 + 30W
Frequency Range: 56Hz – 23kHz
SPL Max: 101dB
100% Analog – No DSP
Flat frequency response
Phase compensated for a better stereo image
individually calibrated
Typical listening distance: from 1 m
5 years warranty
Handmade in Switzerland
Extend the low frequencies and add power
Use one of PSI Audio’s Subwoofer / LFE to add more energy and low end to your A14-M:

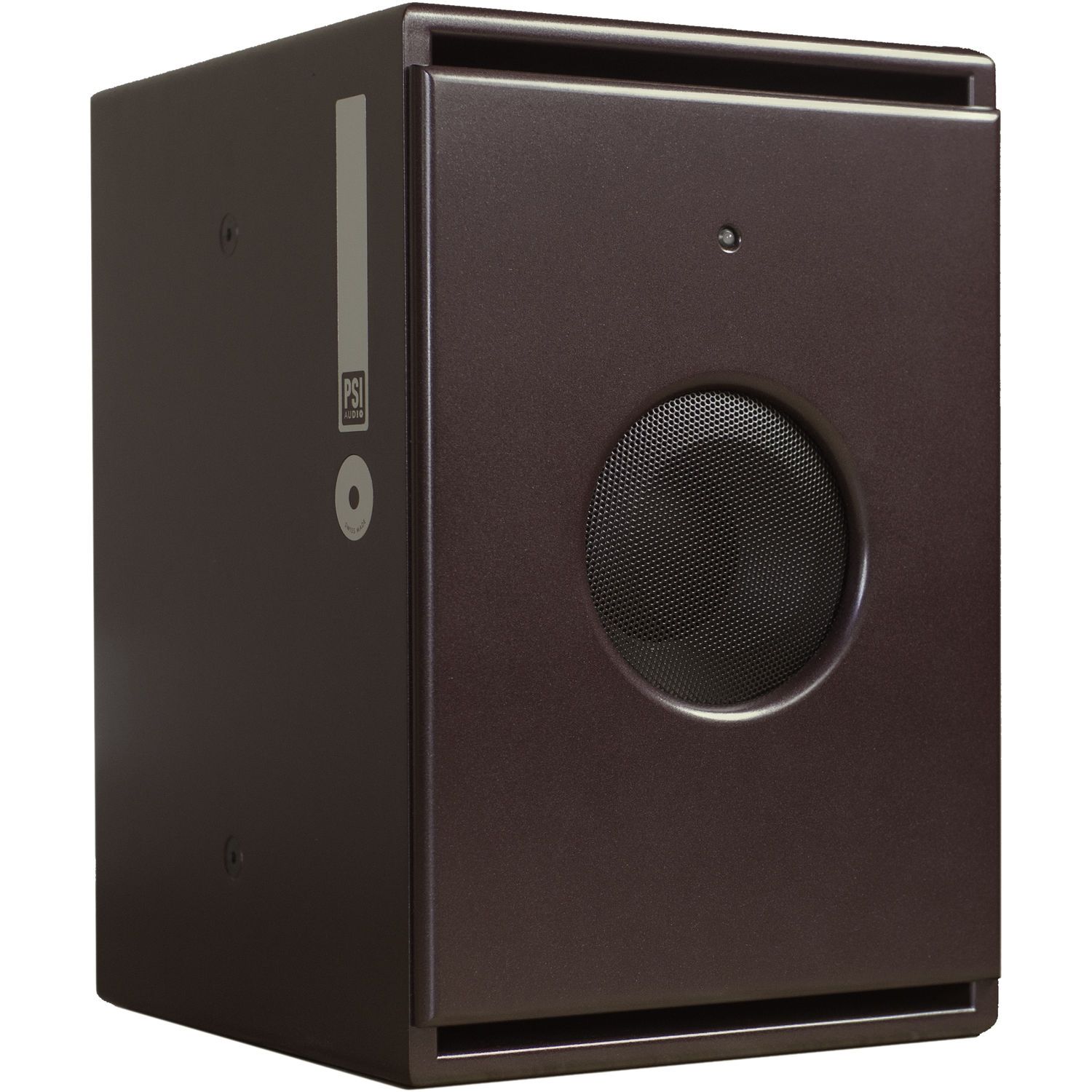

– Our compact Sub A125-M
or

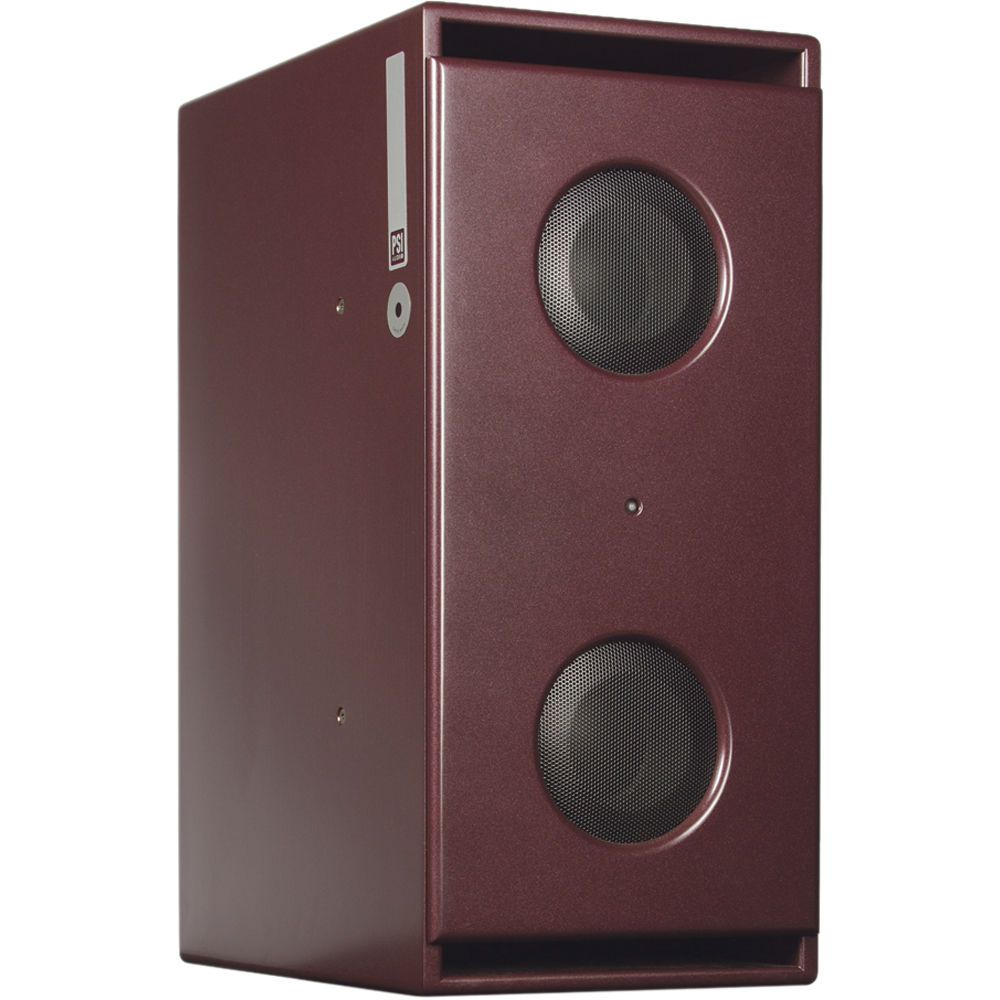

– our full range Sub A225-M
Thanks to our Roll-Off technology, both Sub A125-M & Sub A225-M are designed to perfectly match the A14-M Studio.

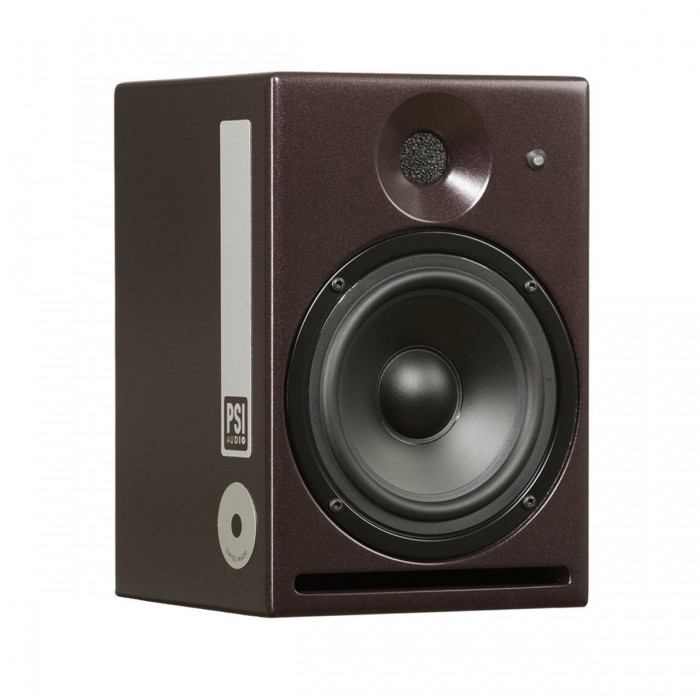

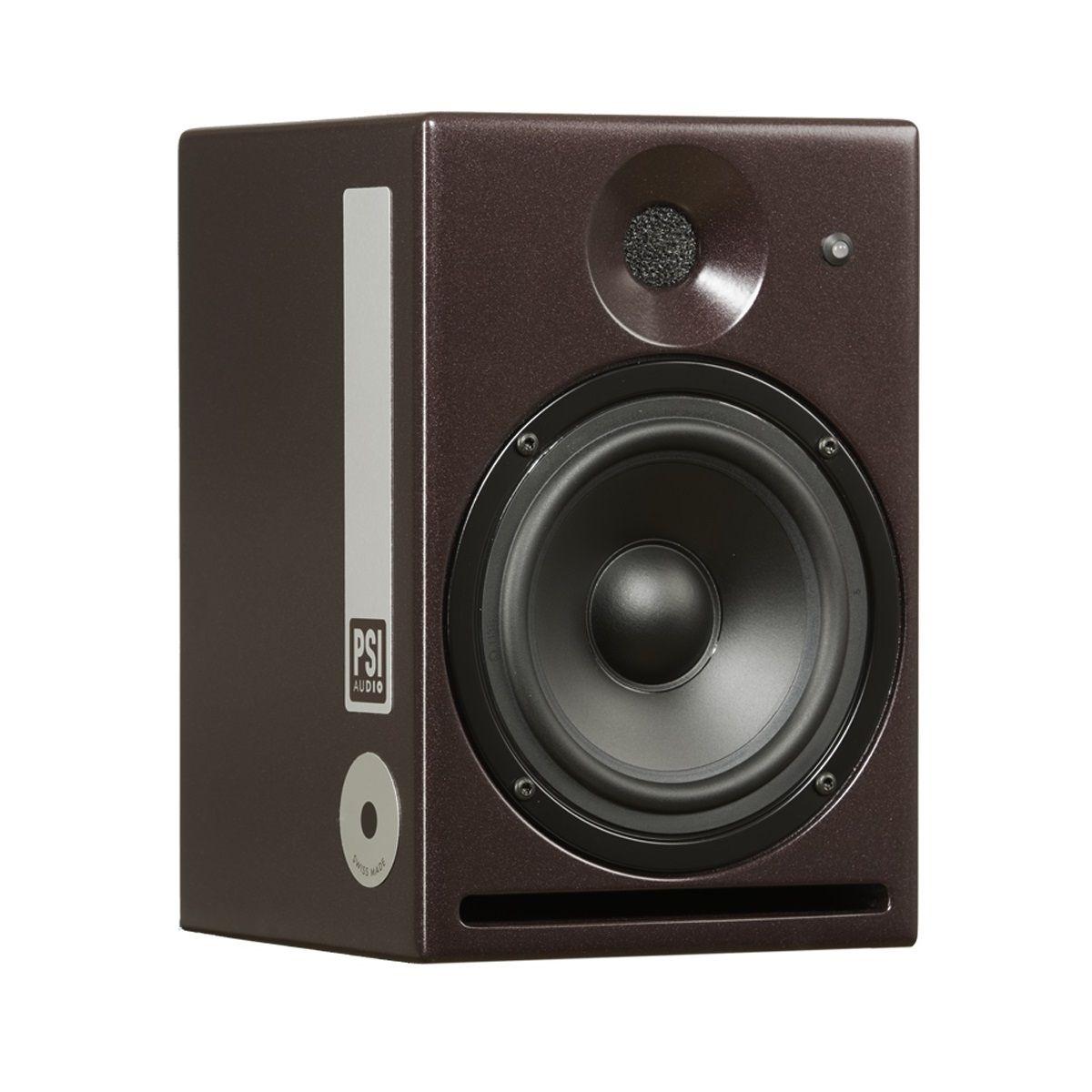

A14-M Studio – the smallest model of our range
This small but powerful full-range speaker with all of PSI Audio know-how, technology and features built in to a small cabinet.
The A14-M will surprise you by what sound can come of such a small cabinet.It is perfect for demanding users when place is an issue or in multichannel surround setups.
The BROADCAST version is equipped to be transported or mounted wherever needed.
SPECS
Power RMS: | 70 + 30W |
Program Power: | 100W |
Input Impedance: | Sym, 10k Ohms |
Sensivity for 100 dB @ 1m: | 0.775 V |
Signal to Noise Ratio: | 96 dBA |
Continuous Max SPL@1m: | 101 dB (single) |
Input Overload: | 24 Vpp |
Program Max SPL@1m: | 112 dB (pair) |
Response at -6dB: | 56 - 22000 Hz |
Tolerances: | ±2.5 dB (65Hz - 18kHz) |
Distortion THD: | less than 1.8% (95Hz-15kHz) |
Phase tolerances: | ±45° (260Hz - 16kHz) |
Dispersion (P.N. 4 - 16 kHz) at -6 dB: | 100° x 100° (H x V) |
System: | 2 Way(s) |
Crossover frequency: | 3.5 kHz |
Woofer's dim. Ext. / Diaphragm: | Ø147mm / Ø104mm |
Tweeter's dim. Ext. / Diaphragm: | Ø70mm / Ø24mm |
Connectors: | 1 x XLR F / 3P |
Signal input: | 1=GND, 2=(+), 3=(-) |
Material: | MDF |
Dimensions W x H x D mm: | 163 x 243 x 170 |
Gross / Net Weight: | 6.2 / 5.5 kg |
Voltage: | 115/230V (50-60Hz) |
Consumption Standby-Quiescent-Max: | 1.4 - 6 - 100W |
Mean / Max Humidity: | less than 75% / less than 90% |
External Temperature: | 5 - 40°C |
