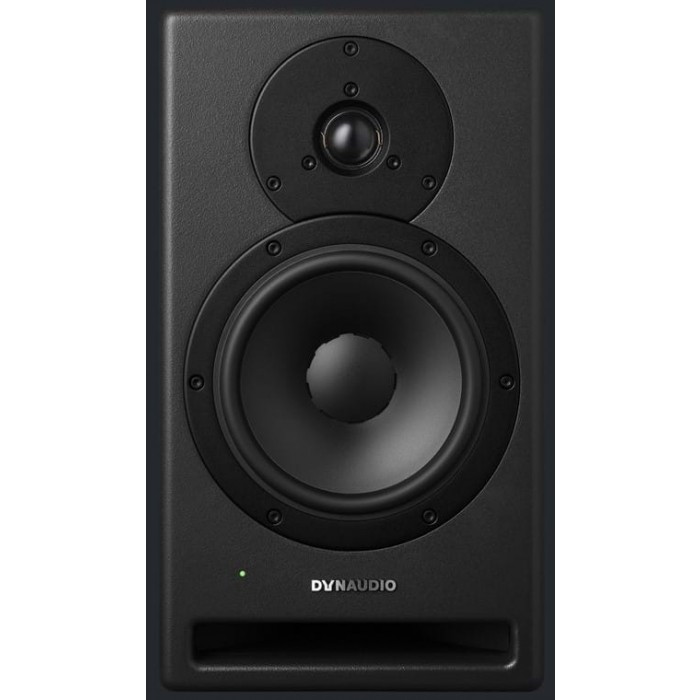

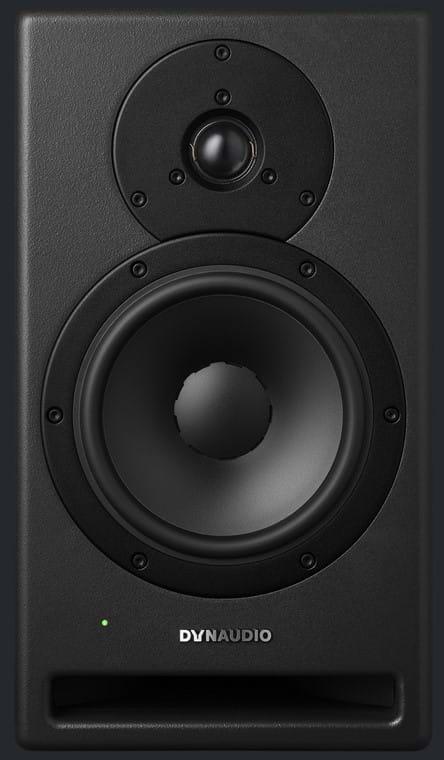

Dynaudio’s State-of-the-art Compact Studio Monitor
Whether you’re recording prog metal or a symphony, scoring a feature film or game soundtrack, or mixing a TV show or Dolby ATMOS project, you need to trust what your studio monitors are telling you. Dynaudio developed the Core 7 to address this need. The most compact model in the Core range of high-end professional reference monitors, the Core 7 features state-of-the-art Class D amplification, cutting-edge DSP, a super-inert 32mm-thick baffle, and flat frequency response from 44Hz to 21kHz (±3dB). Dynaudio’s latest 1" Esotar Pro HF driver provides hours of pinpoint imaging detail without the listening fatigue that plagues many other monitor designs. Their MSP mid/woofer represents another technological leap forward, delivering deep, accurate bass as well as natural midrange detail. You rely on your monitors to tell you the truth about what you’re recording, and the Dynaudio Core 7 does just that, in a versatile compact package that you can use nearfield, midfield, as a main monitor — or even soffit-mounted
Esotar Pro tweeter
Sweetwater knows that listening fatigue is the bane of every studio engineer’s existence. Once it sets in, you’re done working for the day. Dynaudio’s Esotar Pro tweeter features an ingenious component — the Hexis device, an inner dome that sits just behind the diaphragm and optimizes airflow, smooths out the frequency response, and eliminates undesirable internal resonances. The result is exemplary imaging, superb transient detail, and effortless extended high-frequency response.
7" MSP mid/woofer
Core 7’s mid/woofer driver represents another technological leap forward. Incorporating Dynaudio’s proprietary MSP (Magnesium Silicate Polymer) cone material along with an aluminum voice coil, glass-fiber former, and advanced magnet design, the MSP mid/woofer delivers incredible accuracy throughout its frequency range. MSP provides the best combination of lightness, stiffness, and damping — enabling it to produce tight, deep bass as well as natural midrange detail — all in a single driver for the best imaging and point source localization.
To account for placement in a variety of environments — on their sides, vertically, or perhaps even inverted — Dynaudio gave the Core 7 cabinet indentations on all four sides to accommodate special Dynaudio pads that protect the cabinet’s finish and stabilize the speaker on the mounting surface. Core 7 is also compatible with standard VESA mounting brackets or Dynaudio’s custom K&M bracket should you wish to mount them on a wall or ceiling as part of a multichannel or immersive-format monitor system such as Dolby ATMOS.
Precise input sensitivity and output SPL calibration
The noise floor and signal resolution of any monitoring system is critical to its performance. Whether you’re using the Core 7’s analog or digital inputs, you need to be able to control the gain staging between the monitor controller and the speaker system. To that end, Dynaudio gives you a range of 0dBu to +24dBu to match the analog input sensitivity to the output level. Once optimized, the Core 7 processes all analog signals at a 192kHz sampling rate and 64-bit resolution in the DSP (from the 24-bit A/D converter) for the highest degree of mathematical precision.
There’s also a switch to determine the maximum output SPL with the greatest bit depth in the DSP. For the maximum level, set it to 112dB. If you tend to work at quieter levels, choose a lower SPL setting to optimize the bit depth of the DSP for both inputs. When using the AES digital inputs, you must determine which channel (left or right) of the AES stream is used for that monitor. Core 7’s DSP operates at the incoming sample rate and either locks to the digital audio clock or word clock to maintain the most accurate signal possible.
Sophisticated DSP that’s easy to use
When setting up a monitoring system, positioning is critical. That’s why Dynaudio gave the Core 7 two DSP filter switches to address its position and room boundary locations. The DSP is quite sophisticated, but thankfully, it’s easy to use. If you place the monitors on the meter bridge of a large-format mixing console, simply set them to Desk, which will help compensate for the first reflection created by the mixing board. If you mount the monitors in a purpose-built wall, setting the Position 1 filter to Soffit will compensate for the increased low-end response.
You can compensate for the boundary effects created by placing a monitor close to walls or a ceiling by switching the Position 2 filter between Wall or Corner. These filters help compensate for the reflections created by the boundary walls, particularly in the lower frequencies. If you’re using the Core 7 with a subwoofer to extend the low-frequency response, there’s also an 80Hz Linkwitz-Riley highpass filter that can be engaged.
Unique Sound Balance filter
You can also use DSP to alter the overall presentation. The Sound Balance filter differs from the shelving-EQ tweeter and woofer adjustments found on typical active monitors. Instead of simply fine-tuning the tweeter level up or down — which will affect phase response — the Core 7 employs a full-spectrum bandpass filter that tilts depending on your desired tonal response. In the Dark setting, the entire frequency response is tilted so that 20kHz is down by 1.5dB, while 20Hz is up +1.5dB. In Bright mode, the tilt is reversed. This gentle filter maintains the proper phase response between the drivers while providing the overall tone you desire.
A serious tool for the discerning audio professional
Dynaudio designed the Core 7 to be used in a wide range of professional audio production applications: music mastering, mixing, and recording; theatrical re-mixing; editorial and sound design for games — or anywhere you need maximum performance and flexibility in a compact form factor. It can be used for nearfield, midfield, or main monitoring, and even soffit-mounted. Equipped with both analog and digital connectivity, DSP-controlled acoustic response, and versatile positioning, it’s perfect for high-SPL immersive audio and other multichannel formats. Whatever your monitoring needs, the Dynaudio Core 7 delivers unerring monitoring accuracy and low listening fatigue. So what you hear is what you get, no matter how long the session is
- Power Configuration:Bi-amped
- LF Driver Size:7" woofer
- LF Driver Type:MSP cone
- HF Driver Size:1" tweeter
- HF Driver Type:Dome
- LF Driver Power Amp:500W
- HF Driver Power Amp:150W
- Total Power:650W Class D
- Frequency Response:38Hz-24kHz
- Crossover Frequency:2300Hz
- Maximum Peak SPL:124 dB SPL @ 1m (pair)
- Input Types:1 x XLR (analogue), 1 x XLR (AES/EBU)
- Output Types:1 x XLR
- USB:1 x Type B
- Enclosure Type:Ported
- Enclosure Material:Solid MDF
- Weight:32.4 lbs.
