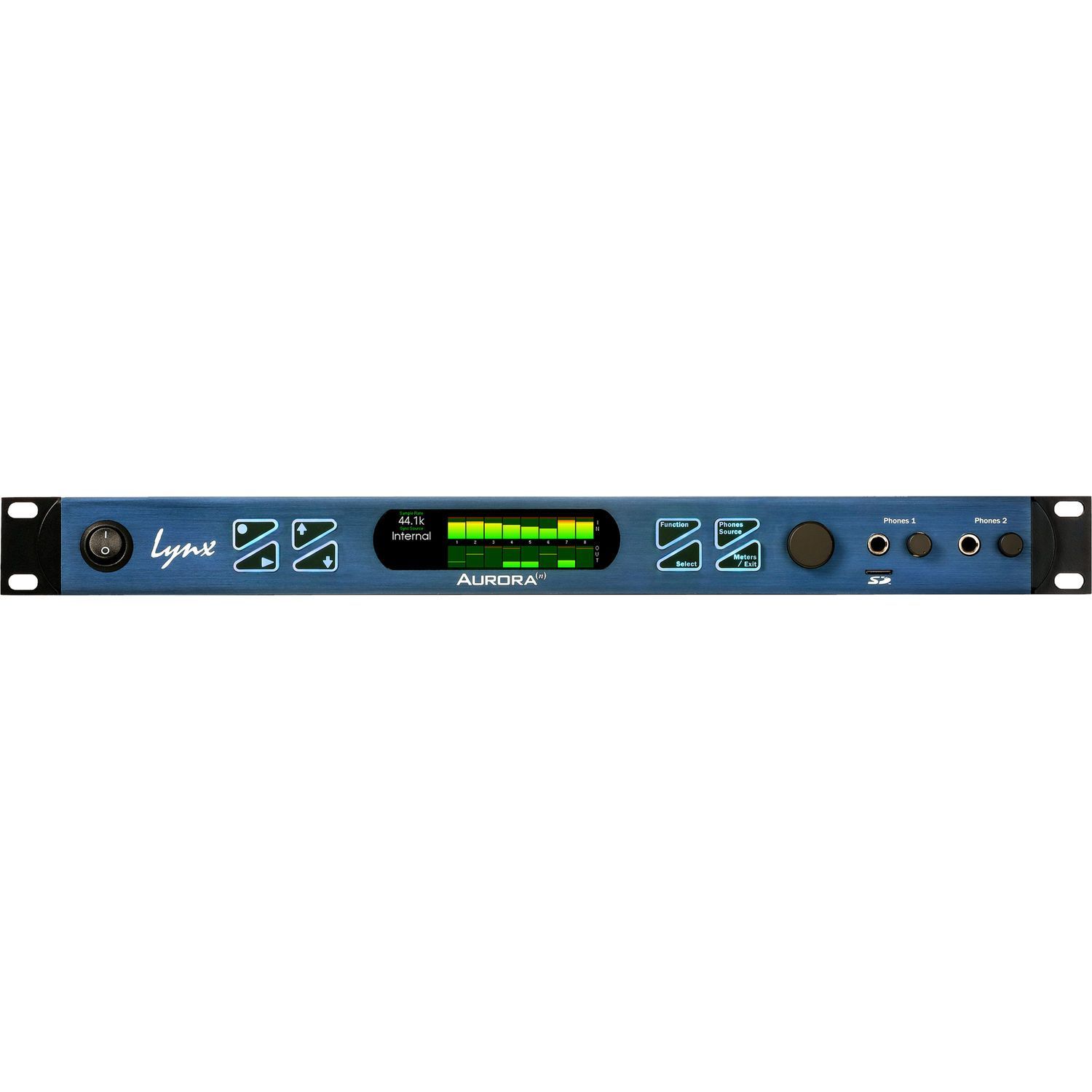

Lynx Studio Aurora(ⁿ) 8 USB
The Aurora(ⁿ) 8 USB from Lynx Studio Technology is a mastering-grade 8-channel AD/DA converter which supports up to 24-bit/192 kHz conversion and comes with a preinstalled LT-USB USB 2.0 interface.
The Aurora(ⁿ) 8 USB from Lynx Studio Technology is a mastering-grade 8-channel AD/DA converter which supports up to 24-bit/192 kHz conversion and comes with a preinstalled LT-USB USB 2.0 interface. It offers significant performance and flexibility improvements over the company's well-regarded line of Aurora converters, providing an even greater level of wide-open, uncompressed, and unequalized audio for studios, mastering facilities, remote recording, broadcast, live performance or production installations.
The Aurora(ⁿ) 8 USB combines Hilo-like technology with the latest FPGA processors, to achieve greater transparency and reduction of both noise and distortion. One word clock input and three outputs let you use the unit as a master clock or slave it to an external clock. In addition, the Aurora(ⁿ) is equipped with an LSlot expansion bay which allows for a wide array of current connectivity options such as Thunderbolt, Dante, Pro Tools | HD, and USB, but can also be used to add more channels and additional hardware, as your production needs evolve.
Other features include an on-board microSD player/recorder capable of up to 32 channels of direct recording and playback, ideal when working in the field. Two headphone outputs with independent volume control let you monitor your sound with audiophile-grade precision, while a bright LCD display gives you immediate access to all levels and functions, right from the front panel.
- Upgraded version of the company's well-regarded Aurora 8 model
- Redesigned to use technology borrowed from the company's Hilo Converter Technology (HCT) combined with the latest FPGA technology, for significant improvements in transparency and reductions of both noise and distortion
- Supports eight channels of mastering-quality AD/DA conversion at up to 24-bit/192 kHz
- Preinstalled LT-USB USB 2.0 interface
- LSlot expansion bay allows for a wide array of current connectivity options to include Thunderbolt, Dante, Pro Tools | HD, USB, and future formats
- Two audiophile-grade headphone outputs with independent volume control
- On-board microSD player/recorder capable of up to 32 channels of direct recording and playback
- SynchroLock-2 high-performance sample clock technology provides 300,000:1 reduction in jitter, 5 second lock time, extremely low jitter, and excellent absolute accuracy
- Word clock I/O provides one input and three outputs on BNC connectors
- 480 X 128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle
- Universal power supply - built in, no wall-warts
- 1 RU rack-space design with no fan - silent operation so you can keep unit in the recording room, with no need for isolation from distracting fan noise
- Designed and built in the USA
| Clocking | |
|---|---|
| Clock | SynchroLock-2 |
| Jitter | 300,000:1 reduction in jitter |
| Lock Time | 5 seconds |
| microSD Recorder/Player | |
|---|---|
| Channels | Up to 32 channels at 96 kHz Up to 16 channels at 192 kHz |
| Record Time | 8.3 hours on 256 GB card (32 channels, 96 kHz) 66.3 hours on 2 TB card (32 channels, 96 kHz) |
| General | |
|---|---|
| AC Power | Universal power supply (built-in) |
| Form Factor | 1 RU |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
