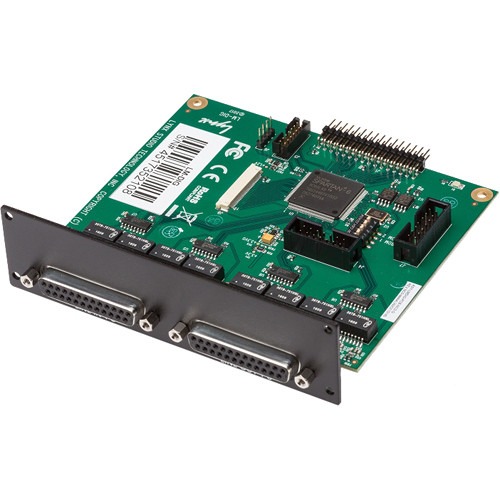

Lynx Studio Technology LM-DIG 16-Channel AES/EBU Digital I/O Module for Aurora(n)
The Lynx Studio Technology LM-DIG is an expansion module for their Aurora(â¿) AD/DA converters. It plugs into a slot in the rear panel of the Aurora(â¿), and it offers 16 channels of I/O over AES/EBU connections. It can handle sample rates between 44.1 and 192 kHz, at 24-bit resolution.
The Lynx Studio Technology LM-DIG is an expansion module for their Aurora(â¿) AD/DA converters. It plugs into a slot in the rear panel of the Aurora(â¿), and it offers 16 channels of I/O over AES/EBU connections. It can handle sample rates between 44.1 and 192 kHz, at 24-bit resolution.
The DB25 I/O connections are transformer-coupled, rated at 110 Ohms, and they offer RF filtering for rejecting extraneous noise.
You can install the LM-DIG module into any Aurora(â¿)8, Aurora(â¿)16, or Aurora(â¿)24. After physical installation, all you need to do is download a free firmware update from the Lyn
- 16 input and 16 output channels on two DB25 Connections
- Balanced, transformer-coupled, 110-Ohm, RF-filtered, electrical interface
- 24-bit AES/EBU (AES3) data format
- 44.1 to 192 kHz sample rates supported
- 16 Channels of AES/EBU I/O
- Expands Aurora(ⁿ) I/O
- 24-Bit Conversion up to 44.1 to 192 kHz
- Balanced, Transformer-Coupled DB25 I/O
- 110 Ohms
- RF Filtering for Noise Protection
| Compatible Interfaces |
| Analog Audio I/O | |
| Digital Audio I/O | |
| Host Connection / USB | |
| USB (Non-Host) | |
| Sync I/O | |
| Network I/O | |
| MIDI I/O |
| Sample Rates | |
| Bit Depths |
