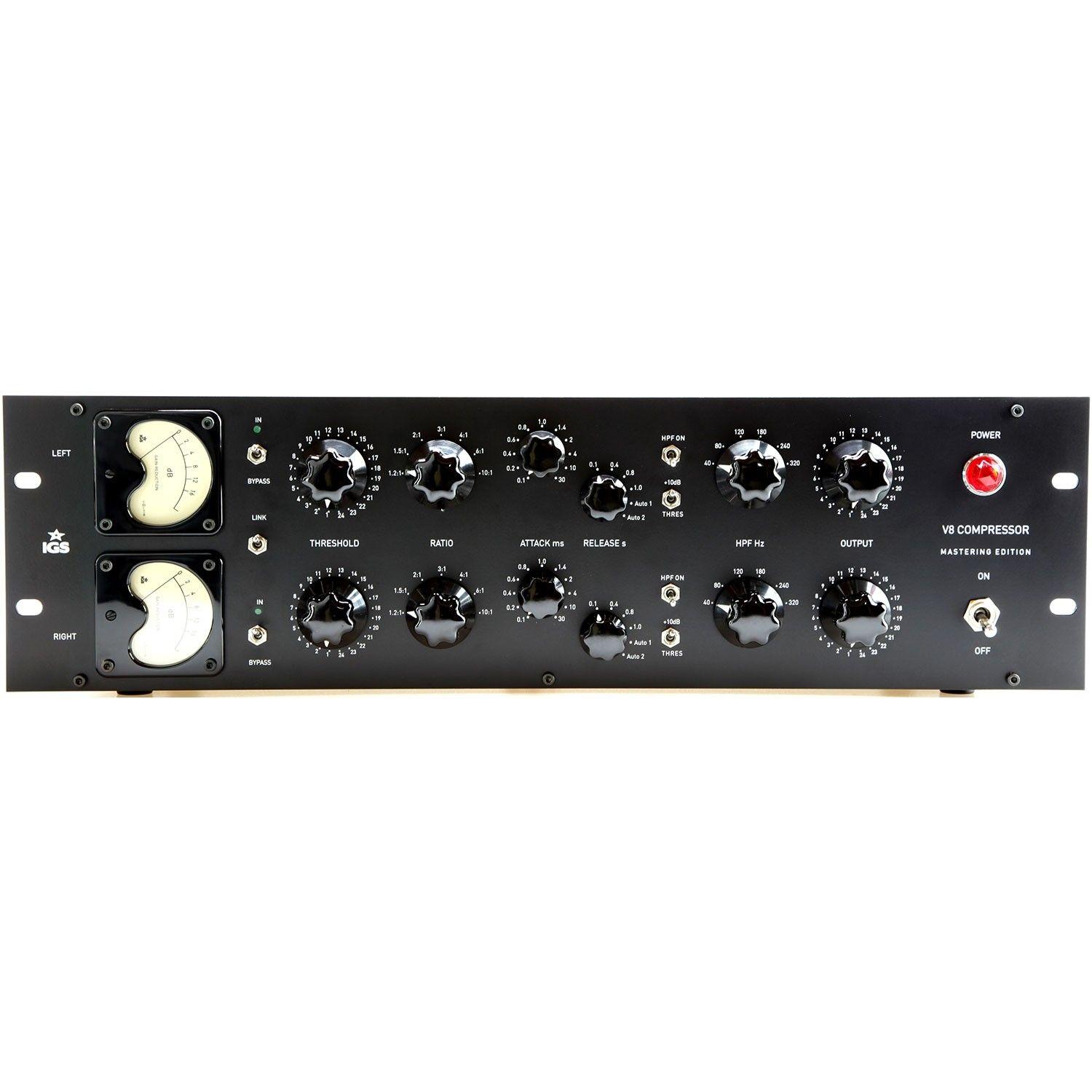

The IGS Audio V8 Compressor is built only with discrete components and six Carnhill transformers (three per channel). The element responsible for the compression is the bridge, composed of 4 matched pulse diodes. The device is a dual mono unit with the option of linking the sidechain circuitry. All controls are stepped, for channel matching and recall.
This is truly a desert island compressor. The V8 takes its name from the order of projects. This is the eighth compressor designed by IGS Audio.
The punch and clarity your mixes are lacking
The V8 compressor is also equipped with a HPF on the sidechain circuitry. This feature allows you to cut the lowest frequencies from the signal, before they hit the compressor stage, and allow a single instrument, such as the kick drum, to go through without the pumping effect. An additional switch on the front (+10THR) lowers the compressor's threshold level by an extra 10 dB. This feature is useful when compressing very low signals, or for very strong compression. The typical application for IGS V8 is bus compression. However, due to its nature and the incredible range of tone and color settings, uses of the V8 compressor are unlimited.
|Tube or Solid State||Solid State|
|Input Connectors||Analog XLR|
|Output Connectors||Analog XLR|
