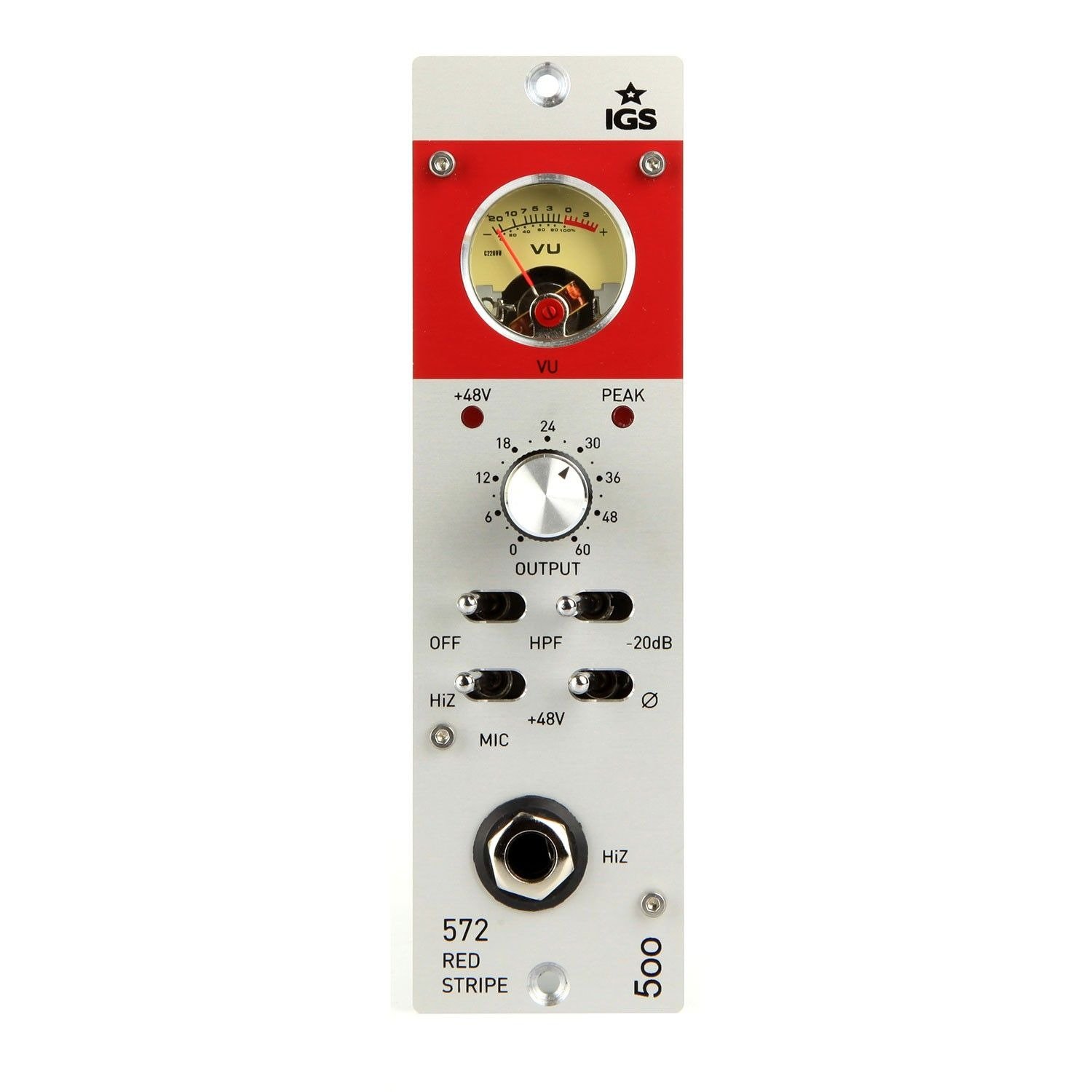

IGS Audio 572 Red Stripe 500 Series Tube Preamp
The IGS Audio 572 Red Stripe is a mic/instrument preamp designed in the 500 standard. The module is transformer balanced on input and output using Sowter and Edcor transformers. All regulators on the front panel are stepped switches. Excellent for recording any sources, including line signals from microphones, instruments like guitars or keyboards (Hi-Z input at the front of the unit).
In detail
This is an excellent preamplifier, that can be used with a variety of sources: line signals, guitar pickups (via Hi-Z input), dynamic, condenser and ribbon microphones. It always provides outstanding results. With one knob gain control (41-stepped) you can push it nicely, but still make sure that you don't overload the next stage of your signal chain. The second stage overloading gives some sweet harmonics vibe. Adds a lot of unique flavor. HiZ input is accessible from the front of unit. Handy!
| Condition | New |
|---|---|
| Tube or Solid State | Tube |
| Chassis | Module |
| Module Type | 500 Series |
| Module Slot Count | 1 Slot |
- Number of slots : 1
- HPF: OFF, 50 Hz (6 dB/oct)
- Input Impedance (balanced): >1 kOhm
- Input Pad: -20 dB
- Phantom Power: Yes
- Input Pad: -20 dB interstage
- Output Impedance (balanced): 600 Ohm
- Audio transformers: Sowter / Edcor
- Operating level: +4 dBu
- Max input level: +16 dBu
- Max output level: +28dBu
- Dynamic Range: 117dB
- Noise level: -100 dBA
- Max gain: 64 dB
- Frequency response: 20 Hz - 20 kHz -1 dB
- THD+N: max 0.5%
- Voltage: ± 16 V DC
- Power consumption: 6.5 W
- Dimensions 78 x 166 x 229 mm
- Shipping weight: 2 kg
