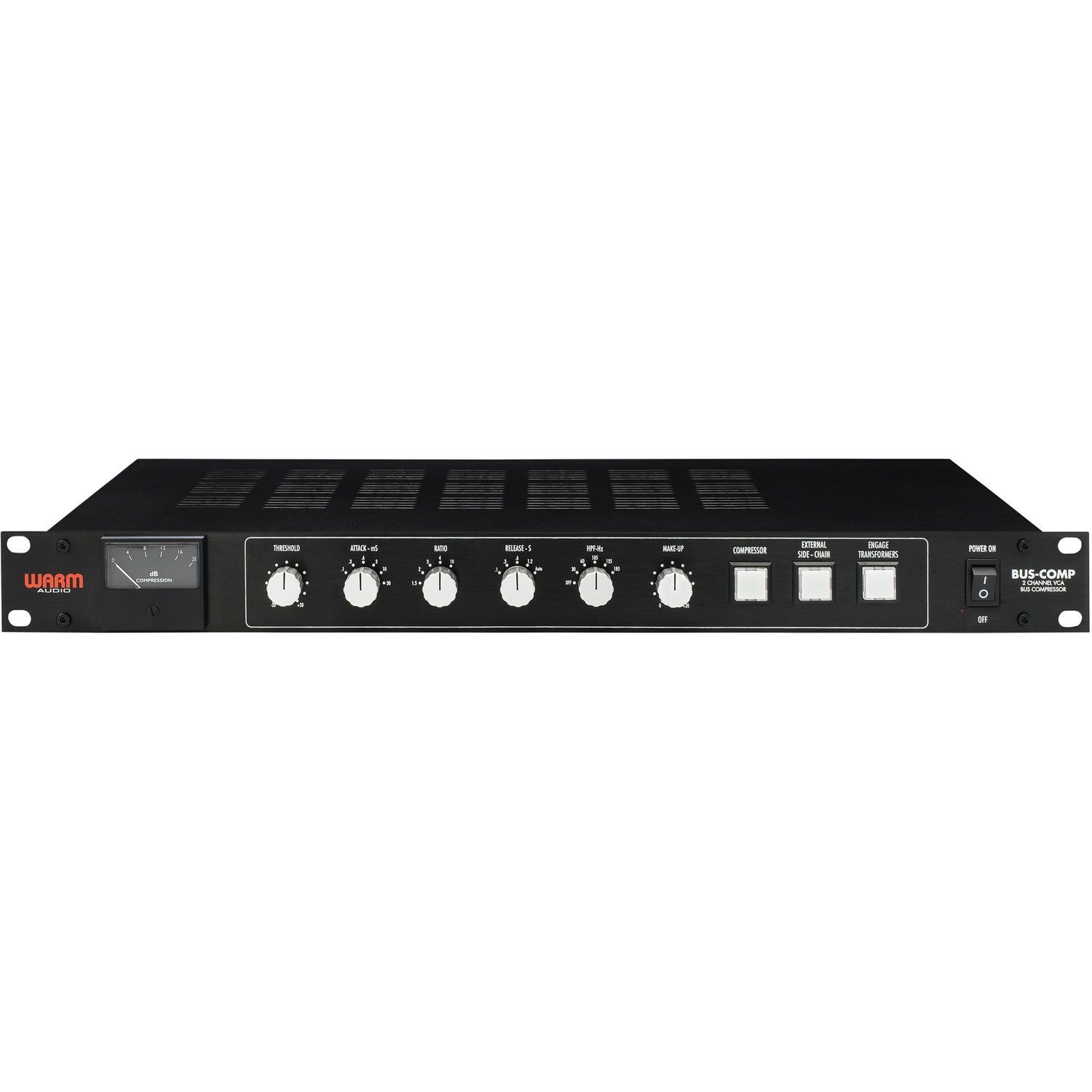

Warm Audio Bus-Comp 2-channel Stereo VCA Bus Compressor
🚚 Miễn phí giao hàng toàn quốc
Designed for recording and mixing stereo tracks, the BUS-COMP is Warm Audio's take on a classic VCA bus compressor, one made famous by companies such as Solid State Logic.
Designed for recording and mixing stereo tracks, the BUS-COMP is Warm Audio's take on a classic VCA bus compressor, one made famous by companies such as Solid State Logic. This is a clean, stereo compressor, one quite suited to handling the dynamics of stereo instruments. It's also handy for stereo-buss work, imparting the sonic glue VCA compressors are known for.
The BUS-COMP takes a classic design and adds some nifty improvements, such as the ability to switch CineMag transformers in and out of the signal path at the press of a button. With this feature, you can opt for sonic transparency or colorful vibe with the touch of your finger.
The BUS-COMP also offers a selectable high-pass filter, a sidechain input, a useful bypass/engage switch for making comparisons, and a versatile I/O path. Indeed, you'll find XLR and 1/4" TRS terminations used in both the inputs and outputs.
Key Features
- All analog, 2-channel stereo VCA compressor
- Based on legendary VCA compressor technology
- Selectable discrete opamp stage with CineMag USA transformers
- External sidechain source select
- Selectable Hi-pass Filter at 30, 60, 105, 125, and 185 Hz
- Compressor engage switch for easy comparisons
- Performs well on stereo mixes, drum mixes, drum overheads, acoustic guitars, keyboards, piano, orchestral instruments, voice-overs, and endless other sources
- Can be used on mono as well as stereo sources
- Uses THAT 2180 VCA IC
- Provides both XLR and 1/4" TRS connectivity
Warm Audio BUS-COMP Specs
| Connections | 1 x XLR Sidechain Input 2 x XLR Inputs 2 x 1/4" TRS Inputs 2 x XLR Outputs 2 x 1/4" TRS Outputs |
| Compressor Character | VCA |
| VCA | THAT 2180 ICs |
| Controls | Threshold Knob Attack Knob Ratio Knob Release Knob High-Pass Filter Knob Make-Up Gain Knob Compressor/Bypass Switch External Sidechain Switch Transformer Engage Switch |
| High-Pass Filter | At 30, 60, 105, 125, and 185 Hz |
| Noise | < -90 dBu |
| Headroom | > +29 dBu (20 Hz to 20 kHz) |
| Dynamic Range | > 120 dB |
| Frequency Response | 18 Hz to 22 kHz |
| THD + N | < 0.05% (20 Hz to 20 kHz, +20 dBu Input) |
| Impedance | Input: 10 Kilohms Output: 50 Ohms |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 10.18 lb |
| Box Dimensions (LxWxH) | 24.4 x 14 x 4.1" |
