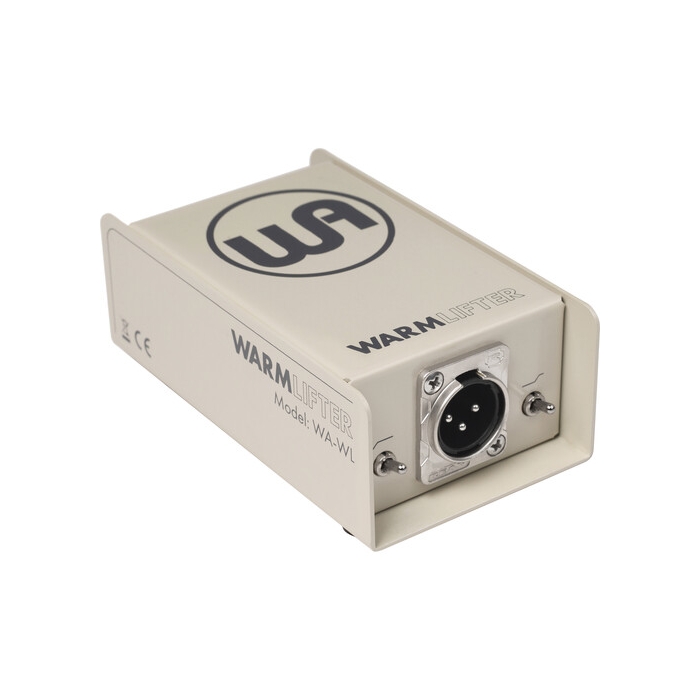

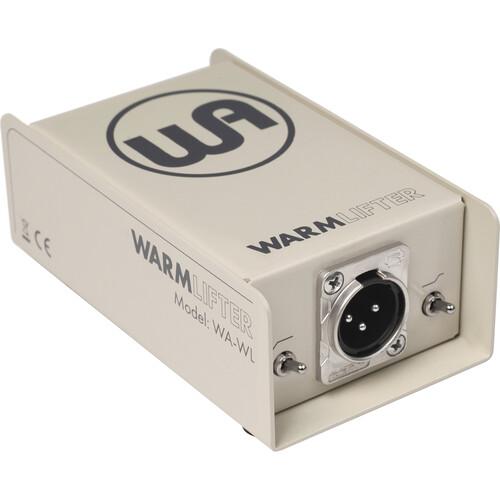

Warm Audio Warm Lifter Inline Active Microphone Preamp

4.050.000,00 ₫

SKU

WA-WL

Designed to boost low-output or passive microphones and facilitate long cable runs, the Warm Audio Warm Lifter boats 26 dB of clean analog gain with true impedance matching, ensuring your mics and audio destinations are always in agreement. With a 100 Hz high-pass filter and a 3 kHz shelving boost, you can sculpt your tones as well.

TỔNG QUAN

TÍNH NĂNG

THÔNG SỐ KỸ THUẬT

KHÁCH HÀNG NHẬN XÉT

The ultralow-noise JFET input is balanced, along with the output, and operates on 48V phantom power. Durable build quality ensures this critical piece of audio gear remains intact for long tours and years of abuse in studios and busy live venues. Like all Warm Audio gear, each Warm Lifter is hand-tested and inspected by trained technicians in Austin, TX.

Common Applications

Studio vocal and instrument recording with low-output ribbon and dynamic mics
Voiceover and podcast recording/streaming
Low-output mics plugged directly into audio interfaces with weak preamps
Compensating for signal loss during long cable runs

True 26 dB of Clean Gain

Warm Lifter will always deliver 26 dB of clean output gain, regardless of the mic that you choose. Unlike some inline preamps, signal boosters, and lifters, the circuit design of the Warm Lifter protects your recording from signal loss or phase issues by ensuring there is no mismatching of impedance between your mic of choice and the Warm Lifter.

Added Frequency Flexibility

The Warm Lifter has a selectable 100 Hz high-pass filter to remove unruly low-end frequencies for added clarity and detail. Additionally, the Warm Lifter has a selectable 3 kHz high-shelf boost to emphasize the upper mids and highs for clarity and detail on darker sounding mics.

Key Features

For Passive or Low-Output Microphones
26 dB of Clean Gain
100 Hz HPF and 3 kHz Shelving Boost
Automatic Impedance Matching Transformer
Ultra Low-Noise JFET Input
Balanced I/O
Highly Durable Build Quality
Hand Tested and Inspected in Austin, TX

Warm Audio WA-WL Specs

Key Specs

In-Line Accessory Type	Preamplifier
Input / Output Level	Input: Mic Level Output: Mic Level
Number of Channels	1
Gain	+26 dB
Controls	Low Cut/HPF
Inputs/Outputs	1x XLR 3-Pin Female Balanced Mic Input 1x XLR 3-Pin Male Balanced Mic Output
Operating Voltage	48 V

General

In-Line Accessory Type	Preamplifier
Transformer Type	Impedance Matching
Input / Output Level	Input: Mic Level Output: Mic Level
Number of Channels	1
Gain	+26 dB
High-Pass Filter	100 Hz
Circuit Type	JFET
Controls	Low Cut/HPF
Indicators	No

Connectivity

Inputs/Outputs

1x XLR 3-Pin Female Balanced Mic Input
1x XLR 3-Pin Male Balanced Mic Output

Performance

Frequency Response	10 Hz to 100 kHz ±0.2 dB
Impedance	Input: 2.4 Kilohms (Balanced) Output: 150 Ohms (Balanced)
Max Input Level	-11 dBu
Max Output Level	15 dBu
Noise	Output Noise: -93.97 dBm
THD+N	0.001% (at 15 dBu)
