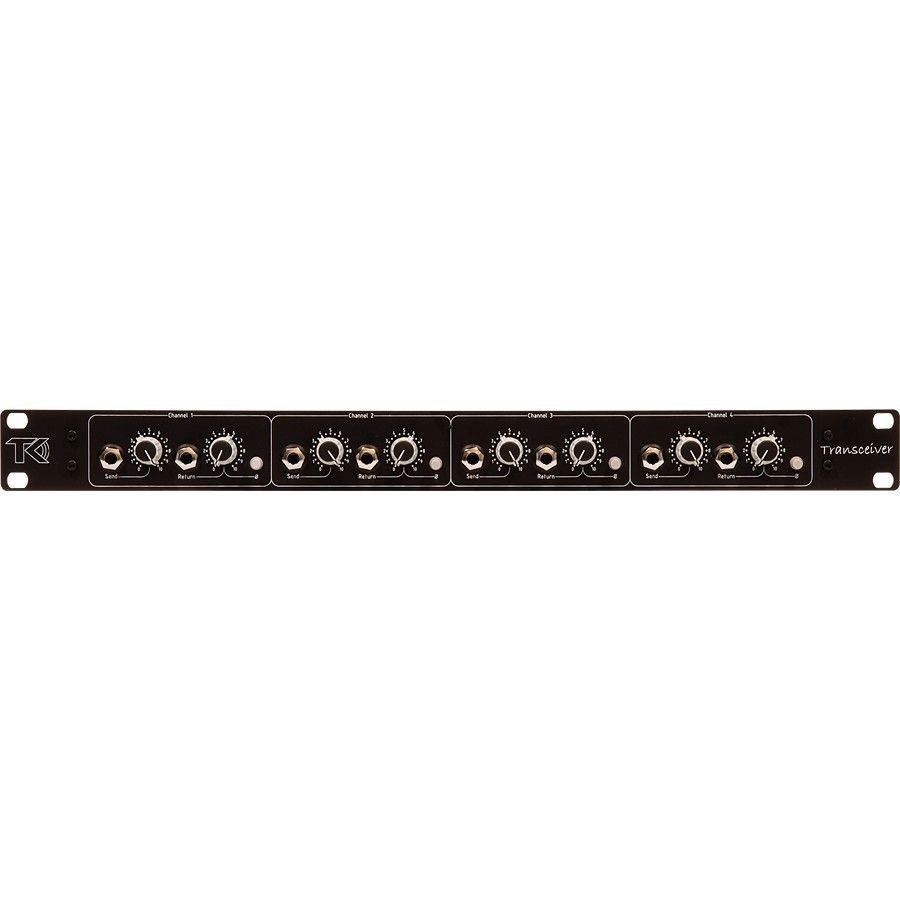

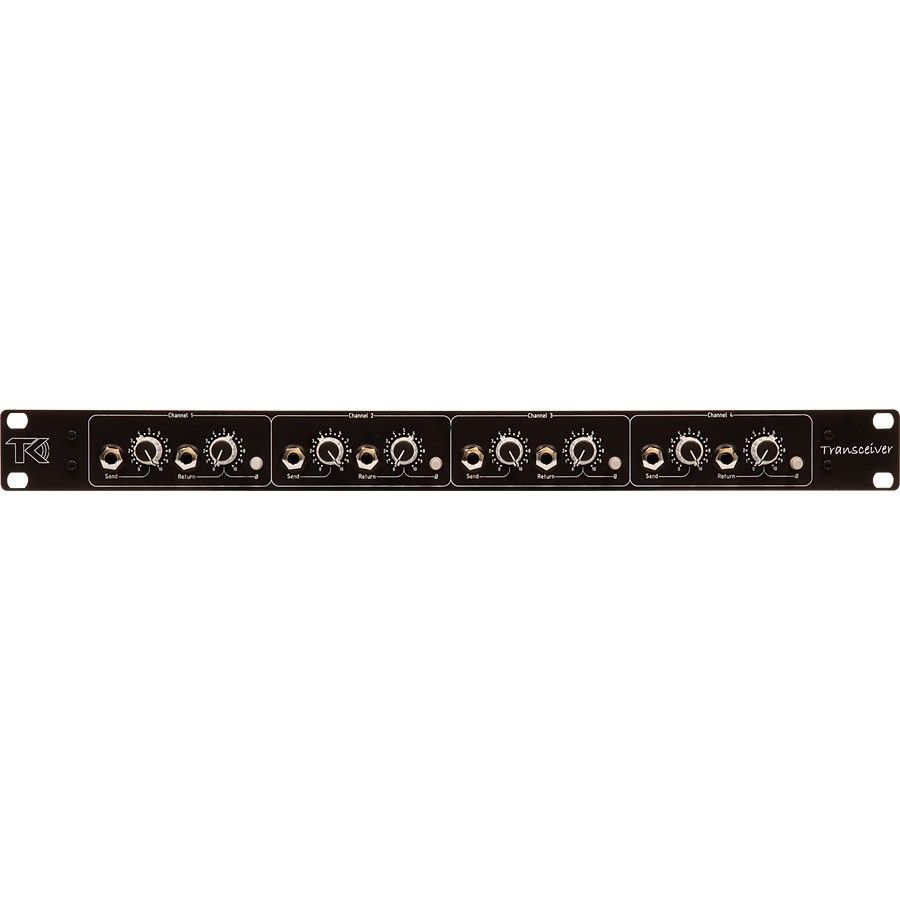

TK Audio Transceiver
The Transceiver is a four channel insert station. The main function is to convert +4dB balanced signals to unbalanced and back again. Each channel has a send level, the return has a gain control and a polarity switch.
The Transceiver is a four channel insert station. The main function is to convert +4dB balanced signals to unbalanced and back again. Each channel has a send level, the return has a gain control and a polarity switch. Among other things you can use The Transceiver to do the following:
- It's an insert station. Insert unbalanced gear such as guitar pedals and old echo fx into your DAW or consol.
- It's an active DI-box with up to 20dB gain. Plug your favourite instrument into your collection of vintage gear via The Transceiver.
- It's a reamp tool.
- It's a Swiss Army Knife on stage. Hook up balanced gear on stage between your instrument and amp.
Specifications and components may be changed or updated without further notice.
Send: TRS jack
Send level: 0 to full
Return: TRS jack
Return gain: 6 to 20dB
Polarity: flips the polarity of the return signal
Regulated, internal power supply with a toroidal transformer
Selectable between 115 and 230V
Max balanced input: +27dBu
Max unbalanced send level: +22dBu
Max return input level: +22dB
Return gain: 0-20dB
Return input impedance: 1Mohm
Max balanced output: +27dBu
Send frequency response: 10-100kHz +/-0,1dB
Send THD+N @ 1kHz: less than 0,001%
Return frequency response: 10-100kHz -0,2dB (at 10Hz)
Return THD+N @ 1kHz: less than 0,003%
