GPC 3x2.5mm² Power Cable (85025) Shielded, high flex PVC up to 240Vac
284.000,00 ₫
SKU
85025

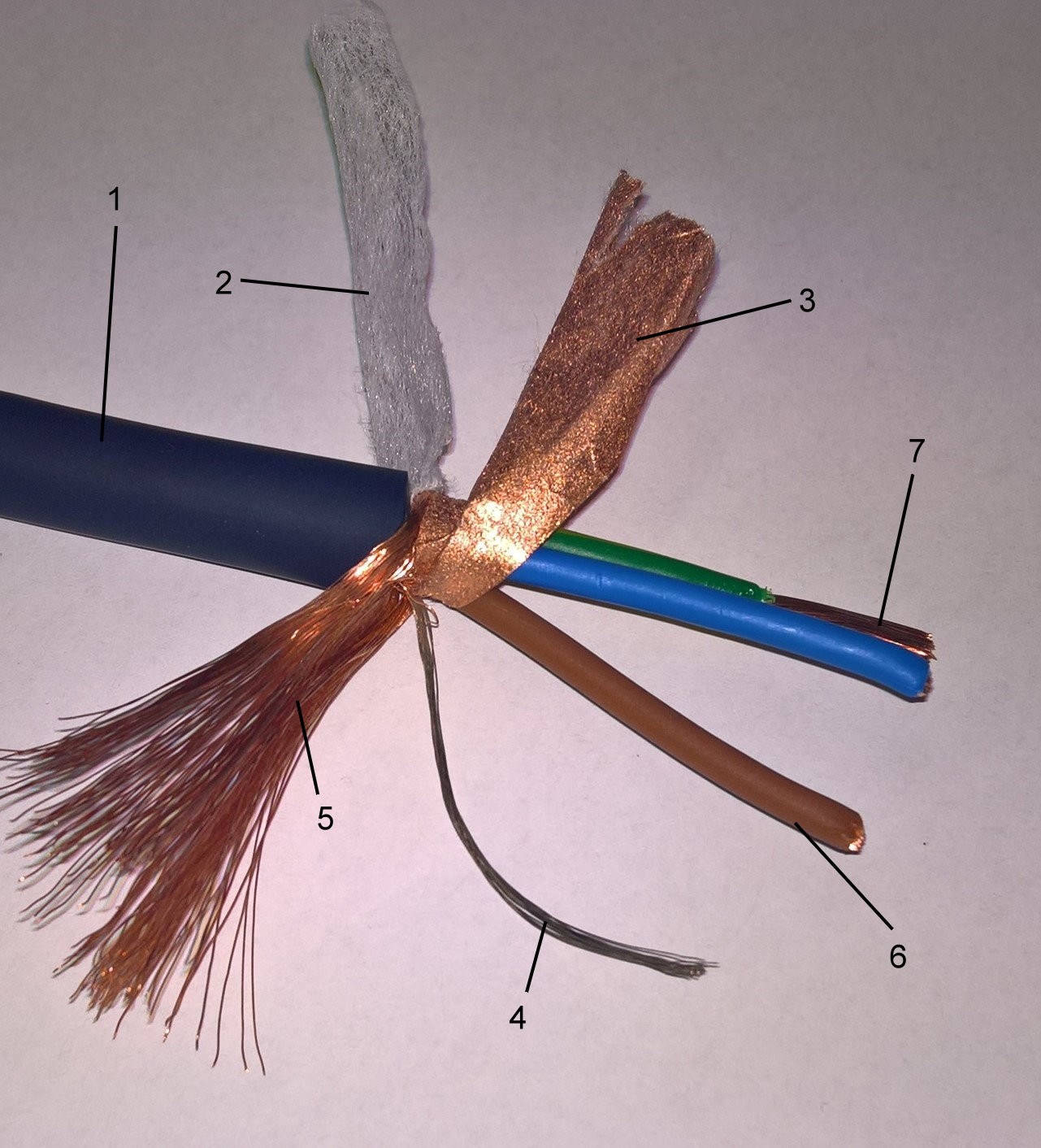

Construction: |
||
| 1 = Jacket: | PVC (YM2) 1.1mm Ø 9.50 mm max., ultrablue RAL5013 |
|
| 2 = wrapping | Non woven fabric tape | |
| 3 = Shield no 2. | Bare copper wires (0.15 mm) 100% coverage S | |
| 4 = Drain Wire | 16x0,19mmØ Cu (Ground) bare copper | |
| 5 = Shield no 1 | K6160 Polyester nonwoven thermally bonded, both sides copper coated (see below) | |
| 6 = Insulation 3x: | PE – 2YI 1, 0.50mm thickness. Nominal Diameter 3.05 mm, Color code: Blue-Brown-Yellow/Green |
|
| 7 = Conductor 3x: | 45x0,25mmØ Cu 2,50mm² bare copper stranded IEC 60228 Class 5 flexible copper conductor 2,50mm² |
|
Technical datas: |
||
| Conductor resistance: | < 8.20 Ohm/km | |
| Rating Voltage: |
300/500V |
|
| Test Voltage: | 2000 Veff | |
| Temperature range: | -30° to +70° C | |
| Maximum Watts load: | @ current 15.0 Ampere/Line | < 1650 Watt |
Reussen shielded power cable for mains power to your Hi-End Audio Gear. This cable ensures best transport of needed energy (up to 1650 Watt and 15 Ampere current) to our device but due to our exklusive Reussen shielding and conductive seperation layer, this is protecting your signal cables nearby even better from humm and RF noise generated by the 50Hz signal going tru the power supply cable.
