10495 GAC-2a Economical single shielded high flex microphone cable
43.500,00 ₫
Liên hệ
SKU
10495
Balanced microphone cable with single shield, high flexible, velvet faint PVC-Jacket.
An economical version of our popular GAC-2 (double shielded). We have saved a shield to make the cable closer to industrial standard economical microphone cables to reduce the price considerably w/o compromising the quality and flexibility.
We have left our unique seperation tube between the conductors and the shield (3) to make a perfect round and stable cable but still light weight and sufficient shielding similar to our OEM 7010x range.
However we consider this cable way above the industrial standard cables in the field using viscose seperation strands as fillers.

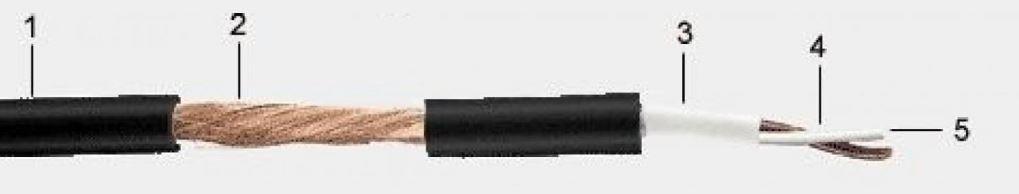

Construction: | ||
| 1 = Jacket: | PVC, 6.00 mm max. Ø YM2 +/- 2% (new diameter May 2021) | |
| 2 = Shield: | Copper wires, (0.10 mm) 100% coverage | |
| 3 = Filling material: | Seperation tube PVC 3.10 mm Ø, white | |
| 5 = Insulation: | PVC 1.20 mm Ø white & brown (YI1) | |
| 6 = Conductor: | Stranded bare copper wires 48 x 0.07 mm (0.20mm²) 48x41AWG = (24AWG) | |
Technical Datas: | ||
| Conductor resistance: | < 92 ohm/km | |
| Shielding resistance: | < 35 Ohm/km | |
| Insulation resistance: | > 200 MOhm/km | |
| Capacitance: | cond/cond: | < 125 nF/km |
| cond/shield: | < 189 nF/km | |
| Test voltage: | cond/cond: | 500 veff |
| cond/shield: | 2000 veff | |
| Temperature range: | flexi-installed: | -5° to +50° C |
| fix-installed: | -30° to +70° C | |
Ordering Information:
