Gotham Audio 10421 GAC-2 V1, improved noise performance
70.500,00 ₫
SKU
10421-GAC-2-Black

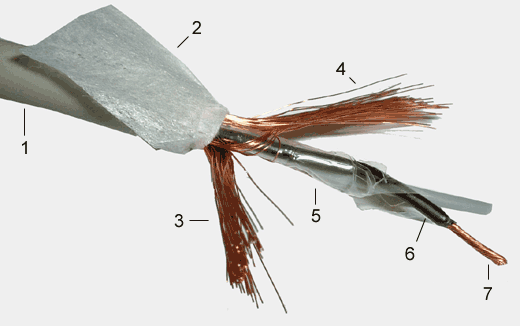

Construction: |
||
| 1 = Jacket: | PVC, Ø 5.4 mm, black | |
| 2 = Shield No. 1 | Bare copper wires (0.10 mm) 100% coverage | |
| 3 = Shield No. 2 | Bare copper wires (0.10 mm) 100% coverage | |
| 4 = Noise cancellation: | PVC, conductive, Ø 3.1 mm, black tube | |
| 5 = Insulation: | PE, white and brown Ø 1.2 mm, wrapped, twisted pair | |
| 6 = Conductor: | Stranded bare copper wires 48 x 0.07 mm (0.20 mm²) 48x41AWG = (24AWG) | |
Technical Datas: |
||
| Conductor resistance: | < 92 ohm/km | |
| Shielding resistance: | < 20 Ohm/km | |
| Capacitance: | cond/cond: | max. 70 nF/km |
| cond/shield | max. 118 nF/km | |
| Test voltage: | cond/cond: | 500 veff |
| cond/shield | 2000 veff | |
| Temperature range: | flexi-installed: | -5° to +50° C |
| fix-installed: | -30° to +70° C | |
