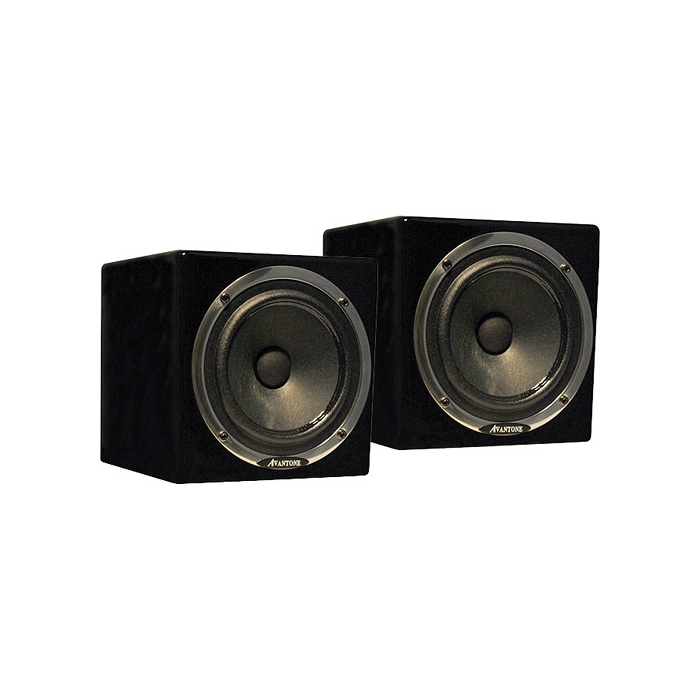

The Avantone Active MixCube Powered Full-Range Mini Reference Monitors are a pair of professional studio reference monitors specifically tailored to produce the useful musical range of 90 Hz to 17 kHz. In today's world of high definition media, it is still necessary to mix music that translates and sounds as defined on lo-fi speakers such as laptops and smartphones, as well as hi-fi full-range HD audio systems. The Active MixCube provides audio engineers with accurate and detailed mid-frequency referencing, leaving the larger 2-way and 3-way monitoring systems to bass and high-frequency referencing.
The Avantone Active MixCube Powered Full-Range Mini Reference Monitors are a pair of professional studio reference monitors specifically tailored to produce the useful musical range of 90 Hz to 17 kHz. In today's world of high definition media, it is still necessary to mix music that translates and sounds as defined on lo-fi speakers such as laptops and smartphones, as well as hi-fi full-range HD audio systems. The Active MixCube provides audio engineers with accurate and detailed mid-frequency referencing, leaving the larger 2-way and 3-way monitoring systems to bass and high-frequency referencing.
The Active MixCube features a powerful and accurate 60W (RMS) amplifier and 5.25" driver enclosed in a handsome MDF cabinet with a black finish. The input connector is an XLR-combo connection with XLR & 1/4" phone inputs that accept balanced and unbalanced signals. There is a variable gain control dial and on/off switch. Each speaker features its own external power supply with a 10' (3m) AC cable attached to the power supply, and an additional 10' (3m) cloth multi-pin cable that connects the power supply to the speaker. The Active MixCube's small size make them easy to place in any studio setting, and as an added feature, Avantone installed 5/8"-27 thread microphone stand fittings to the base of each speaker.
Mid Referencing
Studios primarily use large 2-way & 3-way monitors designed to represent a wide range reference viewpoint at higher listening levels. However, in this newly developing age of High Definition Audio, there is still a need to also hear what your mix will sound like when played back over small bass-challenged systems such as televisions, clock radios, computers, car stereos, iPod docking stations, etc. It is important to make mixing judgments based partially on listening to reference monitors that will not impart tonal anomalies caused by crossovers or inferior full range drivers. Listening tests reveal that the MixCubes have a smooth, more open, transparent top end response with extended bass while maintaining their basic original character.
Combo XLR Input
This combo XLR input accepts a balanced male XLR plug as well as a 3-conductor balanced TRS ¼" or 2-conductor unbalanced TS ¼" male plug. For unbalanced operation with a TS connector, the minus signal is automatically grounded.
System Gain
This variable control adjusts the sensitivity of the signal that appears at the input. Rotating the control clockwise increases the sensitivity while a counter-clockwise rotation decreases sensitivity. The adjustable gain range is from -30 to +6 dB. A setting of +6 allows a full, unimpeded signal to be sent to the amplifier.
AC Input
This input is only to be used with the proprietary Avantone power supply. Tighten the cable/connector securely for reliable operation. There is a switch on the power supply for selecting the proper AC/main operating voltage for your location.
Ground Lift Switch
By engaging this switch the pin 1 shield is lifted at the input jack. This can be used to aid in ground loop control of the incoming analog line signal.
Flexible Placement
The bottom mic stand mounts allow you creative positioning options in unusual studio playback situations.
AVANTONE MixCubes Active Mini Reference Monitors Features:
System Type: Active (Self-powered) shielded full-range stereo pair
Mosfet amplifier in each MixCube
Locking power input cable
5.25" shielded full-range 8 ohm drivers
6 1/2" Cube cabinet with multiple coats of "Retro-Cream" high gloss lacquer finish
Precision-milled, high-rigidity MDF cabinet sides and baffle for low resonance
Radiused corners and edges reduce edge diffraction for better imaging
Custom paper cone uses New Zealand pulp with mica fibers added for light weight and rigidity
High-Rigidity die cast Aluminum frame with polished mounting bezel
Anodized milled Aluminum Terminal Plate
1/4" soft neoprene pad is recessed into the cabinet base to serve as a non-skid acoustic isolator
Standard size (5/8"- 27 threading) female microphone stand mount built into the cabinet base
Frequency Response: 90Hz-17kHz (Accessible Musical Range)
Impedance: Nominal 8 ohms
Max SPL: 104dB 1 meter @ 1%THD (PINK NOISE)
Amplifier: Class A/B
Amp Power: 60 watts RMS@ .005% THD (1KHz)
Inputs: XLR and TRS (combo jack) +4 balanced and -10 unbalanced
Cabinet dimensions: 165 x 165 x 165 mm (6.5" x 6.5" x 6.5")
