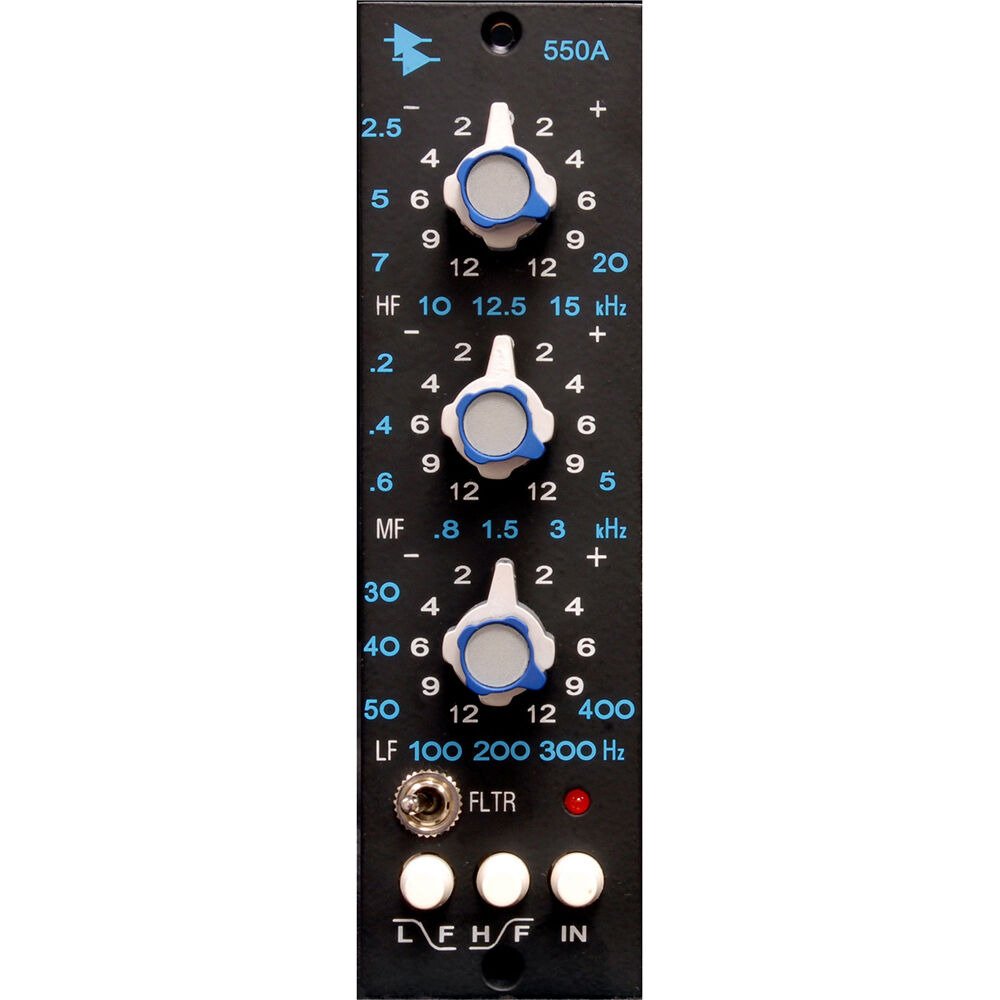

Name: API 550A 500 Series 3-band Equalizer
Brand: API Audio
SKU: 550A
Price: 33600000 VND
Availability: OutOfStock

Experience the simplicity and acoustic superiority of a legendary EQ with the API Audio 550A, a 3-band EQ module for 500-series racks with ±12 dB of boost/cut per band. With switchable shelf/peak operation on the low and high bands and proportional Q circuitry for narrowing the filter bandwidth at the extremes, the 550A is a versatile and intuitive EQ module.

Each band provides seven selectable frequency centers and 21 steps of EQ adjustment. The 550A sports high-headroom discrete circuitry, offering up to 30 dB of input gain before clipping. A small toggle switch can be used to inset a bandpass filter to the 550A signal path, and the bandpass filter can be inserted independently of all other EQ settings.

A Legendary Equalizer

Few equalizers enjoy the respect and admiration of the coveted API 550A. Designed by the now-legendary Saul Walker in the late ’60s, the discrete 550A was first used as a modular OEM equalizer.

As the industry rapidly embraced the sonic quality of the 550A, it quickly found its way into many custom console designs by Frank DeMedio and other leading engineers. Many of these consoles are still in use today. Forty years later, the 550A remains the standard against which other EQs are measured, and it has played a major role in the recording industry for decades.

Elegant yet Powerful Design

The 550A provides reciprocal equalization at 21 points in 5 steps of boost to a maximum of 12 dB of gain at each point. The fifteen equalization points are divided into three overlapping ranges. The high and low frequency ranges are individually selectable as either peaking or shelving, and a bandpass filter may be inserted independently of all other selected equalization settings.

Frequency ranges and boost/cut are selected by three dual-concentric switches, and a push button in switch allows the EQ to be silently introduced to the signal path. A small toggle switch is used to insert the bandpass filter into the 550A.

500-Series Version of Famed 550A EQ
3-Band EQ Control
7 Selectable Frequency Centers per Band
Reciprocal and Repeatable Filtering
±12 dB per Band
Shelf/Peak Switching on Bands 1 and 3
Proportional Q Narrows Bandwidth
High Headroom: +30 dB Clip Level
Stepped Controls: 21 Steps per Band
Switchable Bandpass Filter

General

Input Impedance	High Level: 66 Kilohms Low Level: 17 Kilohms
Output Impedance	<85 Ohms
Insertion Loss	None (Bridging)
Frequency Response	30 Hz to 20 kHz (±0.5 dB)
Noise	-90 dBm
THD	0.05% (at +4 dBm) 0.07% (at +18 dBm)
Maximum Input Level	+30 dBm

Power

Power Source	Proprietary Interface
Operating Current	70 mA

Physical

Mounting	Front: 2x 500-Series Rack Screw
Color	Tan/Beige
Material of Construction	Metal
Dimensions	7.75 x 5.25 x 1.5" / 19.68 x 13.34 x 3.8 cm
Weight	2 lb / 0.9 kg
