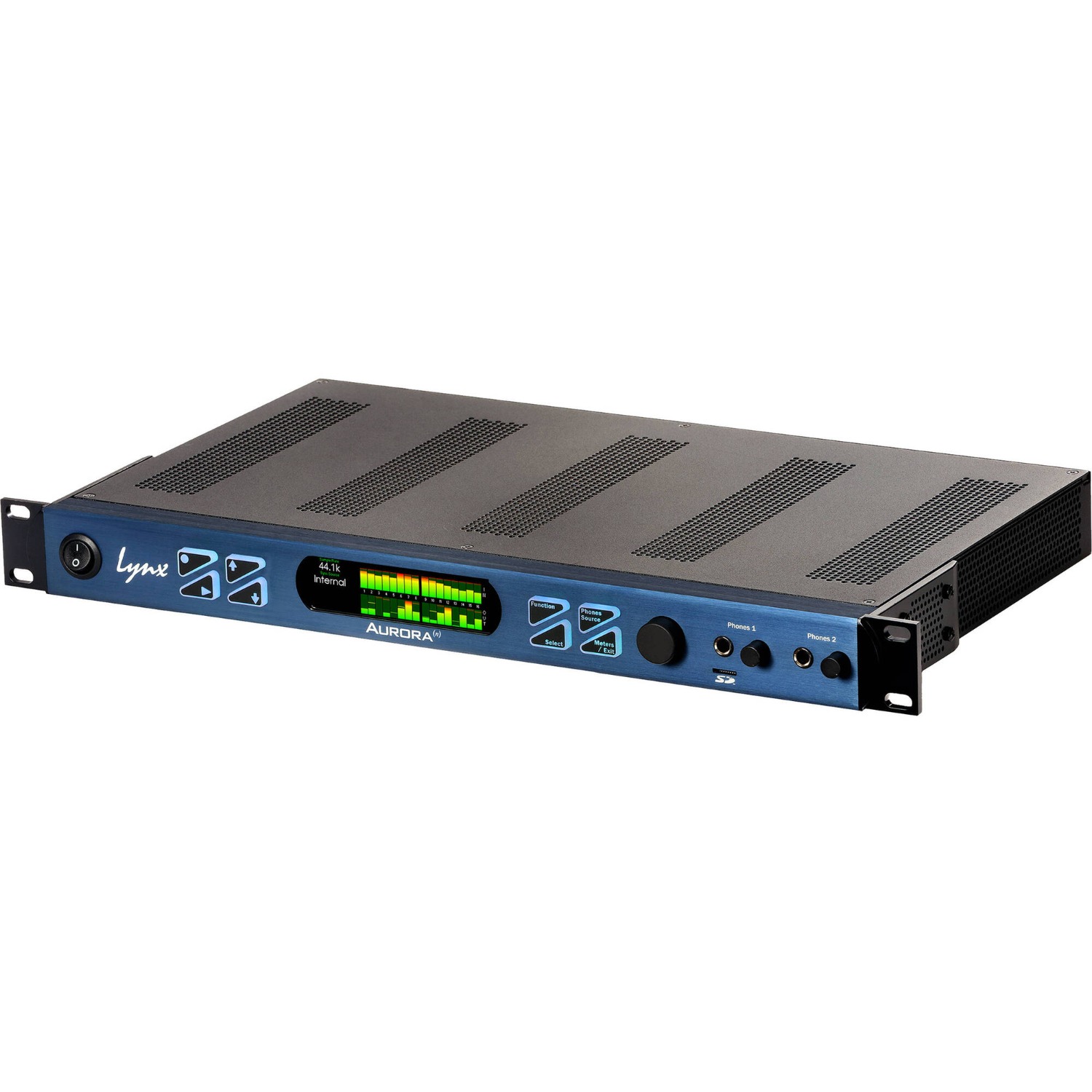

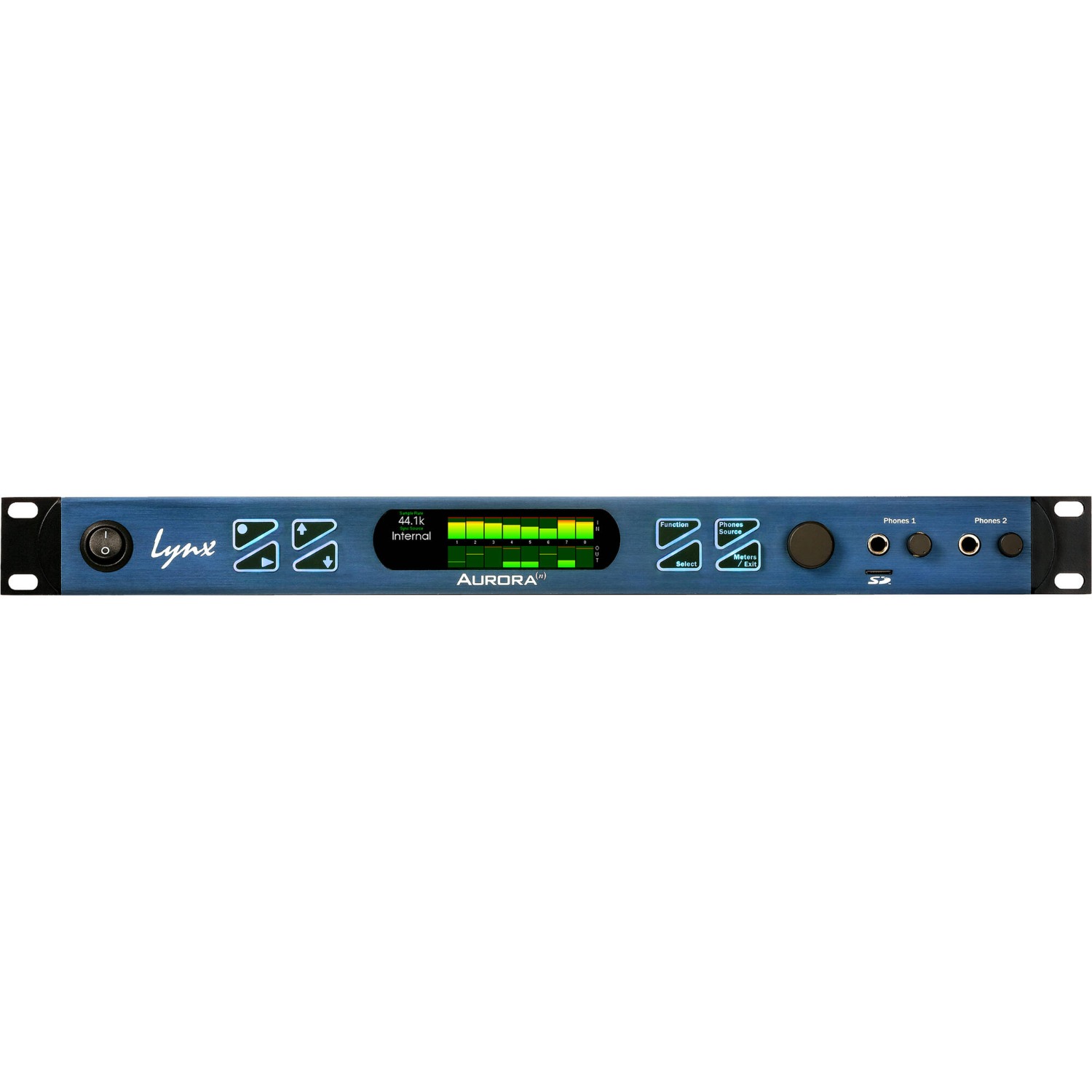

Lynx Aurora (n) 16-TB3 16-channel AD/DA Converter with 2x LM-PRE4 & Thunderbolt 3 Interface

• The two LM-PRE4 modules feature four high-performance mic / line / Hi-Z preamps each.
• They are sonically matched for the Aurora⁽ⁿ⁾ with all the transparency, detail, and flexibility you've come to expect from Lynx.
• When combined with the built-in microSD recorder, the LM-PRE4 preamps transform the Aurora(n) into a standalone mobile recording device.

• The LT-TB3 card provides digital input and output to Windows and Mac computers using Thunderbolt 3 ports.
• The two-port card supports daisy-chaining Aurora⁽ⁿ⁾ converters (up to six total) with certified Thunderbolt devices, plus a display on both Mac and Windows computers.
• Thunderbolt 3 can support up to a 40 Gb/s bidirectional data rate and is primarily designed to handle the bandwidth demands of multichannel audio and 4K video.

• The analog signal path for each channel has been designed as a self-contained and shielded circuit. Each channel pair has its own dedicated conversion device. This offers many sonic advantages like significantly reducing crosstalk and distortion, while increasing dynamic range and performance.

• Proprietary, SynchroLock 2 high-performance sample-clock technology provides a whopping 300,000:1 reduction in jitter, 5-second lock time, and absolute accuracy.
• Wordclock I/O provides one input and one output on BNC connectors.

• Start with eight, sixteen, or twenty-four channels and later add additional groups of eight channels for up to thirty two total.

Add Modules:

• Digital I/Os, mic preamps; more are being designed now for future release.

Add Connectivity Options:

• Dante, ProTools | HD, or USB via LSlot cards (available separately).

• Mastering-quality, 16-in / 8-out AD/DA conversion at up to 24-bit / 192 kHz.
• 8 analog ins and 8 analog outs on two DB-25 connectors.
• Two preinstalled LM-PRE4 4-channel preamp modules (8 channels total).
• Preinstalled Lynx LT-TB3, two-port Thunderbolt 3 LSlot interface card.
• Wordclock I/O: one input and three outputs on BNC connectors.
• Onboard microSD player/recorder capable of up to 32 channels of direct recording and playback.
• Two audiophile-grade headphone outputs with independent volume control.
• 480 X 128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle.
• Universal power supply built in, no wallwarts.
• 1 RU rack-space design with no fan provides silent operation, so you can keep unit in the recording room, with no need for isolation from distracting fan noise.
• Full Windows and OSX compatibility.
• Designed and built in Southern California, USA.
