10550 GAC-2111 Rebuilt of vintage EMT-2111 cable with ultrastrong Polyuretane jacket
78.000,00 ₫
SKU
10550
Rebuild of the legendary EMT-2111 audio cable with ultrastrong PUR-jacket. Balanced double shielded audio cable! Very flexible. Professional installation cable with small diameter, PE-insulation for low capacity. Ideal for fixed installations and rack-wirings, also ideal for outdoor use and installations where mechanical strength of the cable is needed. This vintage design was available from Germany based turntablemaker EMT and is still used for turntable interconnect leads with phono connectors.

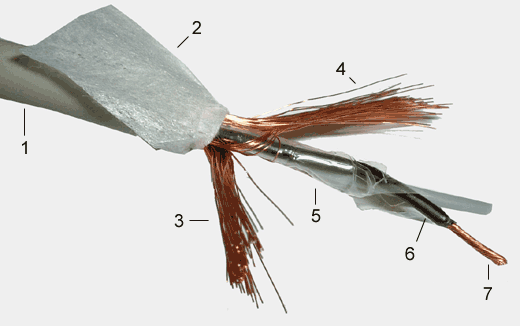

Construction: |
||
| 1 = Jacket: | PUR, Ø 4.5 mm, grey (light) | |
| 2 = Viscose fiber coat: | Counter wrapped to the shields | |
| 2 = Shield No. 1: | Bare copper wires (0.10 mm) 100% coverage | |
| 3 = Shield No. 2: | Bare copper wires (0.10 mm) 100% coverage | |
| 4 = Separation: | PE-coat | |
| 5 = Insulation: | PE, Ø 1.20 mm, conductors black and white wrapped | |
| 6 = Conductor: (2 Conductors!): | Stranded bare copper wires 28 x 0.10 mm OFC Ø 0.60mm (0.22 mm²) 28x38AWG = 24 AWG | |
Technical Datas: |
||
| Conductor resistance: | < 85 ohm/km | |
| Shielding resistance: | < 20 Ohm/km | |
| Capacitance (at 800Hz): | cond/cond: | < 62 nF/km |
| cond/shield: | < 119 nF/km | |
| Characteristic impedance: | at 20 kHz: | 145 Ohm |
| Test voltage: | cond/cond: | 500 veff |
| cond/shield: | 2000 veff | |
| Operating voltage: | low voltage | |
| Temperature range: | flexi-installed: | -5° to +50° C |
| fix-installed: | -30° to +70° C | |
