GPC 3x1.5mm² Power Cable (85015) Shielded, high flex PVC up to 240Vac
203.000,00 ₫
Còn hàng
Vận chuyển hôm nay nếu đặt hàng trong 14 giờ và 45 phút!
SKU
85015
-shielded,-high-flex-pvc-up-to-240vac.jpg)

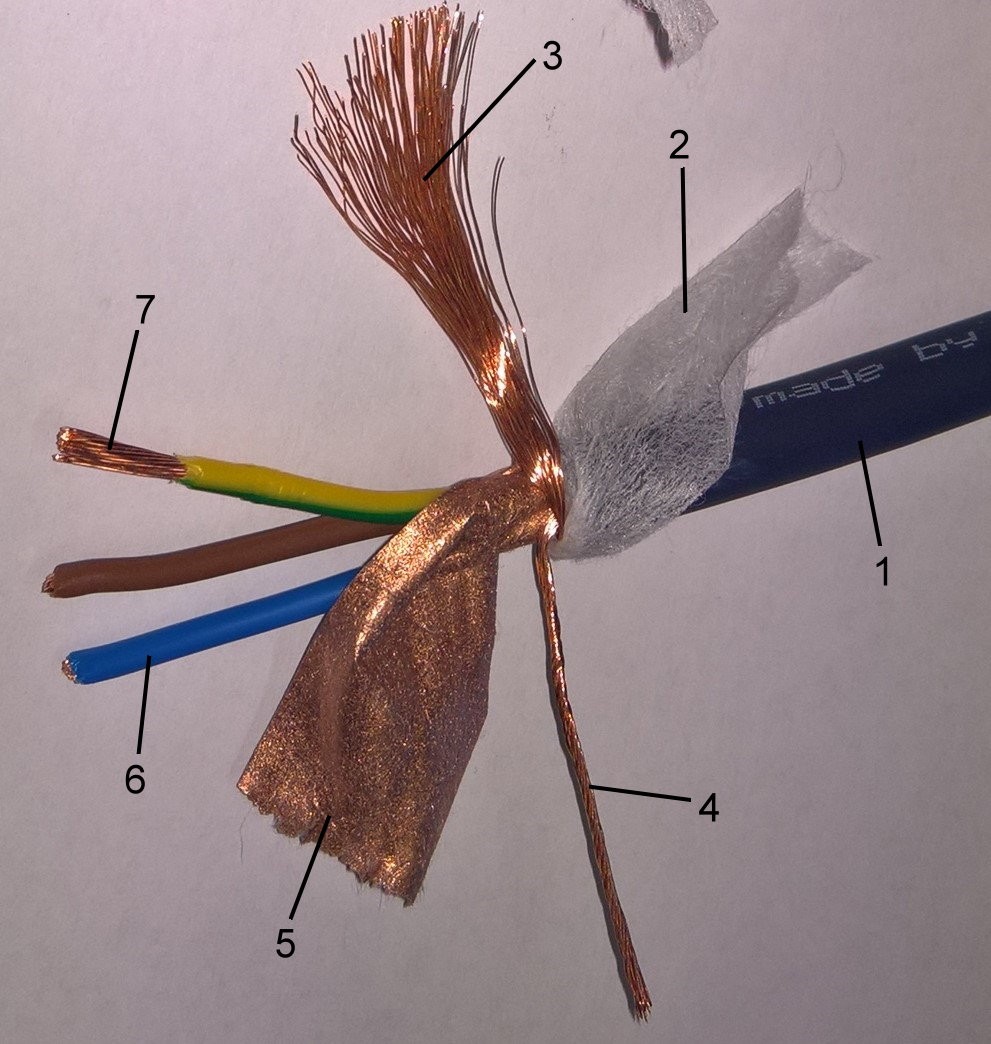

Construction: |
||
| 1 = Jacket: | PVC (YM2) 1.1mm Ø 7.60 mm max., ultrablue RAL5013 |
|
| 2 = wrapping | Non woven fabric tape | |
| 3 = Shield no 2. | Bare copper wires (0.15 mm) 100% coverage S | |
| 4 = Drain Wire | 16x0,19mmØ Cu (Ground) bare copper | |
| 5 = Shield no 1 | K6160 Polyester nonwoven thermally bonded, both sides copper coated (see below) | |
| 6 = Insulation 3x: | PE – 2YI 1, 0.43mm thickness. Nominal Diameter 2.40 mm, Color code: Blue-Brown-Yellow/Green |
|
| 7 = Conductor 3x: | 27x0,25mmØ "OFC" Cu 1,50mm² bare copper stranded 27x30AWG (16AWG) IEC 60228 Class 5 flexible copper conductor 1,50mm² |
|
Technical datas: |
||
| Conductor resistance: | < 13.30 Ohm/km | |
| Rating Voltage: |
300/500V |
|
| Test Voltage: | 2000 Veff | |
| Temperature range: | -30° to +70° C | |
| Maximum Watts load: | @ current 9.0 Ampere/Line | < 950 Watt |
Ordering Information:
|
Order No.
|
Type
|
Diameter
|
Colour
|
Spool Size
|
Weight/
Spool |
Shipping
Unit |
| 85015 | GPC-3x1.5mm² PVC | 7.6 mm | Marineblue | 100m | 11.00 kg | 2x100m |
| 85025 | GPC-3x2.5mm² PVC | 9.5 mm | Marineblue | 100m | 16.50 kg | 2x100m |
| 85215 | GPC-3x1.5mm² FRNC | 8.2 mm | Marineblue | 100m | 10.90 kg | 2x100m |
| 85055 | GPC-3x5.5mm² PVC | 13.0 mm | Marineblue | 100m | 38.00 kg | 1x100m |
Reussen shielded power cable for mains power to your Hi-End Audio Gear. This cable ensures best transport of needed energy (up to 900 Watt and 9 Ampere current) to our device but due to our exklusive Reussen shielding and conductive seperation layer, this is protecting your signal cables nearby even better from humm and RF noise generated by the 50Hz signal going tru the power supply cable.
