Focusrite iTrack Dock Studio
The iTrack Dock Studio Pack from Focusrite is a kit designed to provide you with the tools to make professional iPad recordings.
Get everything you need to easily make studio-quality recordings on iPad, all in one box: a dedicated iPad recording dock with loads of connectivity, a condenser microphone and closed-back headphones, plus an XLR cable and mic stand clip.
iTrack Dock gives you two microphone preamps from the best-selling Scarlett range with 48V phantom power. It also has two line/instrument (DI) inputs and a USB MIDI input, so you can plug in any microphone, instrument or compatible MIDI keyboard, and take full control of your iOS music apps including Garageband, Cubasis and Auria.
iTrack Dock Studio gives you everything you need to get lost in the recording process. Connect the large diaphragm CM25 condenser mic to capture every detail. Experience natural playback that's true to source by plugging in the studio-quality HP60 closed-back headphones. When you're done, upload your music to Facebook, Soundcloud or YouTube, and share your tracks with friends or release them to the world.

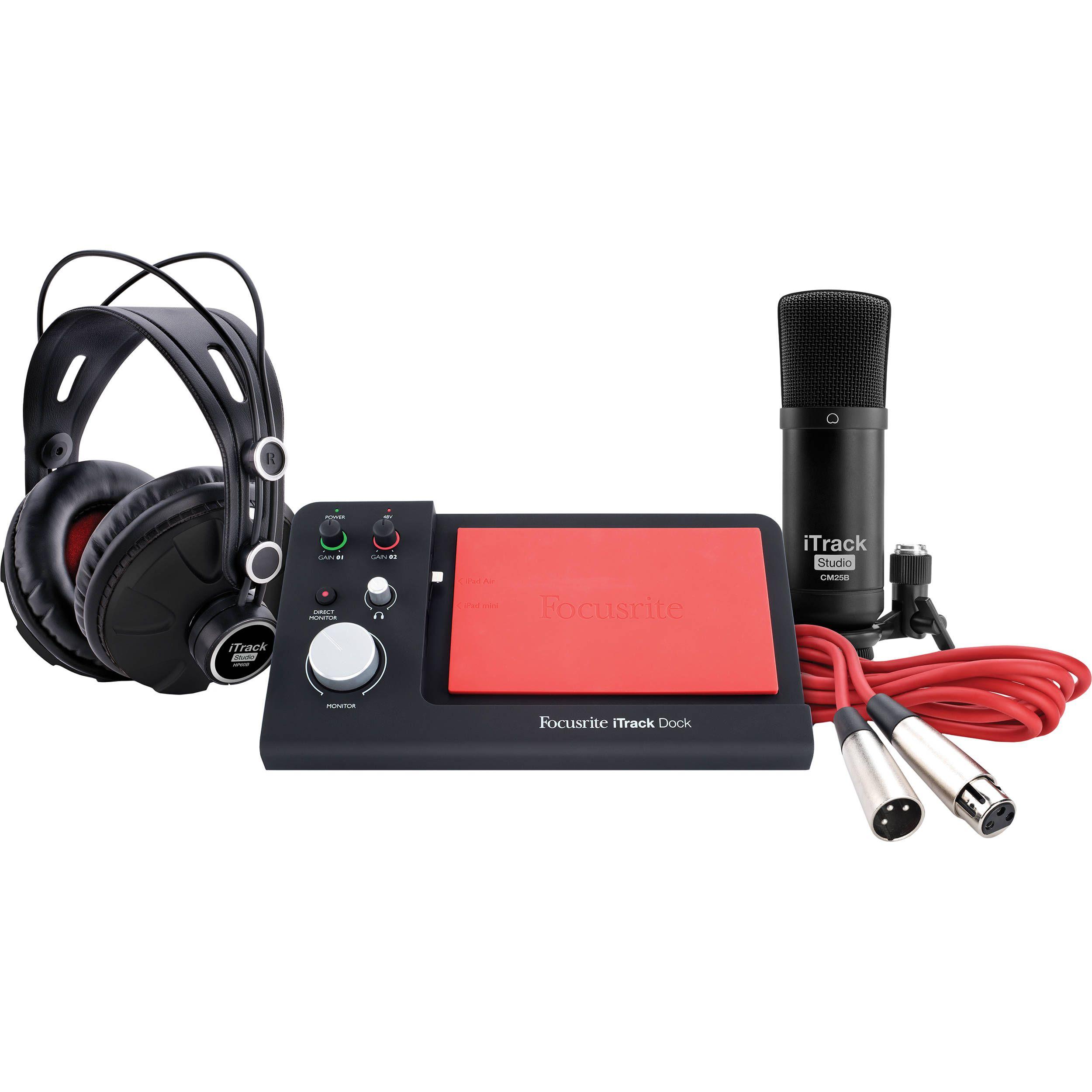

iTrack Dock Studio Pack Includes:
- iTrack Dock
- CM25 condenser microphone
- HP60 closed-back headphones
- 3 metre XLR mic cable
- Stand clip for attaching the microphone to a stand
Contains Everything You Need
Includes iPad dock, large diaphragm condenser microphone with stand clip, professional closed-back headphones and three metre XLR cable. All you need is a microphone stand and your iPad.
Made For iPad
Dock, charge and record with Focusrite quality sound on any lightning-compatible iPad or iPad mini.
Record with Legendary Sound
Contains two Focusrite microphone preamps; considered by many to be the best in the world. They also provide 48V Phantom power, for use with condenser microphones.
Capture Every Little Detail
Precision digital convertors transform your live performance into studio-quality 24-bit resolution audio, with sample rates of up to 96kHz and an exceptional dynamic range of over 105dB.
Record Stunning Guitar
Capture guitar with stunning clarity, by plugging straight into a high headroom instrument input. Two high quality line level inputs mean you can plug synths, drum machines or any other line level device in as well. Whatever you're recording, the unique rings of light around the input gain controls turn from green to red if you get too loud.
Connect, Charge and Integrate
Charge your iPad, power a USB device and integrate with most class compliant USB MIDI controllers, all without any USB hubs or camera connection kits. Record stunning sound by integrating with your favourite Core Audio apps, including GarageBand, Cubasis and Auria.
Immerse Yourself in Sound
Set the perfect output level using a large control knob and dedicated headphone level controls. Hear exactly what you're playing by activating the direct monitoring function to eliminate latency.
Recording App Included
Download our free record app for iPad, Tape by Focusrite for instant simple recording, mastering and sharing without the complexities of traditional music-making software.
Analogue Input Performance - Mic
|
Frequency Response |
20Hz - 20kHz +/- 0.2 dB (minimum gain) |
|
THD+N |
< -99dB (minimum gain, -1dBFS input with 20Hz/20kHz bandpass filter) |
|
Equivalent Input Noise (EIN) |
< -125dBu CCIR-RMS (measured at maximum gain with 150 ohm termination) |
|
Gain Range |
-4dB to +46dB (dBFS / dBu) ±1dB |
|
Max Input Level |
>+4dBu (at 1% THD) |
Analogue Input Performance - Line
|
Frequency Response |
20Hz - 20kHz +/- 0.2dB (minimum gain) |
|
THD+N |
< -98dB (min gain, -1dBFS at output and 20Hz/20kHz bandpass filter) |
|
Noise (NiPoS) |
<-104 dBFS CCIR-RMS (measured at min. gain with 50 ohm termination) |
|
Gain Range |
-22dB to +28dB (dBFS / dBu) ±1dB |
|
Max Input Level |
>+21dBu (at 1% THD) |
Analogue Input Performance - Instrument
|
Frequency Response |
20Hz - 20kHz +/- 0.2dB (minimum gain) |
|
THD+N |
<-90dB (min gain, measured at Max Input Level -1dB, 20Hz/20kHz bandpass filter) |
|
Noise |
<-104dBu CCIR-RMS (measured at min. gain) |
|
Gain Range |
-16dB to +34dB (dBFS / dBu) ±1dB |
|
Max Input Level |
>+14dBu (at 1% THD) |
Analogue Output Performance
|
Nominal Output Level |
0dBFS = >+10dBu, balanced |
|
Frequency Response |
20Hz - 20kHz +/- 0.2dB |
|
THD+N |
< -100dB, balanced (0dBFS input 20Hz/20kHz bandpass filter) |
Digital Performance
|
Clock sources |
Internal clock only |
|
D-A Dynamic Range |
105dB 'A-weighted' (all outputs). Converter chipset D-A dynamic range 114dB |
|
Supported sample rates |
44.1 KHz, 48 KHz, 96 KHz |
Input Metering
|
Ring LED lit Green |
Signal present (-24 dBFS) |
|
Ring LED lit Red |
Signal overload (0dBFS), peak held for approximately 1 second |
