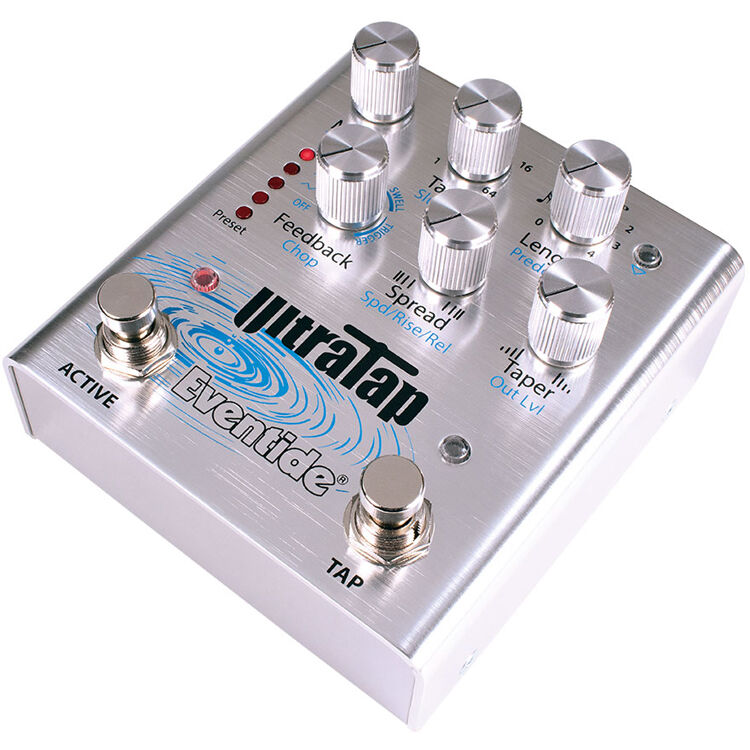

Eventide UltraTap Multitap Effects Pedal
The Eventide UltraTap is a multi-tap effects pedal that puts a wide range of sound sculpting possibilities like delay, reverb, and modulation, right at your feet. Based on the vintage Echoplex tape-head delay, the UltraTap expands on that original concept, letting you add as many tape heads (taps) as desired while also giving you control over the timing and output level. Added controls for Spread, Slurm, and Chop greatly expand the sonic potential.
The Eventide UltraTap is a multi-tap effects pedal that puts a wide range of sound sculpting possibilities like delay, reverb, and modulation, right at your feet. Based on the vintage Echoplex tape-head delay, the UltraTap expands on that original concept, letting you add as many tape heads (taps) as desired while also giving you control over the timing and output level. Added controls for Spread, Slurm, and Chop greatly expand the sonic potential.
The Active switch can be set to momentary or latching modes and can function as a bypass switch or preset selector. The Tap switch lets you set delay times and toggle the Active switch between Active and Preset modes. Like the other members of Eventide's dot9 Series, the UltraTap offers front-panel access to 5 presets. These can be backed up and swapped out via the USB port using the Eventide Device Manager (EDM app) software for Mac or PC, which also allows you to set up the MIDI functions. Up to 127 presets can be stored and accessed via the EDM app or through MIDI.
The UltraTap offers mono and stereo modes, instrument and line level options, and an expression pedal input for additional control over volume levels and group parameters, for sweeping sound changes while you play. A 9V power adapter is supplied.
- Control the stereo image of taps to alternate between hard panned and mono
- Five presets loaded at your feet with dozens more available with Eventide Device Manager (EDM) software
- Dual-action Active footswitch is latching or momentary
- Onboard LFOs and envelopes to chop the sound source into stuttered rhythms
- Rear panel Guitar/Line switch for matching levels of guitars, synths, FX loops, or DAW interface
- Map any combination of parameters to an expression pedal
- Use a single aux switch to Tap Tempo or a triple aux switch for easy preset changing (up/down/load)
- MIDI capability over TRS (use with a MIDI to TRS cable or converter box) or USB
- Multiple bypass options: Buffered, Relay, DSP+FX, or Kill/dry
- Catch-up mode helps dial in your sound when toggling between presets/parameters
- Eventide Device Manager is a PC or Mac application for software updates, system settings, and creating/saving presets
- TAPS: Selects up to 64 taps to create simple repeats or morph delays into chorus and reverb
- SLURM: An exclusive and innovative control that smears/slurs taps together to create truly unique reverbs and choruses
- FEEDBACK: Unlocks further tone shaping capability.
- CHOP and SPD/RISE/REL: Combine to allow unusual and expressive modulation of the taps based on LFO shapes or the audio’s envelope
- SPREAD: Controls the distance between taps. With the knob centered, the taps are equally spaced. Turn clockwise and the later taps are bunched together; turn counterclockwise and the early taps are bunched together. Use this control to dial in the perfect rhythmic space between taps
- TAP: Footswitch allows you to set the tempo of the taps
- Creates Delay, Reverb, and Modulation FX
- For Guitars, Synths, Drums, and More
- Onboard LFO and Envelopes for Modulation
- Control Stereo Image, Panning FX
- Spread, Slurm, and Chop Controls
- 5 Presets from Panel + 127 via App/MIDI
- Guitar/Line Level Switch
- Latching or Momentary Footswitch
| Connectors | |
| Analog I/O | |
| Switches | |
| USB | |
| Power | |
| Dimensions | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
