Pedalboard Power to the Max

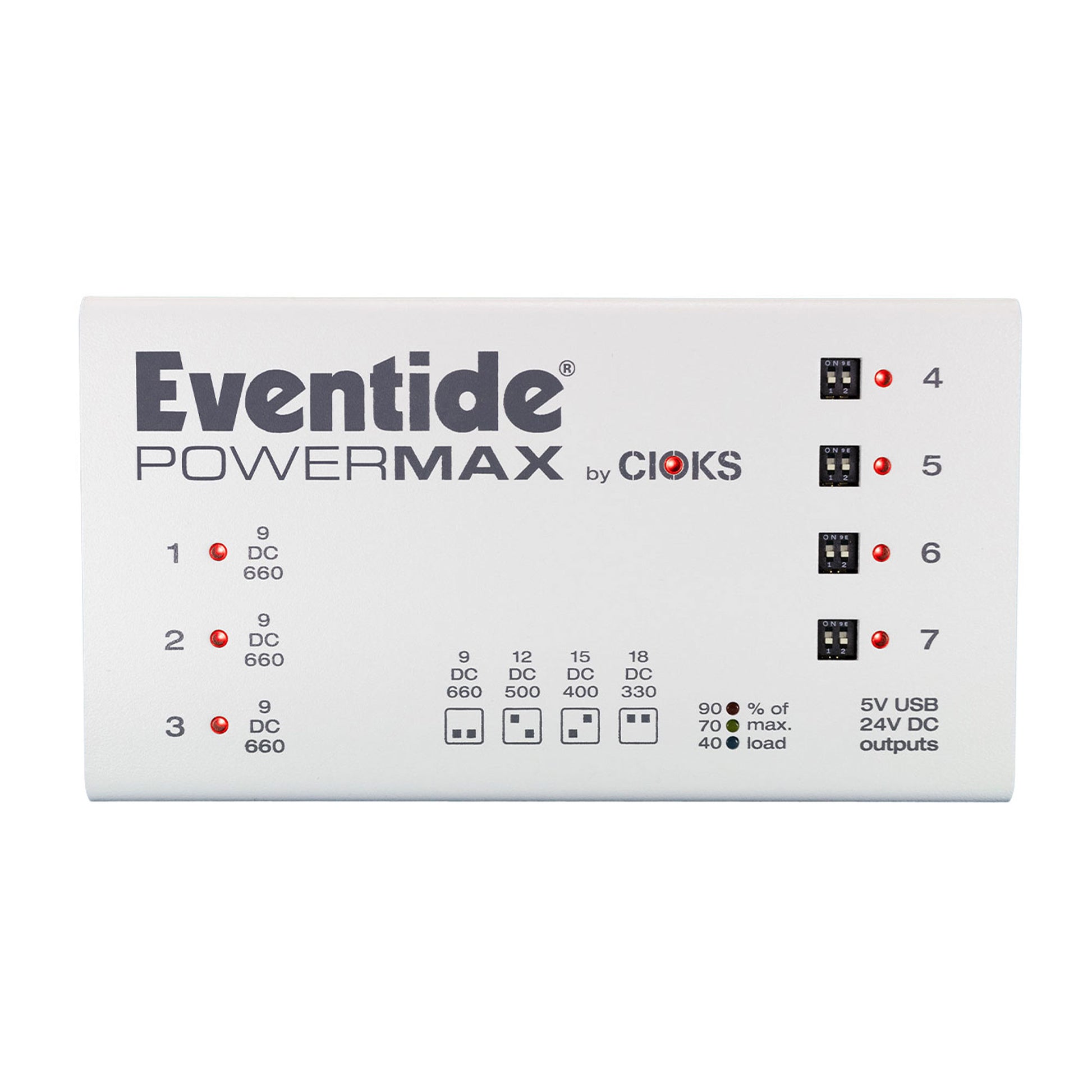

PowerMax sets the new standard for versatility and performance in a trim, light and easy to mount pedalboard power supply. PowerMax’s state-of-the-art design ensures your pedals will achieve maximum fidelity. PowerMax can power up to 7 high current effect pedals and simultaneously charge your smartphone or tablet. Weighing only 1.1lb and 1" thick, it’s a fit companion to H90, H9 or any other pedals that grace your pedalboard. Features a state-of-the-art universal power supply (85-265V) which can be used worldwide.

PowerMax mounts easily to Pedaltrain or Temple pedalboards with the included screws and template.

Features

• 24V DC 2A DC Aux isolated outlet for PowerMini Expander (adding 4 additional outputs) or other high-power pedals
• 7 isolated DC outlets at 6W each: 3 outlets with 9V DC 660mA; 4 outlets each selectable with either 9V, 12V, 15V, or 18V up to 660mA
• Powers multiple Eventide, Strymon and other high current pedals
• Smallest and lightest in its class - only 1" thick and 1.1lb
• USB outlet for charging a smartphone or tablet (max. 1A)
• Use anywhere in the world, mains input voltage 90-265V AC
• Ultra-low noise achieved by multi-stage filtering
• Individual status LED on each outlet and global status LED
• State-of-the-art 2-stage switch-mode power supply topology
• Mounting hardware for Pedaltrain and Temple boards included
• Optional GRIP bracket provides drill-free mounting on Pedaltrain.
• Built-in true power meter showing the total load

PowerMax includes 13 Flex cables:

• 1 x 4030-L 5.5/2.5mm centre positive angled DC plug, 30cm / 12”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
• 2 x 4050-L 5.5/2.5mm centre positive angled DC plug, 50cm / 20”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
• 2 x 4080-L 5.5/2.5mm centre positive angled DC plug, 80cm / 31”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
• 3 x 1030-L 5.5/2.1mm centre negative angled DC plug, 30cm / 12”, black, type 1 (BOSS standard for Rose, MixingLink)
• 2 x 1050-L 5.5/2.1mm centre negative angled DC plug, 50cm / 20”, black, type 1 (BOSS standard for Rose, MixingLink)
• 1 x 2050-L 5.5/2.1mm centre positive angled DC plug, 50cm / 20”, red, type 2
• 1 x 5050-L 3.5mm tip positive angled Jack plug, 50cm / 20”, black, type 5
• 1 x 1035 Split Flex (Y-cable) with two 5.5/2.1mm centre negative angled DC plugs, 30+50cm / 12+20”, black, type 1 (BOSS standard)
