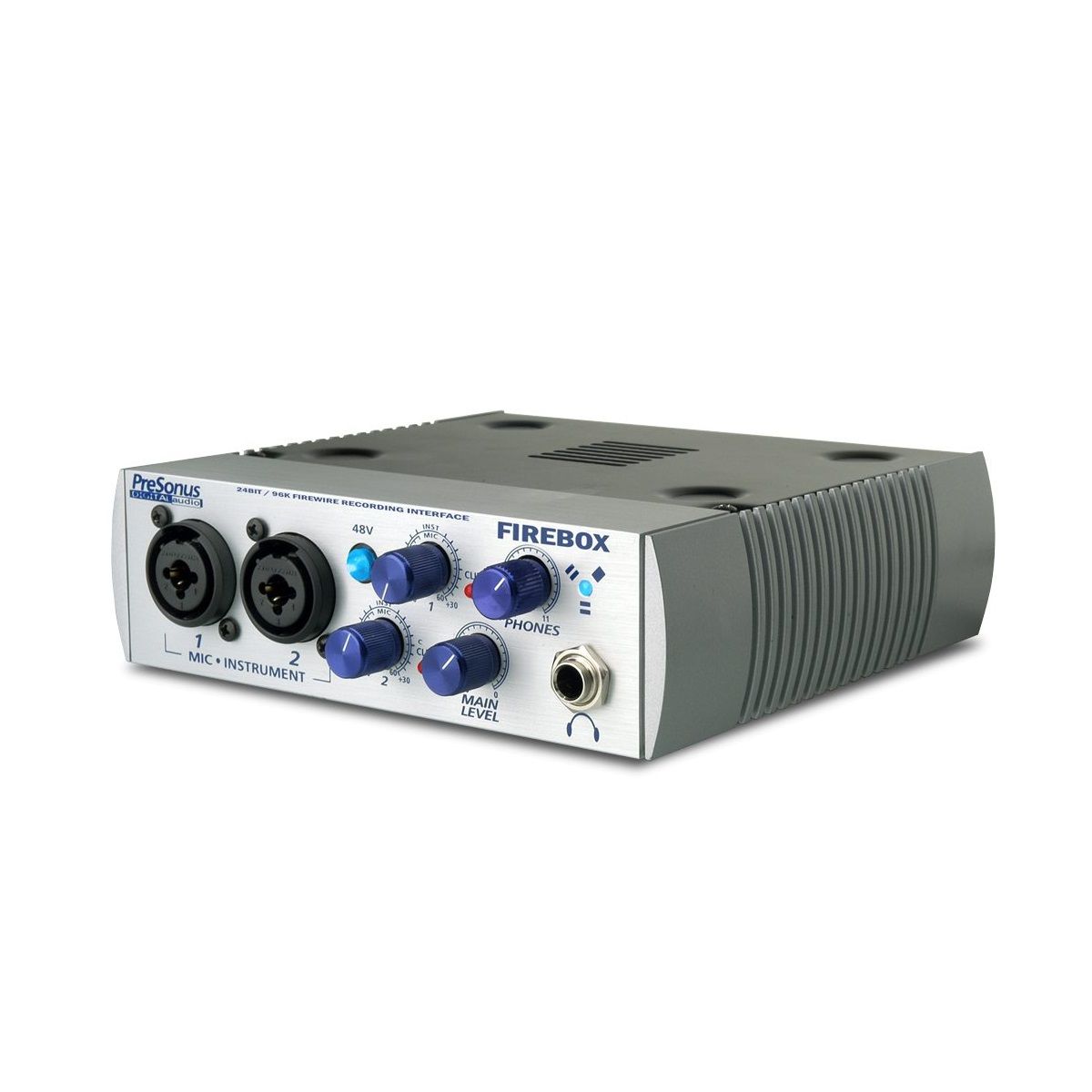

The FireBox is the most powerful 24-bit/96k FireWire recording interface that fits in the palm of your hand.
Hardware
The FireBox has the highest record/playback track count of its size with the ability to record six inputs and playback through ten outputs simultaneously all at pro-quality 24-bit/96kHz. Two ultra-low noise high-headroom microphone/instrument preamplifiers with 48V phantom power are on the front panel for quickly and easily connecting your favorite microphones and instruments. The FireBox also includes a high quality stereo headphone output with volume adjustment on the front panel. The headphone output has its own two-channel driver stream which can be used as a separate stereo bus or two-channel output giving you the ability to send a “cue” mix to the headphone output and a main mix to the main output. Two additional balanced TRS line inputs are located on the rear of the FireBox along with six balanced TRS line outputs. Two channels of S/PDIF input/output and MIDI input/output are also included via DB9 breakout cable. A software router/mixer is also included for further flexibility and power. The 1/3U-wide metal chassis of the FireBox is designed to fit the MAXRACK rack-mounting system from PreSonus and can be racked with the TubePRE, COMP16, EQ3B and HP4 for a neat and compact computer recording system.
The FireBox works with both four and six-pin FireWire (IEEE 1394) connectors and can be powered by either 6-pin FireWire bus power, or powered by an external power transformer.
DSP Mixer Included
The FireBox features a Zero-Latency DSP mixer that allows you to mix all six live inputs with a software output stream, then route that mix to any one of its outputs, as well as assign either that mix or a software output stream to its headphone amplifier. This feature eliminates monitoring through the computer and makes it easy to customize a mix for the artist. It also allows CUEING for DJ’s and live performance where the headphone output can monitor a completely different signal than the MAIN outputs.
- High-Speed FireWire Network Audio Interface
- Plug and play FireWire (IEEE 1394) audio interface
- 24-Bit / 44.1, 48, 88.2, 96K sample rate
- Record/playback 6 inputs/10 outputs at 24-bit/96K
- 2 PreSonus microphone/instrument preamplifiers
- 2 analog line inputs, 6 analog line outputs
- S/PDIF input/output
- MIDI input/output
- Low latency monitoring
- Headphone output
- Powered via FireWire bus or externally
- Software router/mixer
- Windows and Macintosh compatible
- Fits MAXRACK rack mounting system
- FREE PreSonus Studio One Artist recording and production software
Microphone Preamp 1-2 (XLR Balanced) | |
---|---|
Type | Combo XLR Female Balanced / TRS 1/4" |
Frequency Response (±0.5 dB) | 10 Hz to 50 kHz |
Input Impedance (Balanced) | 1300 Ohm |
THD+N (unwtd, 1kHz @ +4 dBu Output, Unity Gain | < 0.005% |
EIN (unwtd, 55dB Gain, 150 Ω Input, 20Hz to 22kHz | -125 dBu |
S/N Ratio (Unity Gain, unwtd, Ref. = +4 dBu, 20Hz to 22 kHz | > 101dB |
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) | >45dB (+12 dB digital boost switch) |
Phantom Power (±2 VDC) | +48 VDC |
Instrument Input | |
---|---|
Type | 1/4" TS |
Input Impedance | 1 Mega Ohm |
Line Inputs 3-4 (1/4” TRS) | |
---|---|
Frequency Response (+0,- 0.5dB) | 20Hz to 50kHz |
Frequency Response (+0/-3.0 dB) | 20Hz to 150kHz |
Input Impedance (Balanced) | 10 KOhm |
THD+N (unwtd, 1KHz @ +4dBu Output, Unity Gain) | < 0.003% |
S/N Ratio (Unity Gain, unwtd, Ref. = +4dBu, 20Hz to 22KHz) | >101dB |
Maximum Input Level (Unity Gain, 1KHz @ 0.5% THD+N) | +20dBu |
Headphone Output | |
---|---|
Type | TRS Active Stereo |
Maximum Output | 150 mW/CH @ 60 Ohm Load |
Frequency Response (±1.0 dB) | 20 Hz - 20kHz |
Digital Audio | |
---|---|
FireWire (IEEE 1394) Speed | 400mbps |
ADC Dynamic Range (Awtd, 48 kHz Sample Rate) | 107 dB |
DAC Dynamic Range (Awtd, 48 kHz Sample Rate) | 110 dB |
Bit Depth | 24 |
Reference Level for 0dBFS | +10 dBu |
Internal Sample Frequency Selections (kHz) | 44.1, 48, 88.2, 96 |
SPDIF 2 channels input/output | via RCA connector |
Power | |
---|---|
Bus Power | Six-pin FireWire port |
Power Supply | Ext. line Transformer, Intneral switching |
Physical | |
Main Chassis | |
Package Type | 1/3U - steel chassis |
Dimensions | 5.5(W) X 1.75(H) X 5.5(D) inches |
Weight | 5.0 lbs |
