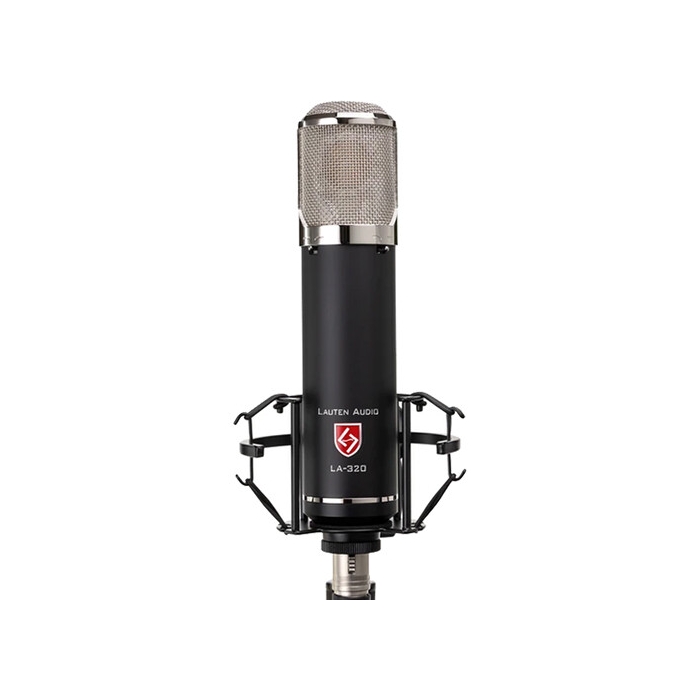

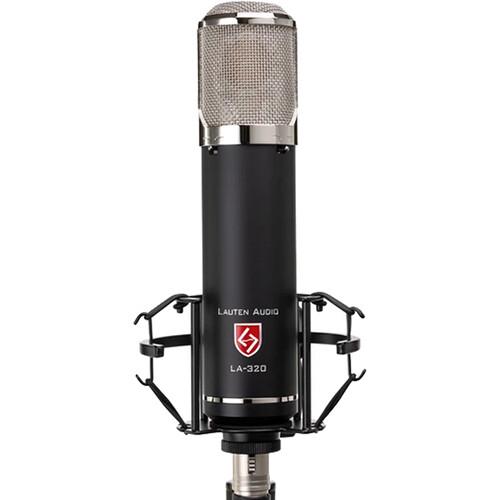

Lauten Audio LA-320 V2 Large-diaphragm Tube Condenser Microphone
The Black Series LA-320 V2 Twin-Tone Large-Diaphragm Tube Microphone from Lauten Audio is a versatile microphone well suited to a wide variety of vocal and instrument recording applications. The mic is capable of modern-sounding recordings with detailed high-end while also offering high- and low-pass filters that allow you to sculpt a warm, classic tone when old-school vibes are called for. The flexible mic can be used on a wide range of sources including vocals, acoustic guitars, cellos, overheads, and piano.
The Black Series LA-320 V2 Twin-Tone Large-Diaphragm Tube Microphone from Lauten Audio is a versatile microphone well suited to a wide variety of vocal and instrument recording applications. The mic is capable of modern-sounding recordings with detailed high-end while also offering high- and low-pass filters that allow you to sculpt a warm, classic tone when old-school vibes are called for. The flexible mic can be used on a wide range of sources including vocals, acoustic guitars, cellos, overheads, and piano.
At its core, the microphone features a 1.3" cardioid condenser capsule with an ECC83 valve and a vintage-inspired output transformer. The 120 Hz low-cut filter helps reduce boomy lows or low-end room rumbles, while the 12 kHz high-cut filter helps to tame bright rooms and harsh sources. A spider shockmount is included to insulate the mic from vibrations and handling noise.
Lauten Audio LA-320 V2 Large-diaphragm Tube Condenser Microphone Features:
- Professional results on vocals and instruments
- Transformer-balanced tube condenser
- Modern tube circuit path inspired by classic German mics
- Custom 1.25-inch center-terminated pressure gradient capsule
- Versatile cardioid polar pattern
- ECC83 dual-triode vacuum tube
- 12kHz lowpass filter tames bright sources for a vintage sound
- 120Hz highpass filter removes room rumble and muddiness
- Ultra-low-noise USA-made JFET amplifier
- Vintage-inspired transformer balanced output
- Frequency response: 20Hz–20KHz
- Dynamic range: 120dB minimum
- Max. SPL: 130dB (0.5%THD@1000Hz)
- Impedance: <200 ohms
- Self-noise level: <17dB-A
- Connector: 5-pin XLR (PSU to the microphone); 3-pin XLR (PSU to preamp)
- Included external PSU, 5-pin cable, shockmount, and storage bag
Lauten Audio LA-320 V2 Specs
| Polar Pattern | |
| Element Type | |
| Controls | |
| Frequency Response | |
| Maximum SPL | |
| Analog Output | |
| Power Sources |
| Polar Pattern | |
| Element Type | |
| Sound Field | |
| Diaphragm | |
| Orientation | |
| Controls | |
| Pad | |
| Filter & EQ | |
| Circuitry |
| Frequency Response | |
| Maximum SPL | |
| Dynamic Range | |
| Equivalent Noise Level |
| Analog Output |
| Power Sources | |
| Operating Voltage | |
| AC Input Power (PSU) |
| Color | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
