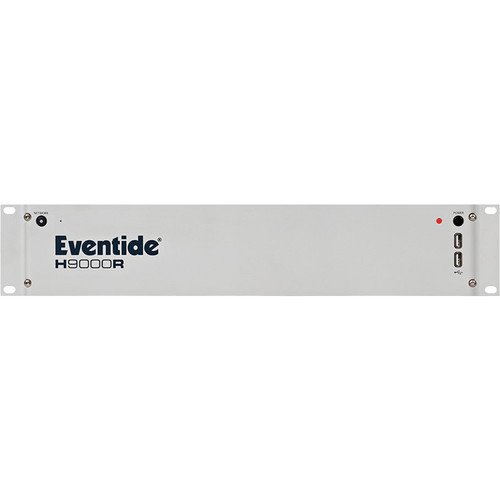

Eventide H9000R Multi-channel Effects Platform
The Eventide H9000R is an expandable 16-channel effects processor designed to deliver efficient, versatile, and customizable audio processing for recording and mixing engineers in broadcast, film and music production, and live stage applications. It features all the power and I/O of the H9000 at a lower price point due to its blank front panel—operation and control requires Eventide's Emote
The Eventide H9000R is an expandable 16-channel effects processor designed to deliver efficient, versatile, and customizable audio processing for recording and mixing engineers in broadcast, film and music production, and live stage applications. It features all the power and I/O of the H9000 at a lower price point due to its blank front panel—operation and control requires Eventide's Emote software.
Its four quad-core ARM DSP processors provide power for up to 16 simultaneous effects instantiated on individual channels or configured as chains with up to four effects per chain. Route 16 channels of audio I/O via USB or up to eight channels via analog, AES/EBU, or ADAT connections.
Run the H9000R at sample rates up to 96 kHz clocked internally or to external word clock. An array of 50 effect types are used in over 9000 presets. Store presets to the internal memory or external USB drives. It allows standalone operation or plug-in use thanks to compatibility with Mac OS X and Windows systems and AAX Native, Audio Units, and VST plug-in formats.
- 16 channels of audio I/O via USB
- Eight channels of audio I/O via analog, AES/EBU, and ADAT
- Two channels audio I/O via S/PDIF
- Three expansion slots enable simple installation of additional I/O cards
- Send, process, and return up to 16 separate channels of individual DAW tracks
- Arrange up to four separate FX chains, each containing up to four separate algorithms routed in series, parallel, and more
- Clock internally or lock to an external clock via BNC word clock I/O
- Versatile preset types allow you to store and recall individual algorithms, FX chains, or entire sessions
- Large color display with convenient controls including a jog wheel, cursor diamond, number pad, multifunction soft keys, and dedicated function keys
- 3-segment LEDs display eight channels of metering information and are always active
- Presets can be loaded from and saved to the internal memory or to a USB drive connected to the front- or rear-panel USB ports
- Supports manipulation via MIDI controller connected to the USB or MIDI port
- Includes USB WiFi dongle for easy access and full control via a network-connected computer
- Search for presets by effect, product, instrument, source character, and more
- Custom map and adjust multiple parameters with a single knob
- Tap tempo, set it manually, or lock it to an incoming MIDI clock
- Supports control via footswitches and expression pedals
- 4 x Quad-Core ARM Processors
- Run up to 16 Simultaneous Effects
- Utilize up to 4 Multi-Effect Chains
- 50 Effects; Over 9000 Presets
- Up to 96 kHz Sample Rate
- Analog, Digital, and USB Audio I/O
- Use Standalone or as a Plug-In
- Requires Emote Software for Operation
- Mac OS X and Windows Compatible
- AAX Native, Audio Units, VST
| System Requirements | |
| Rack Height | |
| Effects Type | |
| Channels | |
| Effect Variations | |
| Presets | |
| User Memory | |
| Inputs | |
| Output | |
| AD/DA Conversion | |
| Sample Rates | |
| USB | |
| MIDI | |
| Word Clock | |
| Ethernet | |
| Pedal Control | |
| Relay Input | |
| External Storage | |
| Expansion | |
| Display | |
| Signal to Noise Ratio | |
| Total Harmonic Distortion | |
| Power Requirement | |
| Dimensions | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
