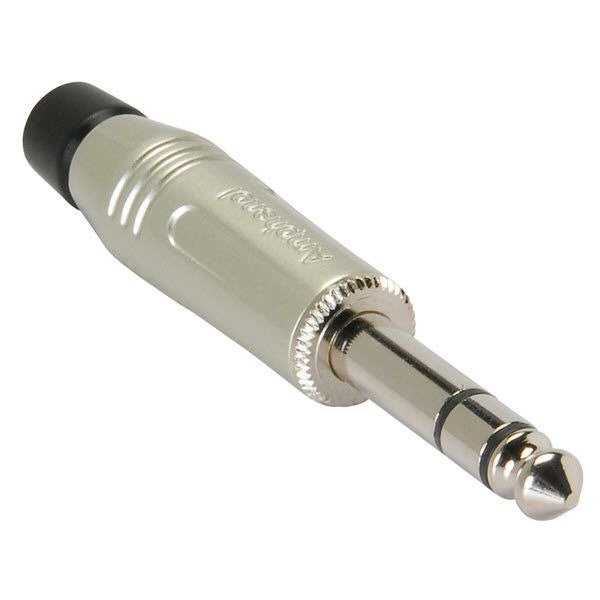

Amphenol ACPS-GN 1/4" Stereo Phone Plug Connector Satin


These Amphenol ACPS-GN 1/4" phone plugs are ideal for repairing or building your own balanced mono cable or stereo headphone cable.

"Sản phẩm Amphenol ACPS-GN 1/4" Stereo Phone Plug Connector Satin đang còn hàng và sẵn sàng gửi vận chuyển"

The satin M Series 1/4" TRS Straight Cable Connector with Nickel Plated Contacts by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications.

It features a diecast shell with precision machined contacts and offers improved solderability. The connector is offered with a flexible grommet to help protect the cable. This M series connector is RoHS compliant.

Number of Contacts: 3 Pole Tip Ring Sleeve (Stereo)
Termination: Solder
Maximum Wire Gauge - Stranded Wire: 3 Pole (Stereo): AWG 18˜1mm
Flammability rating of insulating plastics: UL 94 V-0
Solderability, complies with: IEC 68-2-20
Environmental complies with EU RoHS 2 directive 2011/65/EU
