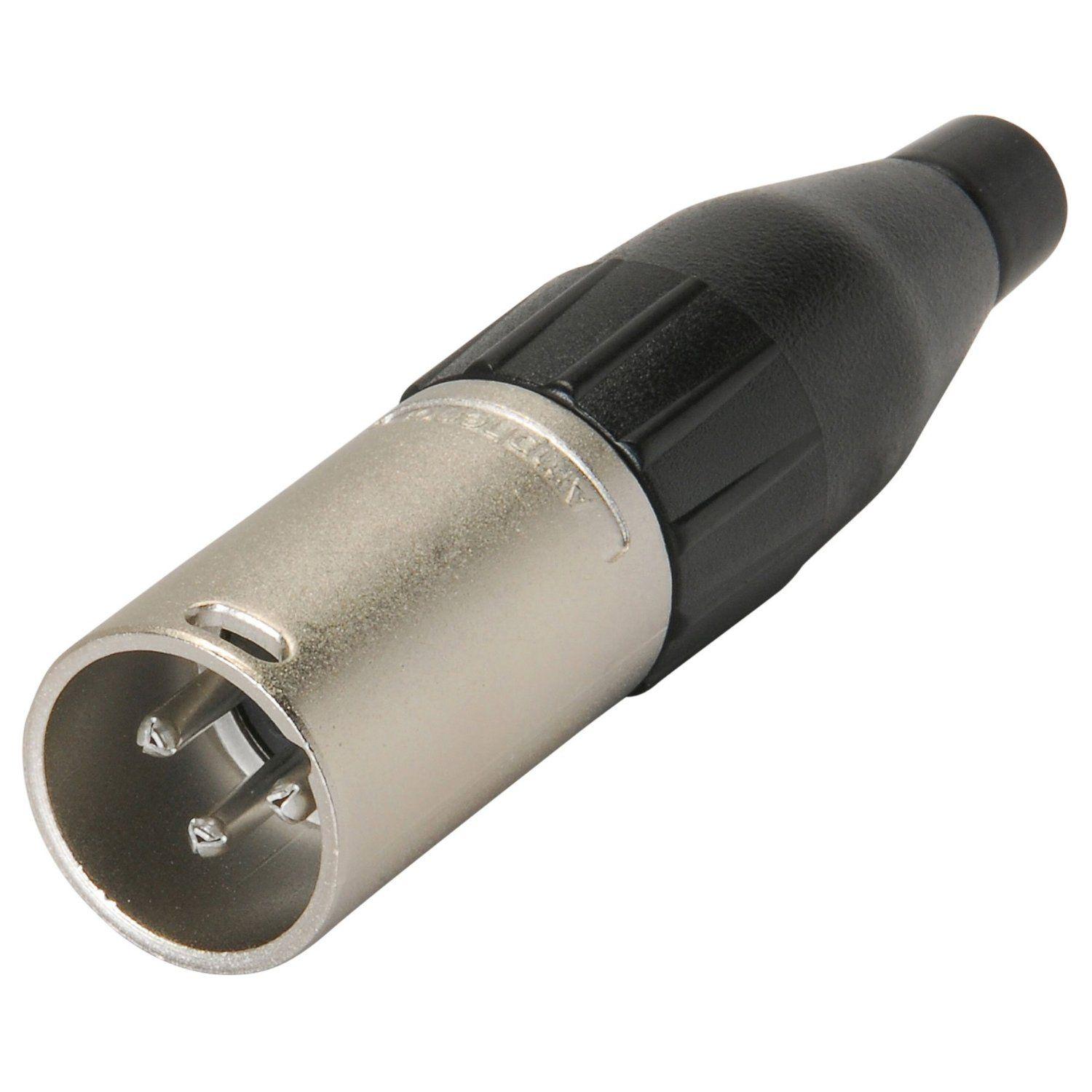

Amphenol AC3M XLR Male Cable Connector
The Amphenol XLR AC3M Male Cable Connector is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications.
The satin nickel AC Series XLR Male Cable Connector with Standard Metal Shell by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a zinc diecast shell, compact 2.5mm solder bucket connections, and Jaws style cable clamps to suit 3 to 8mm cables. It offers an overmolded cable support boot and socket contacts designed for better contact resistance. Precision machined pin contacts are standard. This AC series connector is RoHS compliant.
- Number of Contacts: 3
- Maximum Wire Gauge Stranded Wire: 14 AWG
- Termination: Solder
- Flammability Rating of Plastics: UL 94 V-0
- Environmental: Complies with EU RoHS 2 directive 2011/65/EU
Service Voltage RMS: 133 V (Not suitable for domestic applications above 50 V)
Test Voltage AC RMS: 1400 V
Current Carrying Capacity: Solder 15 A
Printed Circuit Board (PCB): 15 A
Typical Contact Resistance: ≤ 3 m Ω
Insulation Resistance: ≥ 1000 M Ω
Protection Class: IP 40
Operating Temperature: -13°F to 167°F (-25˚C to 75˚C)
Connector Shell: Diecast Zinc Alloy
Shell Finish: Nickel
Insulators: UL94 V-0 PA66, 30% Glass filled
Boot: UL 94 V-0 Noryl N 190 / Santoprene
Boot Finish: Black
Cable Clamp: Standard Solder JAWS: UL 94 V-0 Modified PPO Resin (Black)
Sleeve: Noryl N 190
Male Contact: Stamped solder phosphor bronze
Plating: Tin
Insertion and Withdrawal Force: ≥10 N - ≤30 N
Typical Cable Retention Force: 50 lb to 100 lb (22 kg to 44 kg)
Cable O.D. Range: 0.118 to 0.314" (3 to 8 mm)
Mechanical Operations: 1000 mating cycles Weight - Metal: 0.07 lb (31 g)
