10.900.000,00 ₫
SKU
WA12-500

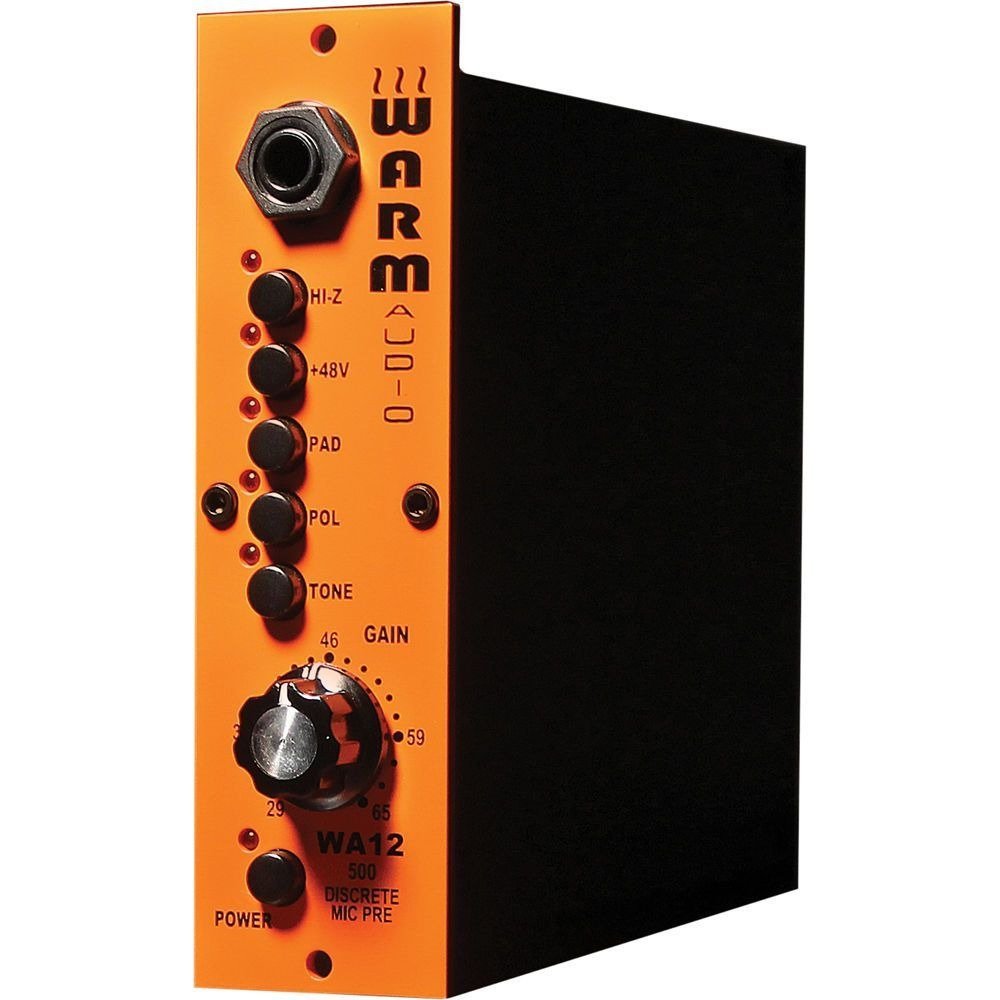

The WA12 500 Series Microphone Preamplifier Microphone Preamplifier from Warm Audio is a single-channel 500 series microphone preamplifier.
OVERVIEW
The WA12 500 Series Microphone Preamplifier Microphone Preamplifier from Warm Audio is a single-channel 500 series microphone preamplifier based on the API 312 design. It is capable of up to 71dB of gain, and is designed to provide a warm and colored signal path for your input sources. The preamp has a switchable input impedance, labeled Tone on the front-panel. The impedance switches from 600 to 150 ohms, resulting in a warmer tone from both the mic and Hi-Z inputs.
Type | Fully discrete 312-style microphone preamplifier |
Input | 1x rear-panel combo balanced XLR/TRS microphone & Hi-Z input 1x front-panel 1/4" (6.3 mm) 2 MΩ Hi-Z input (Sends instrument signal through entire circuit including both Cinemag Transformers and the discrete operational amplifier) |
Output | 1x balanced XLR output 1x balanced 1/4" (6.3 mm) output |
Gain | 71 dB |
Transformer | Input & Output: CineMag |
Input Impedance | Switchable via the Tone Button: 600 to 150 Ω (affects both mic and Hi-Z inputs) |
Op Amp | 1731-style operational amplifier |
Phantom Power | 48 V |
Pad | 20 dB |
Packaging Info | |
---|---|
Package Weight | 2.3 lb |
Box Dimensions (LxWxH) | 9.9 x 8.2 x 2.5" |
