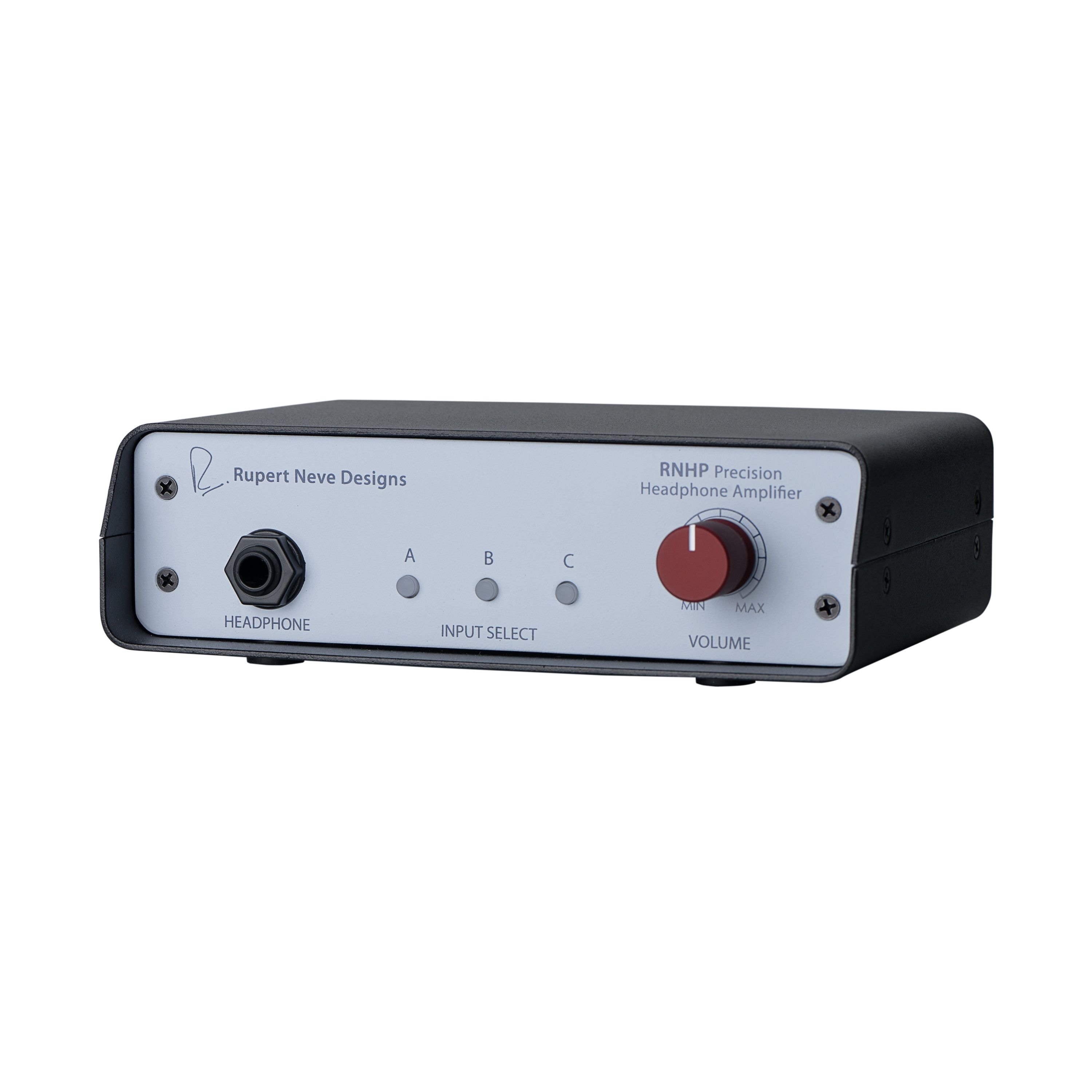

Rupert Neve RNHP Desktop Headphone Amplifier
RNHP is a state-of-the-art headphone amplifier. Now when Mr. Neve turns his attention to anything, you know it's going to be good.
OVERVIEW
The RNHP Precision Headphone Amplifier from Rupert Neve Designs is a dedicated 24V reference-quality headphone amplifier that has a specifically-calibrated +4 dBu balanced line input, an unbalanced RCA input, and a 1/8" stereo mini-jack input, housed in a rugged VESA-mountable steel chassis.
The headphone amplifier is based on the output circuit in the popular 5060 Centerpiece Desktop Mixer and has wide-open sonic performance with the ability to drive any pair of headphones up to 600 Ohms. The RNHP allows you to perform, mix, and enjoy your music with a new level of clarity. The 24V power supply is also included.
- Precision Sound
- Wide-open, extremely detailed sound quality allows you to get the most out of your headphones
- Dedicated Power
- High-power, high-headroom design can effortlessly drive high-impedance (up to 600 Ohms) headphones even during the loudest, most dynamic tracking sessions
- Reliable Translation
- The near-zero output impedance (.01 Ohm at 1 kHz), direct-coupled amplifier design provides for excellent translation with any pair of headphones
- Precision Stereo Potentiometer
- The highly damped stereo potentiometer is designed to give you precise level control and maintain perfect left-right balance
- Professional Line Input
- The calibrated +4 dBu line input is selected with the "A" switch. The combo jack accepts either XLR or TRS inputs for balanced professional devices
- RCA Input
- The unbalanced RCA input is calibrated for -10 dBV signals and is selected with the "B" switch. The RCA jack is commonly used with home stereo devices or prosumer equipment
- 1/8" Input
- Stereo 1/8" (3.5mm) input is specifically calibrated to work with mobile devices like smartphones, computers, and digital cameras
- VESA Mount
- The VESA 100 compatible mount enables you to mount the RNHP wherever it needs to be. Common mounts are pole-mount arm for mic stands, pivoting multi-arm desk mount, and wall / surface mount for securing upside-down under a table, music stand, or other studio furniture
- Steel Clamshell Chassis
- The RNHP's rugged, solid-steel chassis is built to a high industrial standard with an overhang to protect the connectors and main level control from glancing blows, as well as shock-absorbing rubberized feet
- 24 VDC Input
- The RNHP can be powered using either the included 6W power supply or a 24V, 0.25A min battery (sold separately)
SPECS
| Maximum Input Levels | "A" XLR I/P: +22.8 dBu @ 1 kHz "B" RCA I/P: +14.7 dBu @ 1 kHz "C" 1/8" (3.5 mm) I/P: +3.3 dBu @ 1 kHz |
| Output Power | Measured with typical headphones, Z=44 Ohms: 3.617 VAC RMS @ 1 kHz = 300 mW RMS 16 Ohms Typical Load: 1.933 VAC RMS @ 1 kHz = 230 mW RMS 150 Ohms Typical Load: 5.108 VAC RMS @ 1 kHz = 175 mW RMS |
| Output Impedance | .08 Ohms @ 1 kHz, 16 to 150 Ohms load, 0 dBu input |
| Frequency Response | +/- 0.2 dB from 10 Hz to 120 kHz |
| Noise | Measured with typical headphones, Z=44 Ohms, BW 22 Hz to 22 kHz "A" XLR Input: -101.9 dBV "B" RCA Input: -100.9 dBV "C" 1/8" (3.5mm) Input: -88.8 dBV |
| Power Supply Requirements | 24 VDC @ 0.25 Amp (6 watt) minimum. (use with supplied power adapter, for best output power and noise performance) (May be used with a properly configured 24 V battery as well) |
| Dimensions (W x D x H) | 6.5 x 4.6 x 1.9" (16.5 x 11.7 x 4.8 cm) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 3.05 lb |
| Box Dimensions (LxWxH) | 13.2 x 6.7 x 3.4" |
