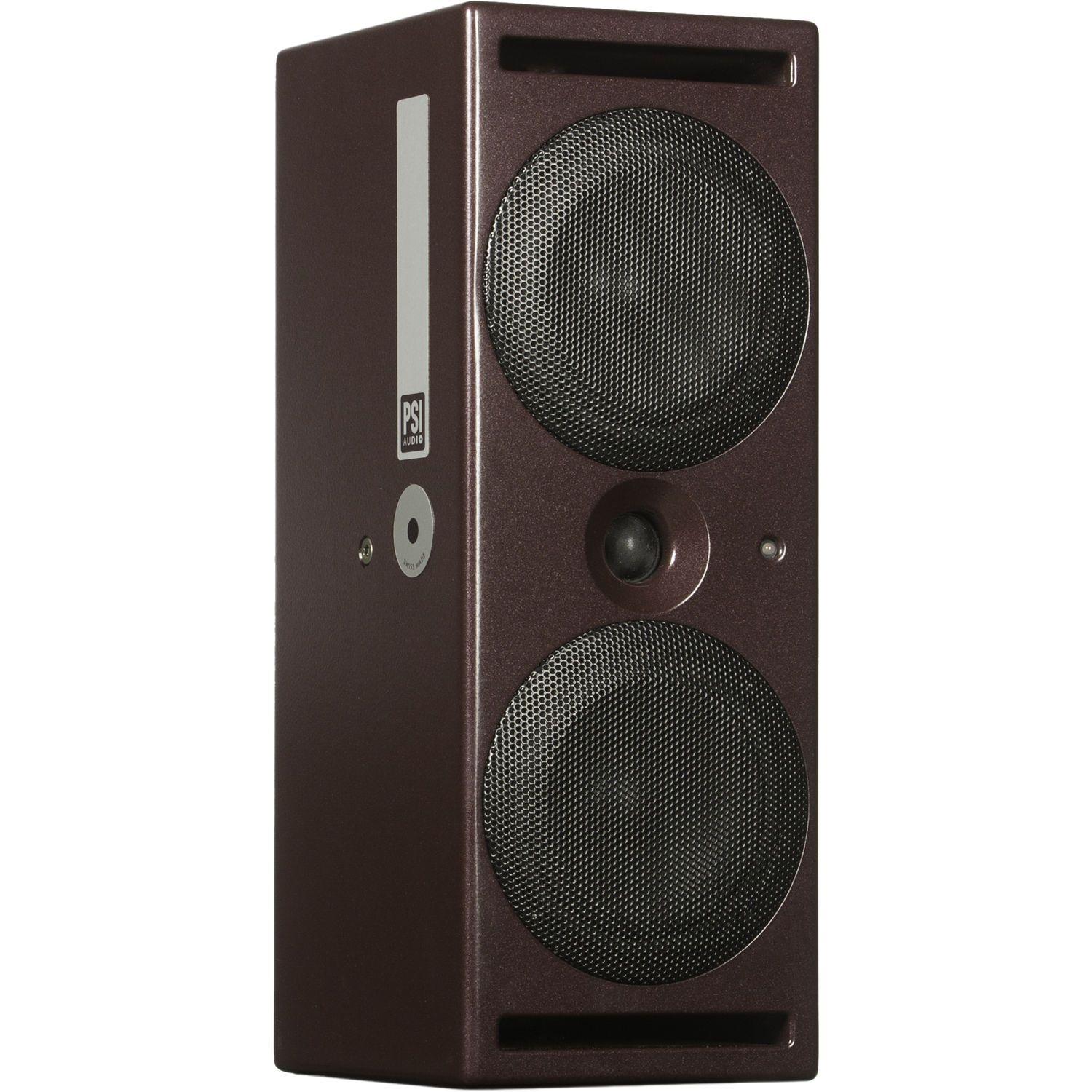

PSI Audio A214-M Center-channel Studio Monitor

OVERVIEW

PSI Audio A214-M is mainly designed as a "centre" speaker for surround monitoring applications. However, the unit may also be used as a basic component for all monitoring requirements.

The A214-M employs two woofers of 147mm and one tweeter of 100mm, for a programme power-handling of 160W. The speaker has sufficient acoustical output to satisfy the requirements of post-production and film mixing suites, as well as for other mixing applications.

PSI active loudspeakers feature CPR (Compensated Phase Response) and AOI (Adaptive Output Impedance) technology that is a hallmark of the company. A major advantage is that it allows monitor systems to be made up from different models, without any detriment to the overall phase response of the system.

The shallow height of the A214-M (less than 200mm) allows the speaker to be easily incorporated into surround installations where space is an important factor.

“The A214-M is incredibly powerful for its size.”

Terry Nelson – Realisason, France

The PSI A21 are fantastic near field / mid-field monitors.

Accurate without being clinical. "High Fidelity" without hype. Tons of power and headroom.

I got mine as a demo from Mr Dent at Zen Pro Audio and I never gave 'em back [sorry Warren].

Chris Athens - Boss Man @ Chris Athens Masters. Austin TX. U.S.A.

PSI Audio A214-M Features

• ALL PSI Monitors come with a 5 Year Warranty
• Very high SPL in a compact cabinet
• Flat frequency response
• Real symmetrical directivity
• Class G low temperature amplifier stage
• Optional metal bracket
• Protection circuits with overload indicator
• Real balanced input
• Designed for stereo and multichannel monitoring
• Magnetically shielded for use close to video monitors
• Phase and amplitude response compatible with all PSI Audio monitors
• AOI Technology
• ALG Technology
• CPR Technology
• PSC Technology

PSI Audio A214-M Specifications

• Power RMS: 120 + 40W
• Program Power: 160W
• Input Impedance: Sym, 10k Ohms
• Sensivity for 100 dB @ 1m: 0.775 V
• Signal to Noise Ratio: -96 dBA
• Continuous Max SPL@1m: 108 dB (single)
• Input Overload: 24 Vpp
• Program Max SPL@1m: 119 dB (pair)
• Response at -6dB: 53 - 23000 Hz
• Tolerances: ±2.0 dB (60Hz - 20kHz)
• Distortion THD: < 1.2% (120Hz-12kHz)
• Phase tolerances: ±45° (270Hz - 20kHz)
• Dispersion (P.N. 4 - 16 kHz) at -6 dB: 90° x 60° (H x V)
• System: 2 Way(s)
• Crossover frequency: 1.8 kHz
• Woofer's dim. Ext. / Diaphragm: 2x 5.8"
• Tweeter's dim. Ext. / Diaphragm: 1"
• Connectors: 1 x XLR F / 3P
• Signal input: 1=GND, 2=(+), 3=(-)
• Material: MDF
• Dimensions W x H x D mm: 166 x 446 x 200
• Gross / Net Weight: 11.2 / 10.2 kg
• Voltage: 115/230V (50-60Hz)
• Consumption Standby-Quiescent-Max: 1.2 - 5 - 150 W
• Mean / Max Humidity: < 75% / < 90%
• External Temperature: 5 - 40°C
