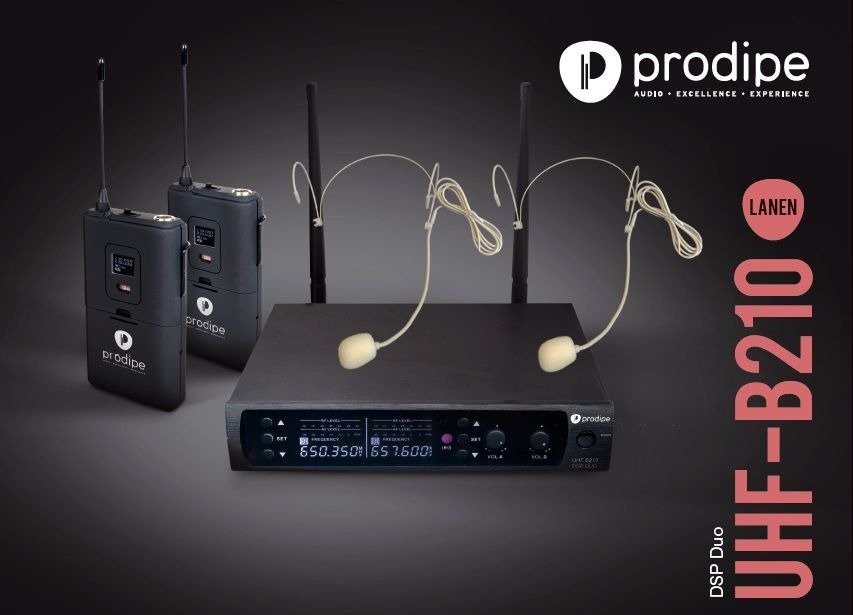

UHF B210 DSP Headset Duo The new Prodipe headset mic is specially designed for people on the move. It adapts perfectly to your morphology. Comfortable and light, it boasts a tailor-made cardioid capsule for singing and vocals. Adjustable headset mic Automatic IR search and selection of 2 x 50 available UHF frequencies Mini XLR connections on the UHF B210 DSP bodypack 1 balanced XLR output + 1 unbalanced Jack output. 8 B210 DSP systems can be used simultaneously
Microphone:
Type: Electret condenser
Directivity: Cardioid
Sensitivity: -45dB ±3dB (0dB=1V/Pa - 1KHz)
Frequency response: 100HZ - 12,5 KHz
Output impedance: 2,2KΩ (to 1KHz)
Cable lenght:1m
Main functions:
Tranmission:UHF
Bandwith: 630 - 680MHz
Frequencies: 2 x 50
Dynamic range: >90dB
Harmonic distorsion: <0.1%
Frequency response: 30Hz - 20KHz
Range: 60m
Transmitter:
Power consumption: 10mW
Modulation: FM
Power source:LR6 (AA) 1.5V ×2 (approx. 8h)
Receiver:
Power supply: AC100~240V (50-60Hz)
Voltage: 12V
S/N Ratio: >96dB
RX Sensitivity: <-94dBm
Unbalanced audio output: 6.35mm Jack
Balanced audio output: XLR
