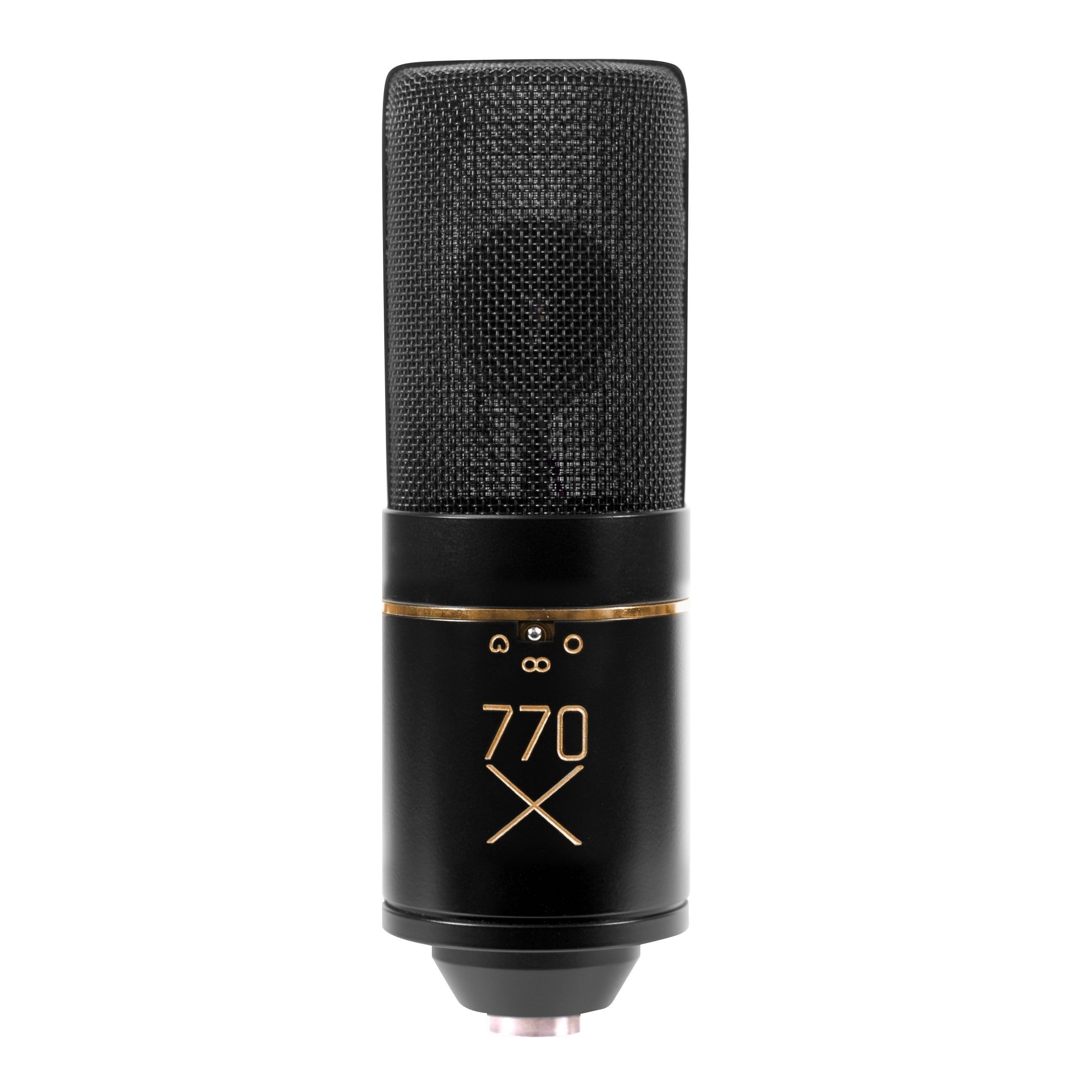

MXL 770X Multi-Pattern Condenser Microphone Package
The MXL 770X multi-pattern condenser microphone package offers recording flexibility and increased performance in an all-in-one recording bundle.
The MXL 770X multi-pattern condenser microphone package offers recording flexibility and increased performance in an all-in-one recording bundle. Building on the success and versatility of the popular MXL770, the 770X includes a larger upgraded gold-sputtered diaphragm for increased dynamic range and enhanced detail. The capsule offers 3 selectable polar patterns (Cardioid, Figure 8, and Omni-directional) optimizing the 770x for vocal, instrument, and even room recording situations. The 770X bundle includes the 770x mic, a heavy-duty shock mount with an integrated pop-filter, a 20" balanced XLR cable, and a microfiber cleaning cloth. This package is a perfect solution combining flexibility, quality, and value for the recording musician.
MXL is one of the leading manufacturers of high performance audio products for professionals and recording enthusiasts around the world. MXL's award-winning solutions are used by today's top artists, engineers, professional producers, and businesses that require sonic quality on stage or in the studio.

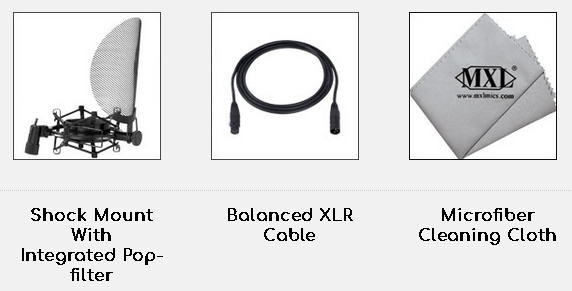

Included Accessories
- Premium condenser microphone with large 1.25" gold-sputtered diaphragm
- Stunning clarity and detail in the highs balanced with warmth on the low end
- Switchable cardioid, figure-of-eight, and omnidirectional polar patterns for versatility
- Package includes 770X microphone, shock mount with integrated pop-filter, balanced 20' XLR cable, and microfiber cleaning cloth
|
Type:
|
Pressure Gradient Multi-Pattern Condenser Mic |
|
Diaphragm:
|
6 Micron Gold-Sputtered |
|
Capsule Size:
|
32mm/1.26 in. |
|

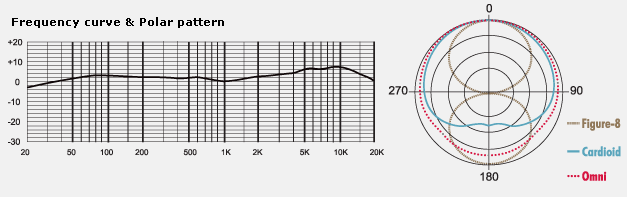

Frequency Response:
|
20 Hz - 20 kHz |
|
Polar pattern:
|
Cardioid/Figure-8/Omni |
|
Sensitivity:
|
-35 dB re 1 V/Pa |
|
Output Impedance:
|
200 ohms |
|
Attenuation Switch:
|
0 dB, -10 dB |
|
High Pass Filter:
|
6 dB/Octave @ 135 Hz |
|
Equivalent noise:
|
16 dB (A-weighted IEC 651) |
|
High Pass Filter:
|
6 dB/Octave @ 135 Hz |
|
S/N Ratio:
|
78 dB (Ref. 1 Pa A-Weighted) |
|
Max SPL for .5% THD:
|
130 dB/140 dB (0 dB, -10 dB pad) |
|
Power Requirements:
|
48V phantom power (+/- 4V) |
|
Size:
|
60mm x 185mm/2.36 in. x 7.28 in. |
|
Weight:
|
1.1 lbs/500 g |
|
Metal Finish:
|
Black with Black Grill |
