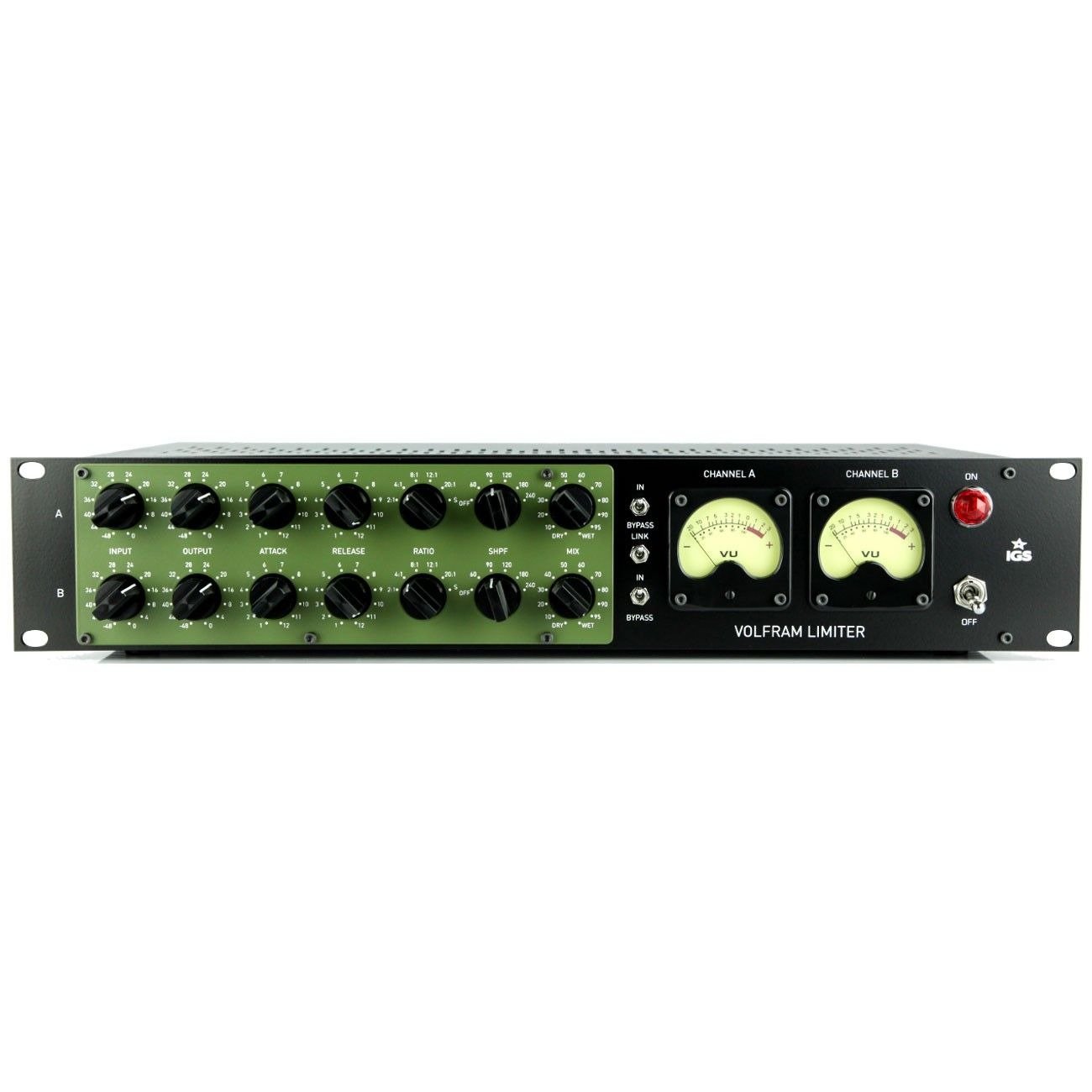

IGS Audio Volfram Limiter Stereo FET Compressor
Hàng đặt
The IGS Audio Volfram Limiter Stereo FET Compressor is a dual mono version of the legendary 1176 archetype. e core of versatility of sound of the 1176 lies in the balance between the Input, Output, and Release knobs. The 1176 is a very well known and appreciated compressor in professional recording studios all over the world. Anyone who has heard how this compressor works with vocals will never be able to manage without one. Additionally the Volfram works great with drums, synths and any other sources.
The Volfram is a 45dB transistor amplifier equipped with a remarkable limiter. Compression is achieved with the FET transistors. At extreme settings the Volfram adds some pleasant distortion to the output. All manipulators are 12-pole (6-pole for ratio, HPF) switches. It is a pure A class circuit.
- FET Compressor BF245A, matched transistor
- All stepped manipulators: Yes
- Sidechain HPF: 240, 180, 120, 90, 60, Off
- Input Impedance (balanced): 10k Ohm
- Output Impedance (balanced): 600 Ohm
- Operating level: +4dBu
- Max input level: +18dBu
- Max output level: +18dBu
- Noise level: 110dB A
- Max gain: 45 dB
- Max gain reduction: 30 dB
- Attack: 0.1 – 1ms
- Release: 0.1 - 1.5s
- Fequency response : 8Hz - 22kHz +/- 0.2dB
- Signal to Noise Ratio: >84dB
- THD: 0.12 %
- THD+N: 0.19 %
- Crosstalk: 100dB
- Power consumption : 20W
- Power supply: internal
