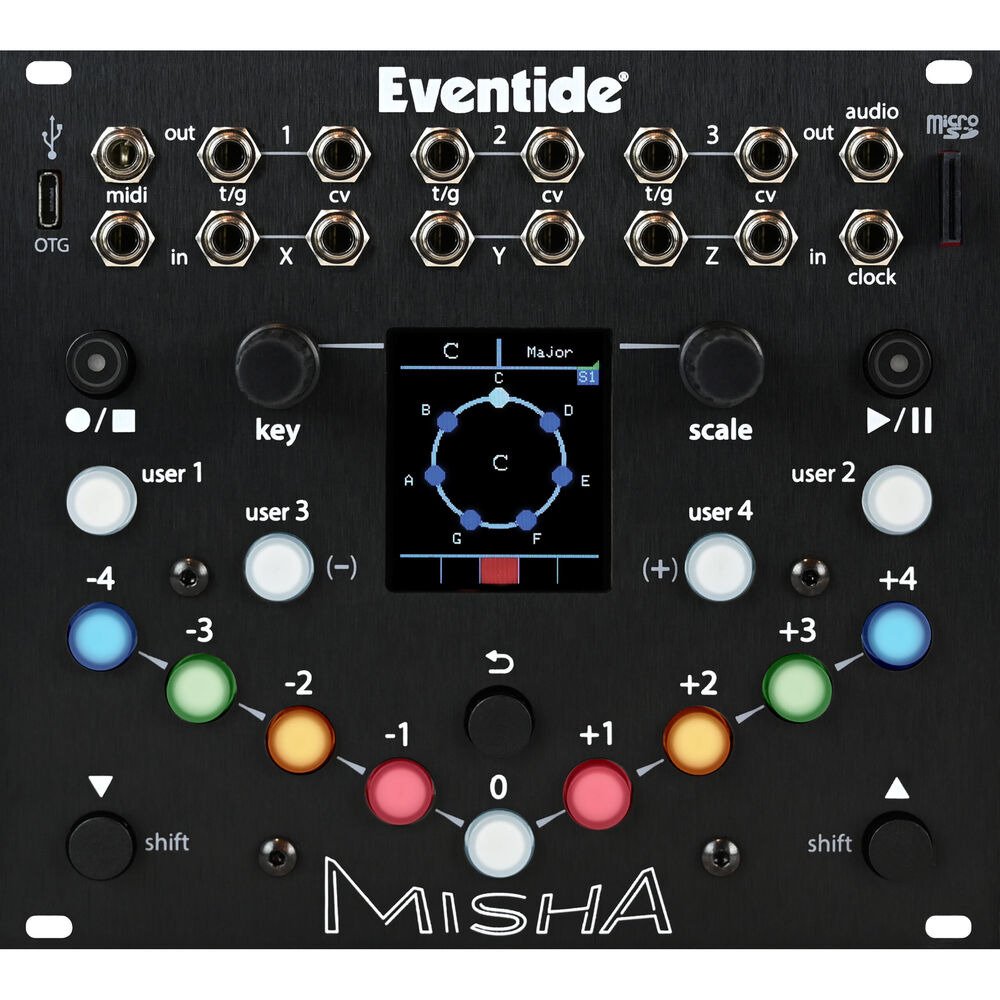

Musicians in search of an innovative instrument/sequencer will be thrilled with the Eventide Misha, a 28 HP sized Eurorack module that utilizes a unique interval-based approach to playing and creating melodies. The module is designed to be played like a keyboard instrument but creates music in a way unlike any instrument before it. Play it live or record sequences that can be modified in a multitude of ways, allowing for spontaneous creativity.
Musicians in search of an innovative instrument/sequencer will be thrilled with the Eventide Misha, a 28 HP sized Eurorack module that utilizes a unique interval-based approach to playing and creating melodies. The module is designed to be played like a keyboard instrument but creates music in a way unlike any instrument before it. Play it live or record sequences that can be modified in a multitude of ways, allowing for spontaneous creativity.
An innovative 28 HP Eurorack instrument/sequencer that utilizes a unique, interval-based approach to playing and creating melodies
Make sound three ways via MIDI, control voltage (with three independent Gate/CV pairs) or by outputting waveforms via the audio jack
External control templates for MIDI and QWERTY keyboards
100 factory scales and additional slots for up to 100 user/custom scales (Scala support)
Tone-row-based sequencer inspired by the classic compositional technique used in serial music
Comprehensive control of sequence playback to easily manipulate and expand upon your musical ideas
Create rhythmic variations using clock divisions
Four user-assignable buttons
18 user presets
CV inputs for external trigger/control sources
Clock input for syncing to external sources. User configurable PPQ settings
Audio output for internal oscillator
Polyphony via 3 CV outputs or MIDI
Micro-USB for easy firmware updates using Eventide Device Manager
microSD card for saving/loading scales and settings
Eurorack Instrument/Sequencer
Unique Way of Creating Melodies
MIDI, Control Voltage, Built-In Osc
External Control Templates: MIDI, QWERTY
100 Factory Scales + 100 User Scales
Tone-Row-Based Sequencer
18 User Presets + 4 User Buttons
3 x CV/Gate Output
Advanced Control of Sequence Playback
CV Inputs for Trigger/Control Sources
Sound Generation
Analog
Maximum Polyphony
Unlimited (Poly-Chaining Capable with Multiple Units)
Audio I/O
2x 1/8" / 3.5 mm TRS Output
MIDI I/O
1x 1/8" / 3.5 mm TRS Input (on Breakout Cable, Available Separately) 1x 1/8" / 3.5 mm TRS Output (on Breakout Cable, Available Separately)
CV/Gate I/O
3x 1/8" / 3.5 mm TRS CV/Gate/Trigger Input 3x 1/8" / 3.5 mm TRS CV/Gate/Trigger Output 3x 1/8" / 3.5 mm TRS CV/Gate/Trigger/Assignable Input 3x 1/8" / 3.5 mm TRS CV/Gate/Trigger/Assignable Output
Patch Points
3x 1/4" TRS
Eurorack Current Consumption
105 mA on +12 V Rail
Horizontal Pitch
28 HP
General
Synth Type
Eurorack Module
Sound Generation
Analog
Keyboard
No
Expression Controls
No
Number of Pads
18x Pad
Display
Main Display: Color LCD Secondary Display: LED
Sounds
Number of Song Presets
18x User
Maximum Polyphony
Unlimited (Poly-Chaining Capable with Multiple Units)
Built-In Effects
No
Performance Functions
Arpeggiator, Sequencer
Built-In Speaker
No
Synthesis
Oscillators
1
Mixer
No
Amplifiers
No
Envelopes
No
Filters
No
LFOs
Number of LFOs: 1 Waveforms: Sine, Sawtooth, Square, Triangle
Sequencing & Recording
Sequencer
Yes
Arpeggiator
Yes
Connectivity
Audio I/O
2x 1/8" / 3.5 mm TRS Stereo Output
Pedal Support
No
MIDI I/O
1x 1/8" / 3.5 mm TRS Input (on Breakout Cable, Available Separately) 1x 1/8" / 3.5 mm TRS Output (on Breakout Cable, Available Separately)
CV/Gate I/O
3x 1/8" / 3.5 mm TRS CV/Gate/Trigger Input 3x 1/8" / 3.5 mm TRS CV/Gate/Trigger Output 3x 1/8" / 3.5 mm TRS CV/Gate/Trigger/Assignable Input 3x 1/8" / 3.5 mm TRS CV/Gate/Trigger/Assignable Output
Control Voltage Level
CV In: -5 to +10 V (Selectable) CV Out: -5 to +10 V
