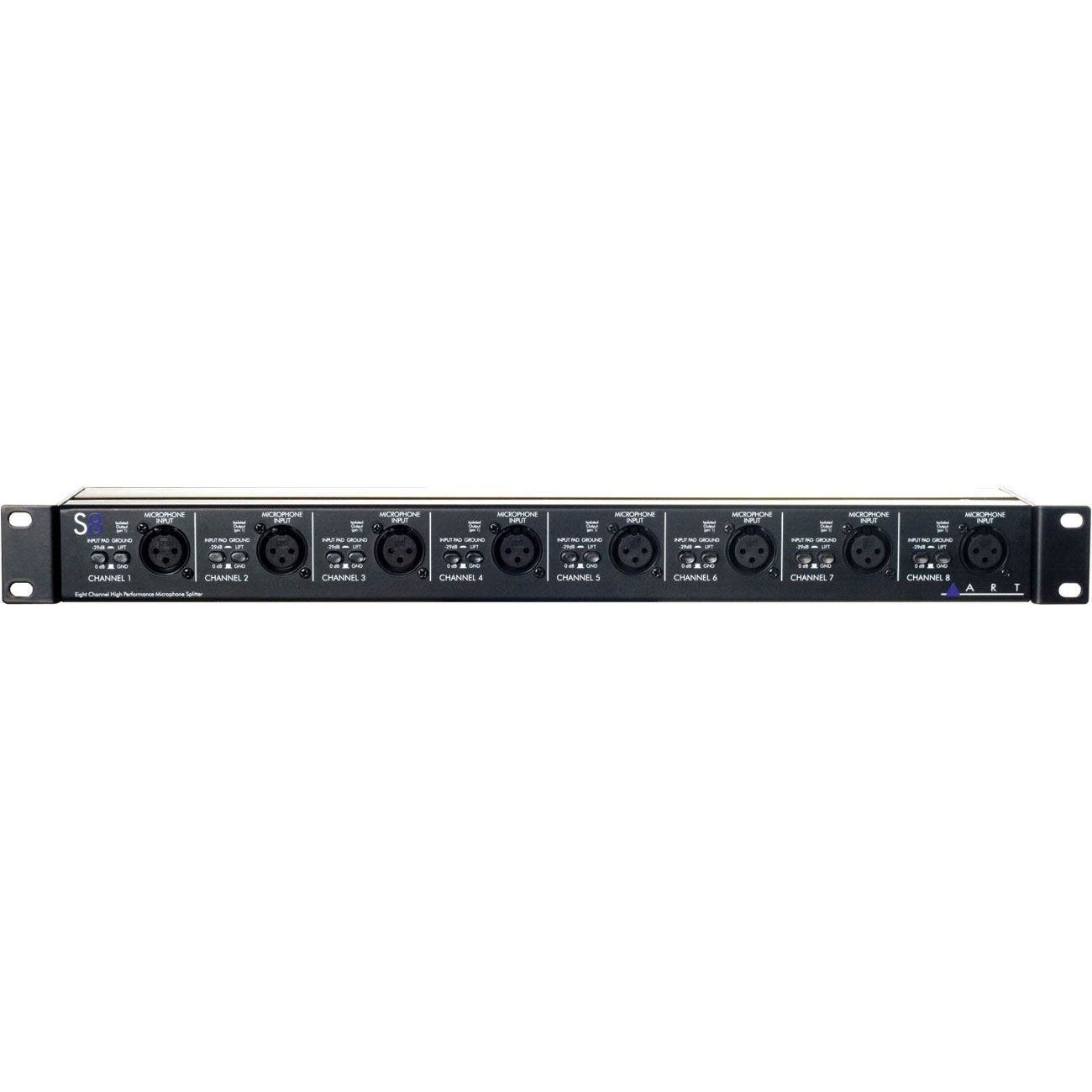

The ART S8 8-Channel Microphone Signal Splitter is ideal for sending a secondary microphone signal to a monitor mixer, recording device, etc.
The ART S8 8-Channel Microphone Signal Splitter is ideal for sending a secondary microphone signal to a monitor mixer, recording device, etc. The S8 features eight XLR inputs and 16 outputs. Eight direct outputs pass phantom power to the microphone and are intended to feed the main preamplifiers, mixer inputs or other input devices.
The eight isolated outputs are provided to feed a secondary input device, such as a recording device or monitor mixer input. A -29dB input Pad switch is provided on each channel. Ground-lift switches eliminate ground loop noise caused by connected devices.
|Inputs||XLR Microphone x8|
|Outputs||XLR Direct Output x8
XLR Transformerless Output x8
|Input Impedance||greater than 1.1kΩ @ 1kHz (Typical)|
|Maximum Input Level||-1.4dBu @ 20Hz / +3.5dBu @ 30Hz / +9.4dBu @ 50Hz|
|Output Impedance||Less Than 255Ω @ 1kHz (Typical)|
|THD & Noise||Less Than 0.1% From 45Hz To 20kHz @ -15dBu Input|
|Frequency Response||20Hz to 20kHz|
|Package Weight||4.35 lb|
|Box Dimensions (LxWxH)||20.9 x 7.0 x 3.5"|
