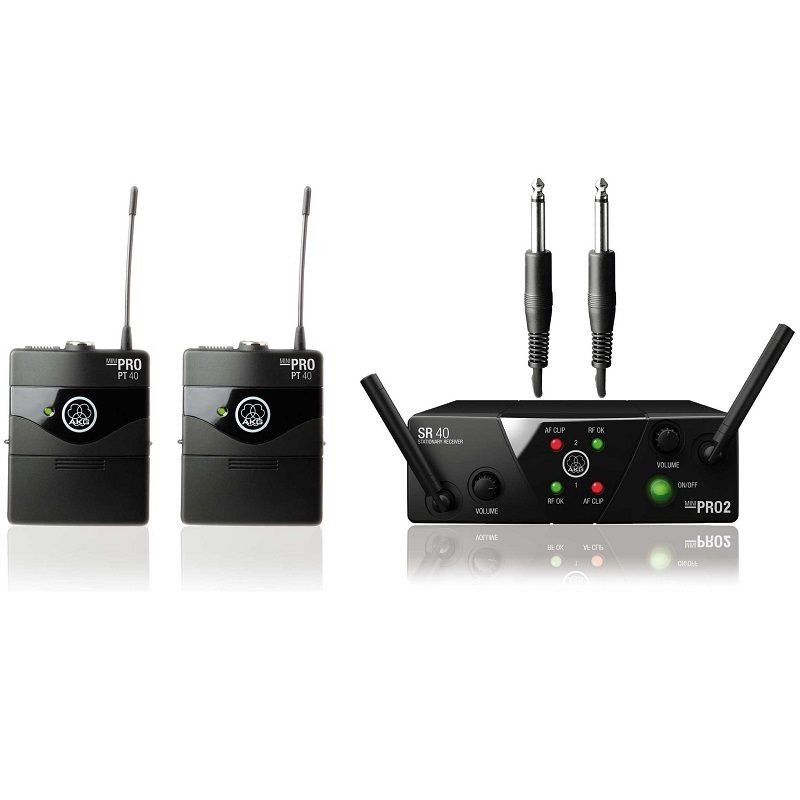

The band C & D WMS40 Mini Dual Instrumental Wireless System Set from AKG is a true plug and play wireless solution that provides clear audio sound. It can be used with guitar and bass instruments, headsets, and instrumental mics in applications to capture audio for live stage, rehearsals, hotels, gyms, and more. In addition, it has an extremely long battery life of 30 hours on a single AA battery, and saves money in day-to-day operation.
Each of the two included PT40 pocket transmitters provides a professional 3-pin mini-XLR connector that is also compatible with AKG's MicroMics from line to mic level. The WMS40 is a fixed-frequency system and the receiver has two 1/4" output connectors. Two MKG L-instrument cables and a universal power supply are also included.
SPECS
Transmitter
Frequency Bandwidth
C & D
Audio Frequency Response
40 to 20 kHz
Signal to Noise
110 dBA
Total Harmonic Distortion (THD)
0.8% @ 1 kHz
Peak Deviation
45 kHz
Nominal Deviation
15 kHz
Radio Output Power
10 mW
Transmitter Synchronization
Manual
Audio Input
3-pin mini XLR-F
Number of Selectable Frequencies
1 fixed frequency
Range
66' / 20 m
Modulation
FM
Pilot Tone
No
Encryption
No
Maximum Audio Level
12 dB
Battery
1 x LR6 AA alkaline
Operating Time
30 hours
Material of Construction
Plastic
Dimensions (L x H x W)
2.4 x 3.0 x 1.2" / 60 x 75.5 x 30 mm
Weight
Not specified by manufacturer
Receiver
Frequency Bandwidth
C & D
Audio Frequency Response
40 to 20 kHz
Signal to Noise
110 dBA
Total Harmonic Distortion
0.8% @ 1 kHz
Radio Sensitivity
-100 dBm
Channels
2
Number of Selectable Frequencies
1 fixed frequency for each channel
Frequency Selection
Fixed
Range
66' (20 m)
Modulation
FM
Encryption
No
Pilot Tone
No
Transmitter Synchronization
Not necessary
HiQnet Compatible
No
Rack Compatibility
1/3 rack size (19") Rack Height: 1 RU
Antenna
2 x fixed external antennas
Audio Output
2 x balanced TRS 1/4" (6.3 mm) female jack Balanced audio output adjustable from mic to line level Output Level at Rated Deviation: 500 mV rms
