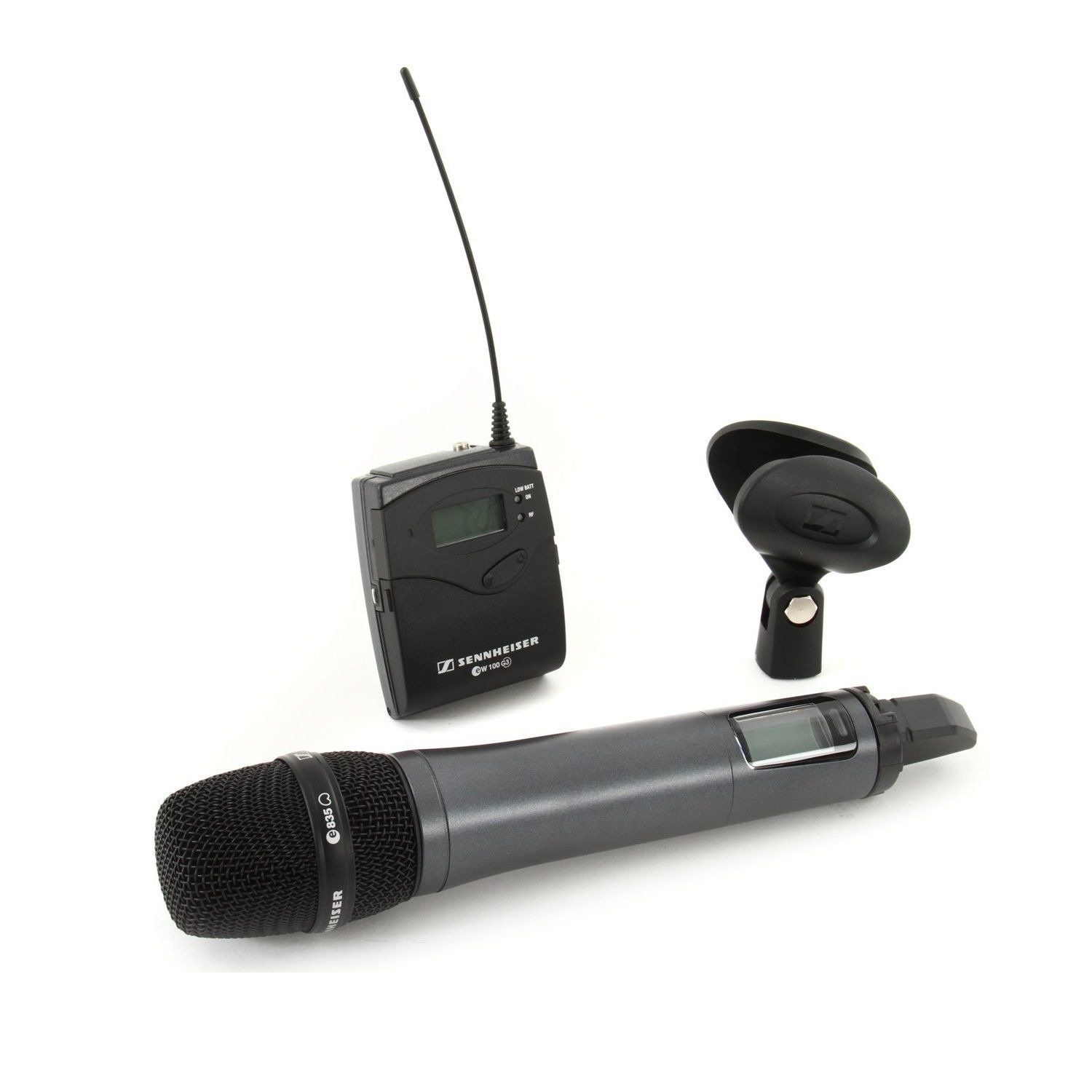

Sennheiser EW 135-p G3
A handheld system designed for field operation: the EW 135-p G3 is the perfect choice for ENG professionals.
A handheld system designed for field operation: the EW 135-p G3 is the perfect choice for ENG professionals. The rugged hand-held cardioid wireless microphone provides professional sound quality for interviews and reporting, even in unfavorable conditions. At the camera end of the wireless signal path is the portable and reliable EK 100 G3 adaptive diversity receiver.
-
Sturdy metal housing (transmitter and receiver)
-
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
-
Enhanced frequency bank system with up to 12 compatible frequencies
-
Adaptive-diversity reception for high reception quality
-
Pilot tone squelch for eliminating RF interference when transmitter is turned off
-
Automatic frequency scan feature searches for available frequencies
-
Enhanced AF frequency range
-
Increased range for audio sensitivity
-
Wireless synchronization of transmitters via infrared interface
-
User-friendly menu operation with more control options
-
Illuminated graphic display (transmitter and receiver)
-
Auto-Lock function avoids accidental changing of settings
-
HDX compander for crystal-clear sound
-
Transmitter and receiver feature battery indicatation in 4 steps
-
Compatible with all evolution Wireless mic capsules
-
Contacts for recharging BA 2015 accupack directly in the transmitter or receiver
-
Wide range of accessories adapts the system to any requirement
-
- Frequency range
-
516...558 MHz626...668 MHz734...776 MHz823...865 MHz566...608 MHz780...822 MHz / Germany823...865 MHz / Germany516...558 MHz626...668 MHz734...776 MHz566...608 MHz780...822 MHz606...648 MHz
-
- Dimensions
-
Receiver:82 x 64 x 24 mm
-
- Dimensions
-
Transmitter:Ø 50 x 265 mm
-
- Frequency response (Microphone)
-
80 - 18000 Hz
-
- Compander
-
HDX
-
- Audio-XLR connector
-
3,5 mm jack
-
- Presets
-
12
-
- Microphone
-
dynamic
-
- Sound pressure level (SPL)
-
154 dB(SPL) max.
-
- THD, total harmonic distortion
-
< 0,9 %
-
- Weight
-
Receiver:~ 160 g
-
- Weight
-
Transmitter:450 g
-
- AF sensitivity
-
2,1 mV/Pa
-
- Signal-to-noise ratio
-
> 110 dB(A)
-
- RF output power
-
30 mW
-
- Transmission/receiving frequencies
-
1680
-
- Switching bandwidth
-
42 Mhz
-
- Peak deviation
-
+/- 48 kHz
-
- In compliance with
-
ETS 300422, ETS 300445, CE, FCC
-
- Operating time
-
Transmitter:typ. 8 h
-
- Audio output level (unbalanced)
-
+10 dBu max
