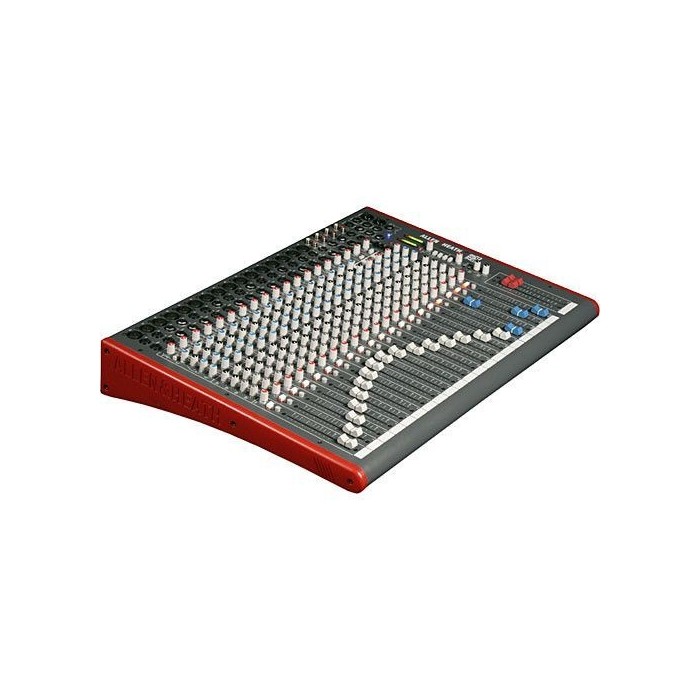

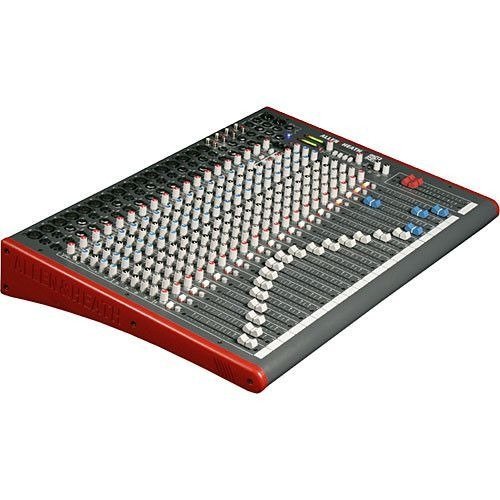

Allen & Heath ZED 24 24-Channel Mixer
The Allen & Heath ZED-24 live mixer gives you the quality you've come to expect from Allen & Heath in a compact 24-channel configuration. DuoPre preamps represent A & H's latest technology, while flexible 3-band EQs on each mono channel feature tailored frequency and response. The ZED-24 gives you a variety of great input options, as well as easy USB connectivity for computer integration. Allen & Heath have made a live mixer that lives up to their stellar reputation with the versatile ZED-24, at a great price.
The Allen & Heath ZED-24 is a small-format, 24-channel analog mixer offering versatile I/O and a user-friendly workflow for use in home and project studio recording, houses of worship, and live sound reinforcement. The 16 mono channels feature Neutrik XLR mic and 1/4" line inputs, DuoPre preamps with phantom power and bountiful gain, 1/4" insert points, and 3-band EQ, while the four stereo channels have 1/4" inputs and 2-band EQ. All channels are equipped with long-throw 100mm faders, solo and mute buttons, and independent aux send knobs.
The four aux sends are ideal for routing to floor monitors and outboard time-based effects. A USB 1.1 port delivers 2-channel send and return capabilities via a Mac or Windows computer. There are stereo and mono main outputs in addition to alt and headphone outputs, and dual 12-segment LED meters that clearly indicate your master output level. Patch additional stereo sources into the RCA stereo return and 2-track inputs, then route them to the stereo bus, or mix them into the stereo channels. The stereo RCA output is handy for recording your mix to an external device such as a cassette deck or computer soundcard.
16 Mono Inputs
Four Stereo Inputs
Flexible EQ Section
Inserts
Independent Aux Sends
USB Connection
Flexible Outputs
| Total # Of Inputs | 24 |
| Mic/Line Inputs | 16 x 3-Pin XLR Female Mic Inputs (Balanced) 16 x 1/4" TRS Line Inputs (Balanced/Unbalanced) |
| Stereo Line Inputs | 8 x 1/4" TRS Line Inputs (Four Stereo Pairs, Balanced/Unbalanced) |
| In-Line Inputs/Returns | No |
| Aux Sends | 4 x 1/4" TRS Mono (Balanced) |
| Aux Returns | 2 x RCA Coaxial Line Inputs (One Stereo Pair, Unbalanced) |
| Inserts | 16 x 1/4" TRS on Mono Channels (Unbalanced) 2 x 1/4" TRS on Stereo Bus (Unbalanced) |
| BUS (Group) Outputs | No |
| Main Outputs | 2 x 3-Pin XLR Male (One Stereo Pair, Balanced) 1 x 1/4" TRS Mono (Balanced) |
| Monitor Outputs | 2 x RCA Coaxial Alt Outputs (One Stereo Pair, Unbalanced) 1 x 1/4" TRS Stereo Headphone Output (Unbalanced) 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output (Unbalanced) |
| 2-Track I/O | 2 x RCA Coaxial 2-Track Input (One Stereo Pair, Unbalanced) 2 x RCA Coaxial 2-Track Output (One Stereo Pair, Unbalanced) |
| ALT I/O | 1 x USB Type-B (2-Channel Send/Return) |
| EQ Section | High (All Channels): ±15 dB at 12 kHz Mid (Mono Channels): ±15 dB at Selectable Frequency (120 Hz to 4 kHz, Sweepable) Low (All Channels): ±15 dB at 80 Hz |
| High-Pass Filter | 12 dB/Octave at 100 Hz, Switchable |
| Solo/Mute | Mute and PFL Solo |
| Channel Level Control | 100 mm Fader |
| Trim/Gain Control | Rotary Control |
| Gain Range | Mic Inputs: -6 to +63 dB Line Inputs: -10 to +26 dB Stereo Inputs: -∞ to +10 dB Faders: -∞ to +10 dB Returns: -∞ to +10 dB Aux Masters: -∞ to +6 dB Alt Out: -∞ to +6 dB |
| Phantom Power | +48 VDC, Globally Selectable |
| Metering | Dual 12-Segment LEDs Peak LED per Channel |
| USB Specification | USB 1.1 Compliant |
| Bit Depth | USB: 16-Bit |
| Sample Rates | USB: 32 kHz, 44.1 kHz, or 48 kHz |
| Nominal Input Level | Mic Input: -63 to +6 dBu Mono Line Input: -26 to +10 dBu Stereo Line Input: 0 dBu (+10 dB with Control Off) Insert Point: 0 dBu |
| Maximum Input Level | Mic Input: +17 dBu Mono Line Input: +30 dBu Insert Point: +21 dBu |
| Nominal Output Level | 0 dBu |
| Maximum Output Level | +21 dBu |
| Frequency Response | Mic In to Main Out (30 dB Gain): 20 Hz to 20 kHz (+0.5 dB, -1 dB) Line In to Main Out (0 dB Gain): 10 Hz to 30 kHz (+0.5 dB, -1 dB) Stereo In to Main Out: 10 Hz to 30 kHz (+0.5 dB, -1 dB) |
| THD + N | Mic In to Main Out (0 dB Gain, 1 kHz, +10 dBu Out): 0.004% Mic In to Main Out (30 dB Gain, 1 kHz): 0.014% Line In to Main Out (0 dB Gain, 1 kHz, 0 dBu): 0.005% Stereo In to Main Out (0 dB Gain, 1 kHz, +10 dBu): 0.003% |
| Headroom | Analog Headroom from Nominal (0 VU): 21 dB USB In and Out Headroom from Nominal (0 VU): 14 dB |
| Noise | Mic Pre EIN: -127 dBu (Maximum Gain, 150-Ohm Input, 22 Hz to 22 kHz) Main Out: -84 dBu (L/R Faders at 0, 22 Hz to 22 kHz) |
| Power Consumption | 40 W Maximum |
| Power Requirements | 100 to 240 VAC, 47 to 63 Hz |
| Dimensions (W x H x D) | 25.4 x 3.9 x 18.3" / 64.5 x 9.8 x 46.5 cm |
| Weight | 23.1 lb / 10.5 kg |
| Package Weight | 31.4 lb |
| Box Dimensions (LxWxH) | 31 x 25 x 10" |
